Hardware Installation and Reference Guide
Table 1-1
Front view description
No.
1

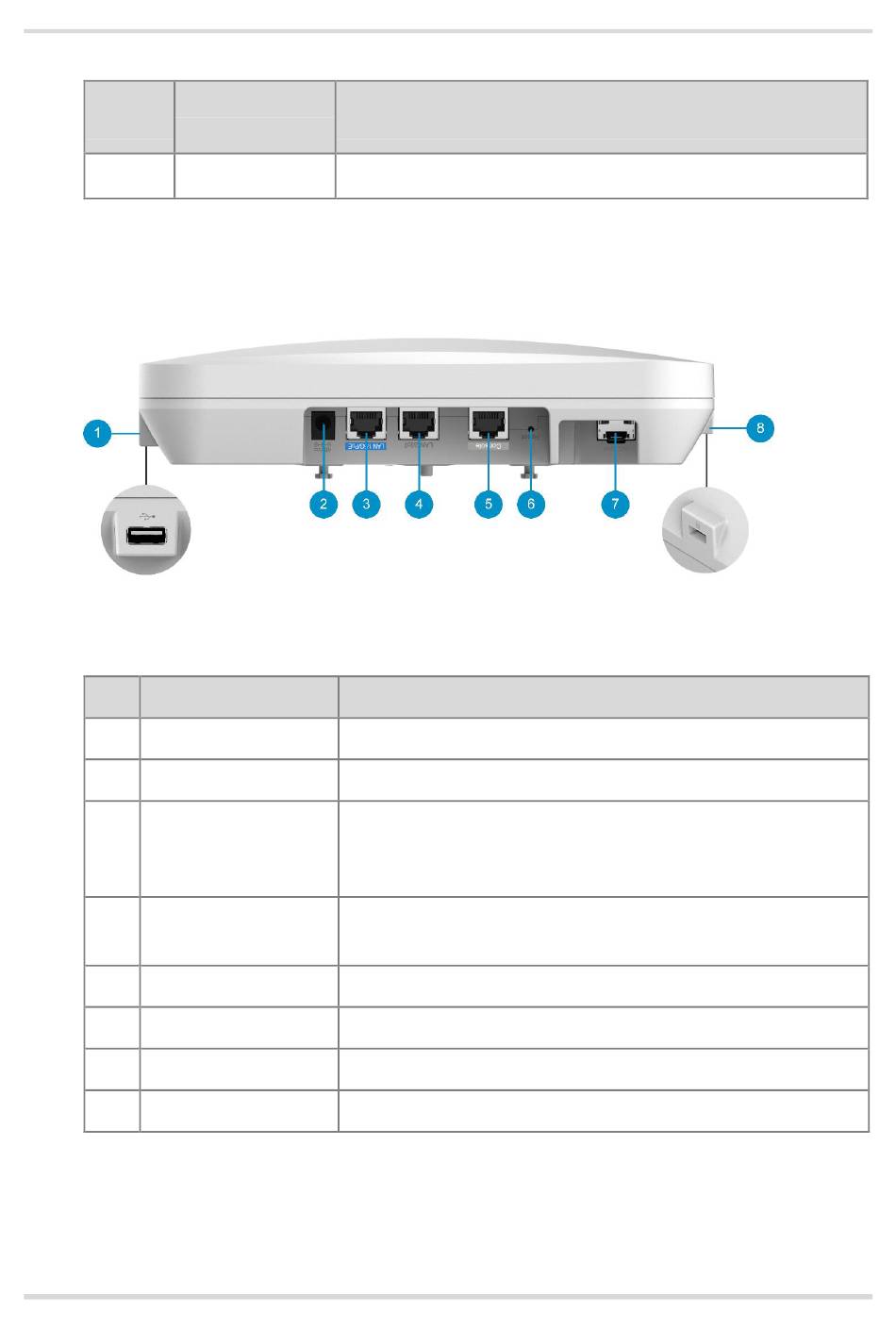

Figure 1-4
Side view
Table 1-2
Button and port description
No.
Button and Port
1
USB port
2
DC power port
3
LAN1/PoE copper port
4
LAN2/IoT copper port
5
Console port
6
Reset key
7
5G SFP
8
Security lock hole
Button
and
Function Description
Port
Indicator
Indicates the system working status.
Function Description
Connected to USB flash drive.
Connected to 54 V DC power adapter to supply power to APs.
Uplinked to service port for wired Ethernet connection and service data
transmission, supporting PoE in compliance with IEEE 802.3af, 802.3at
and 802.3bt.
Downlinked to service port for wired Ethernet connection and service
data transmission, providing power to IoT units (48 V/12.95 W).
Connected to serial port cable management device.
Restarts the device or restores the factory settings.
Uplinked to service port for service data transmission.
Connected to security lock.
3
Product Overview
