○ If cable terminals are fixed with threads, the screws or nuts should be firmly fixed, and anti-loosening
measures should be taken, as shown in

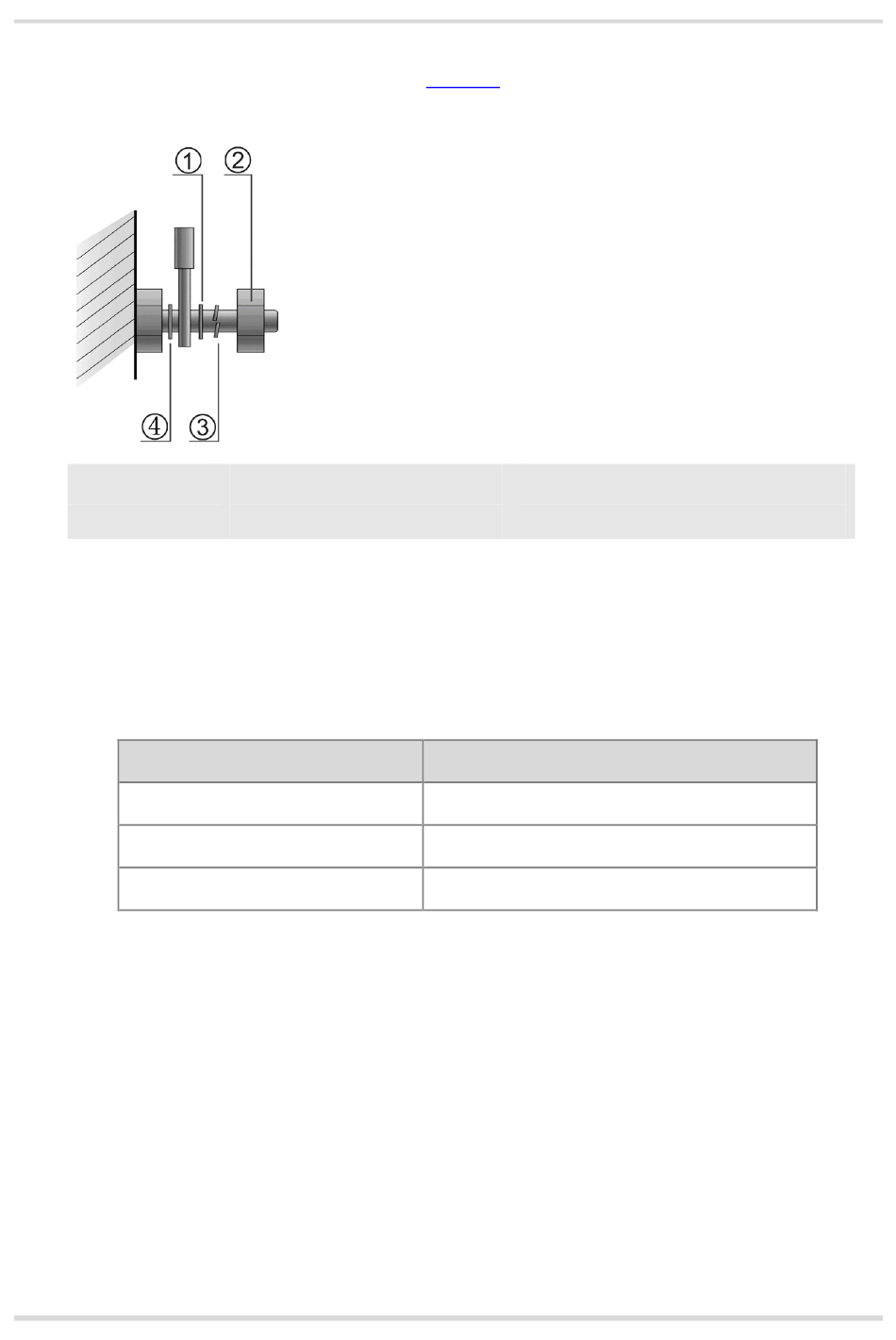

Figure 7-7 Cable fixing diagram
Note:
○ For stiff power cords, secure them near the connector to prevent stress on the connector and on the
cable.
○ Do not use self-tapping screws to fasten the terminals.
○
Bind the power cords of the same type and same direction into a bundle, and the cords in the bundle
should be clean and straight.
○
Bind the cords with buckles according to the following table.
Cable Bundle Diameter (mm)
10
10-30
30
○
Cables or bundles cannot be knotted.
○
When crimping the cord end terminals (for example, circuit breaker), the metal part of the terminal should
not be exposed outside the terminal block.
Figure
① Flat washer
② Nut
III
7-7.
③ Spring washer
④ Flat washer
Bundle Interval (mm)
80-150
150-200
200-300
