EVAL-M7-HVMOS-INV user guide
Evaluation power board with M7 connector

System design

3 System design
3.1

Schematics

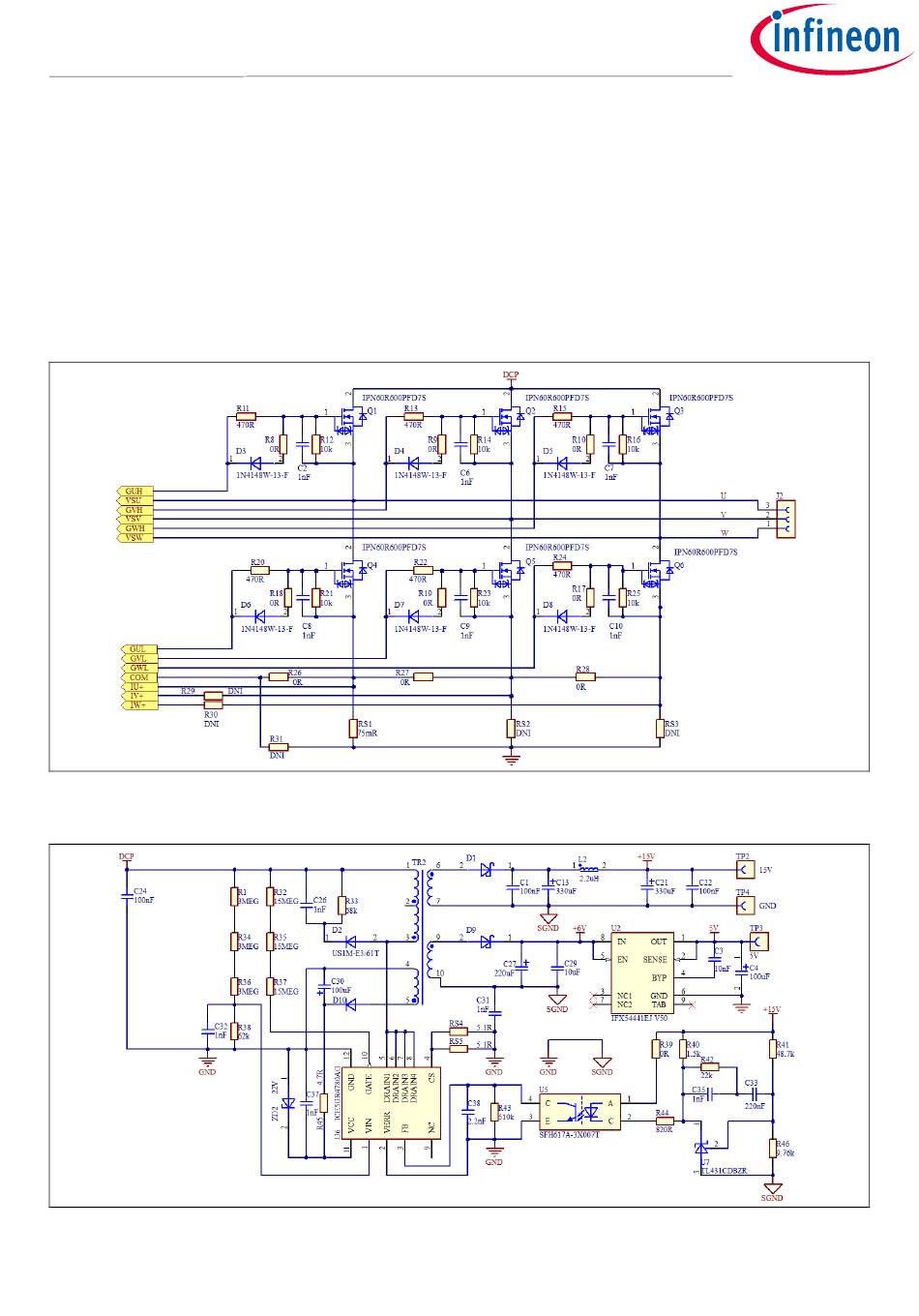

The schematics of EVAL-M7-HVMOS-INV power board include EMI filter, rectifier-bridge, inverter section, and
auxiliary power supply. Figure 15 shows the inverter section schematics of the EVAL-M7-HVMOS-INV. Figure 16
depicts the auxiliary power supply schematics. The power supply has two outputs: 15 V and 5 V.
The complete schematic diagrams are available on the download section of the Infineon homepage. A log-in is
required to download this material.
Figure 15 Inverter section schematics
Figure 16 Auxiliary power supply
