Other Breakpoints

For SHARC DSPs, the Other page of the Data Breakpoints dialog box
permits the specification of hardware breakpoints triggered by access to
PM data, IO, or the external port.

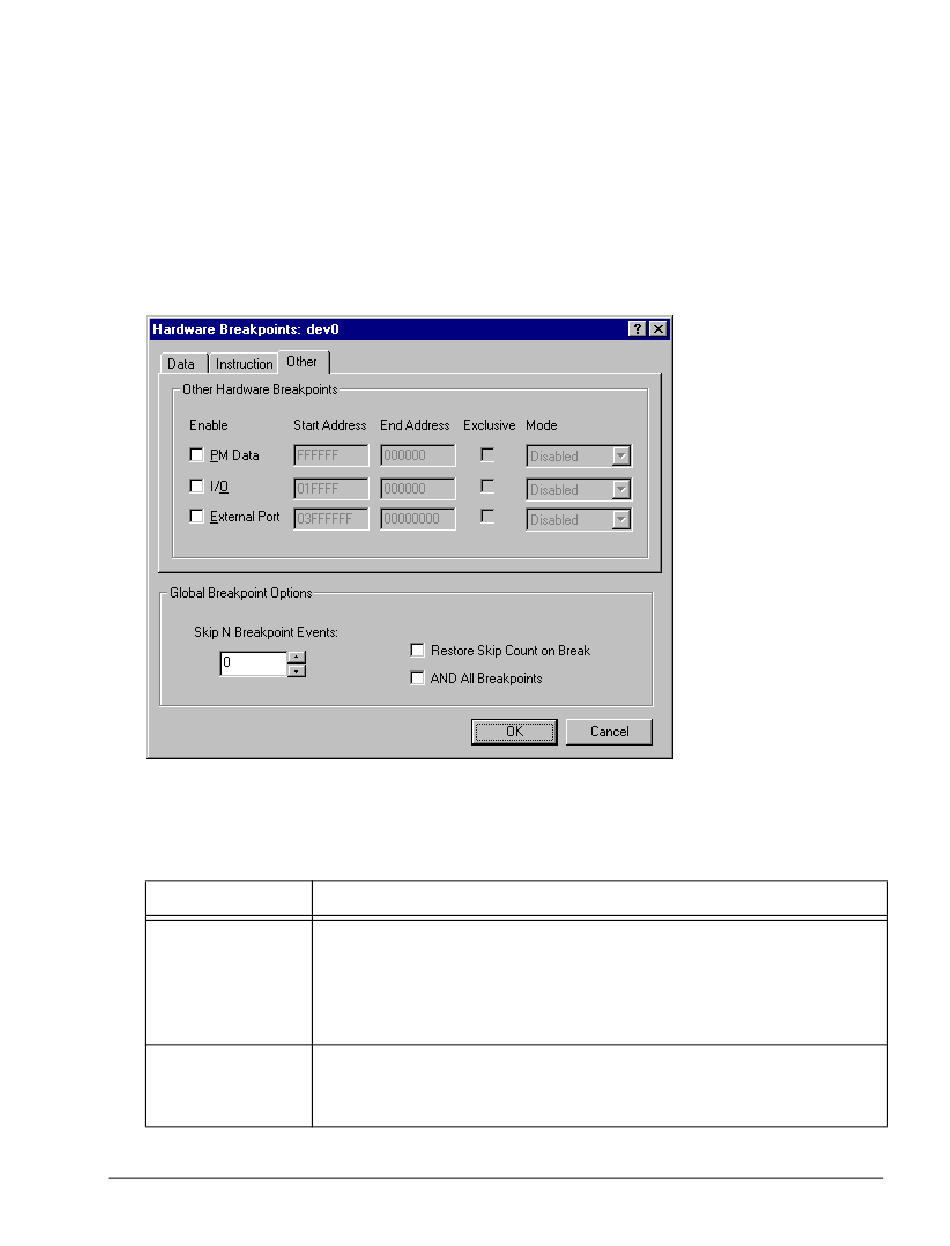

Figure 2-5. Other Page of Hardware Breakpoints Dialog Box
Table 2-10. Other Hardware Breakpoint Options
Option
PM DataEvents
I/O
ADSP-21161N EZ-KIT Lite Evaluation System Manual
Description
Enables PM data breakpoints. PM data breakpoints are similar to data
breakpoints (Data page), except accesses that trigger a PM breakpoint are
made by DAG2 or the PM() modifier. Like data breakpoints, PM data
breakpoints cause a break on accesses to internal memory, IOP registers,
the external port (EP), and multiprocessor memory space (MMS).
Enables IO breakpoints. IO breakpoints are triggered by accesses made on
the IO Address Bus. Use an IO breakpoint to break on accesses made dur-
ing DMA transfers, MMS accesses, and Host accesses.
Using EZ-KIT Lite
2-17
