9. After the desired parameters are set, press the green
Measure button to begin collecting data. Press the red
Abort Measurement button at any time to finish collecting
data.
10. The measurement is a relative impedance measurement
that takes into account isolation components:
EVAL-AD5940 Evaluation Kit User Guide

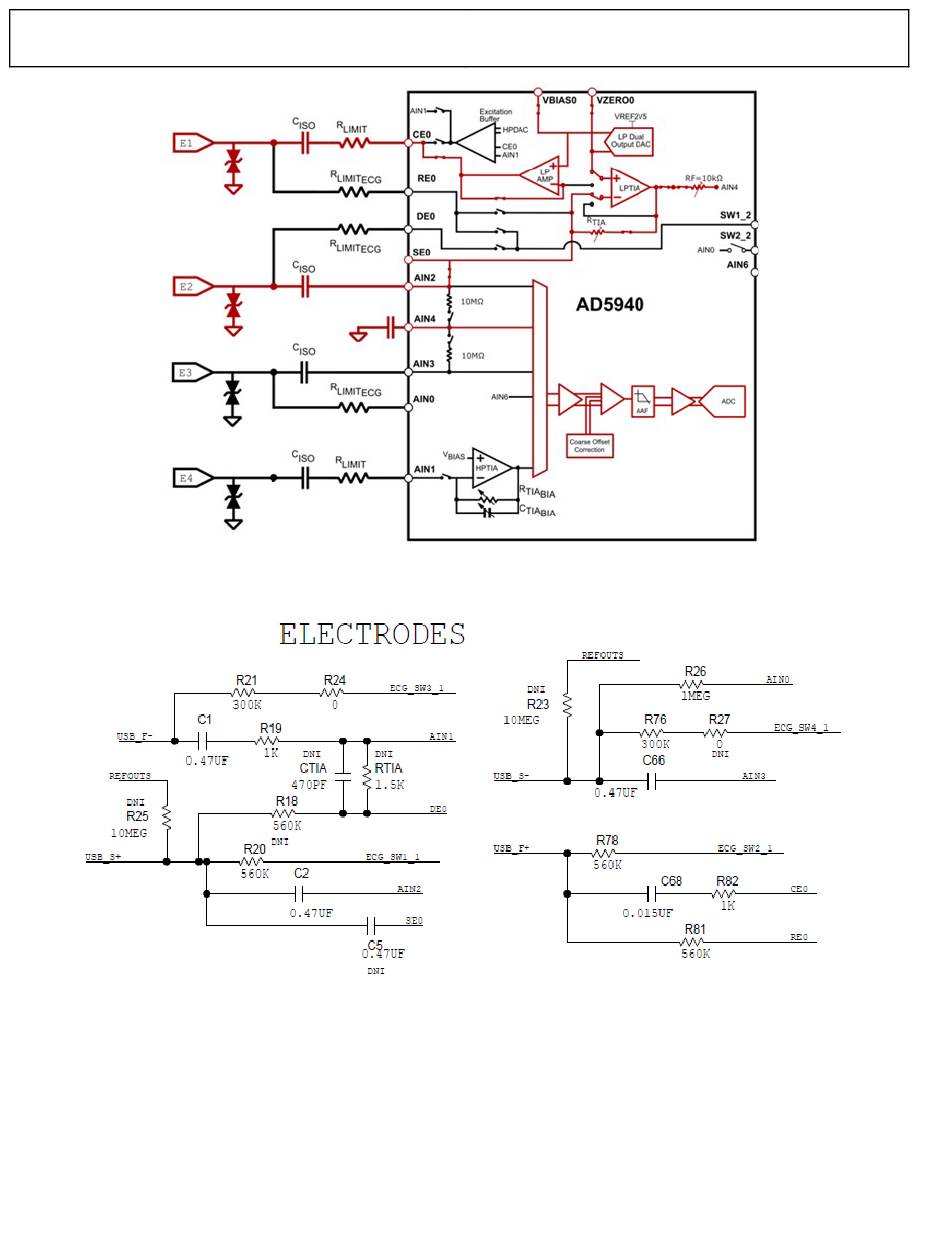

Figure 26. EDA Measurement Block Diagram
Figure 27. Bioelectric Electrodes Schematic
11. When the software has finished collecting data, the
Rev. 0 | Page 12 of 27
•
CE0 to F+ = R
= R82 = 1 kΩ and C
LIMIT
0.015 µF
•
S + to AIN2 = C = C2 = 0.47 µF
ISO
•
At 100 Hz these components have a very small impact
(equivalent Z = ~1 kΩ)on overall impedance of 4.22 MΩ
resulting graph should look similar to the one in Figure 28
= C68 =
ISO
