Add R18 and R19. Calculate R18 and R19 using the
following equation:
V = 1.0 V (1 + R18/R19) + R18
OUT
For further clarity, refer to EVAL-AD5940ARDZ.pdf, located in
the AD5940Firmware&Documentation folder.

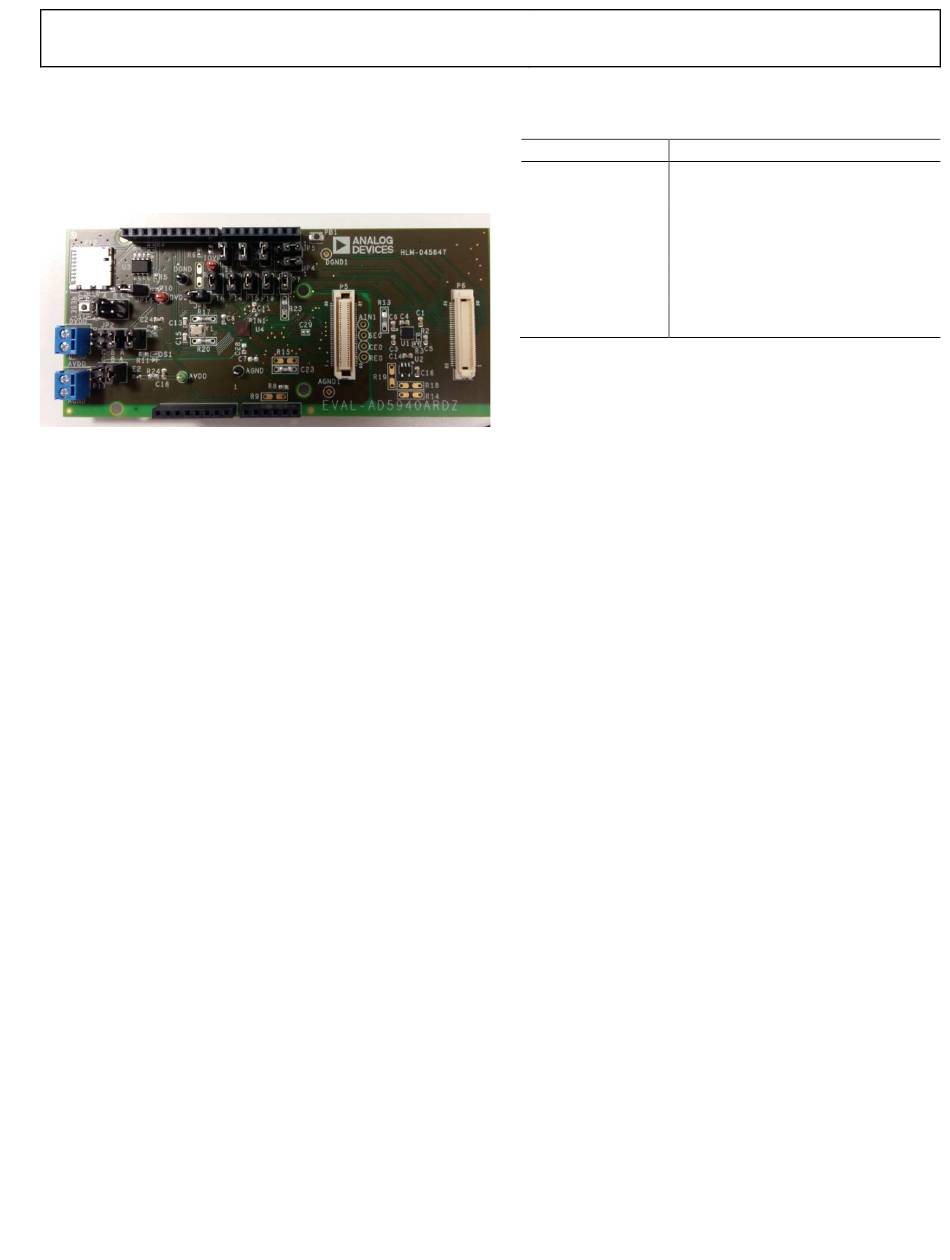

Figure 12. EVAL-AD5940ARDZ
Default Jumpers
The default jumper settings are shown in Figure 12. Both DVDD
and AVDD are powered by 3.3 V from the Arduino shield (JP2
and JP3 in Position C).
JP1 controls the reset signal and has two jumpers in Position A
and Position C, respectively. Position A connects the
reset pin to the reset button. Position C connects the
reset pin to a general purpose input/output (GPIO) on
the ADuCM3029 microcontroller.
Table 1. Default Jumper Descriptions
Jumper
JP4, JP5
JP14
JP10
JP6
P7, P8, P9, P10, P11,
P14, P15, and P16

AD5940-BIOELECTRIC

The AD5940-BioElectric
bioimpedance and biopotential measurements. The board
contains the AD8233 heart rate monitor, isolation capacitors
and limit resistors necessary for bioelectric measurements. For
further details, refer to AN-1557 in the Application Notes
folder.

AD5940SENS2

AD5940Sens2
amperometric, and potentiostat measurements. The board
AD5940 contains two resistor capacitor (RC) networks (Test 1 and Test 2) to
AD5940 verify measurement sequences. There is also a USB connector
that provides an option to connect custom cable to the board. By
default the board is configured to measure Test 1. Details on the
supported measurements can be found in AN-1563.
Rev. 0 | Page 5 of 27
Description
Enable the low dropouts (LDOs); By
default, the LDOs are disabled
Enable I C electrically erasable
2
programmable read-only memory
(EEPROM)
Powers LED
Power IOVDD
Connect AD5940 GPIOs to Arduino
header and to the
board is designed specifically for
is designed specifically for 2- and 3-wire impedance,
UG-1292
ADuCM3029
