DIRECT REGISTER READ AND WRITE

It is possible to read and write the content of each register using
the Register R/W tab as indicated in the GUI. Click READ
ALL to update the contents of each register in the GUI. A
single register read or write can be done using the controls on
the right side of the Register R/W tab of the GUI. Type the I
sub address in the Sub Address for READ or WRITE (0x00)
2 C

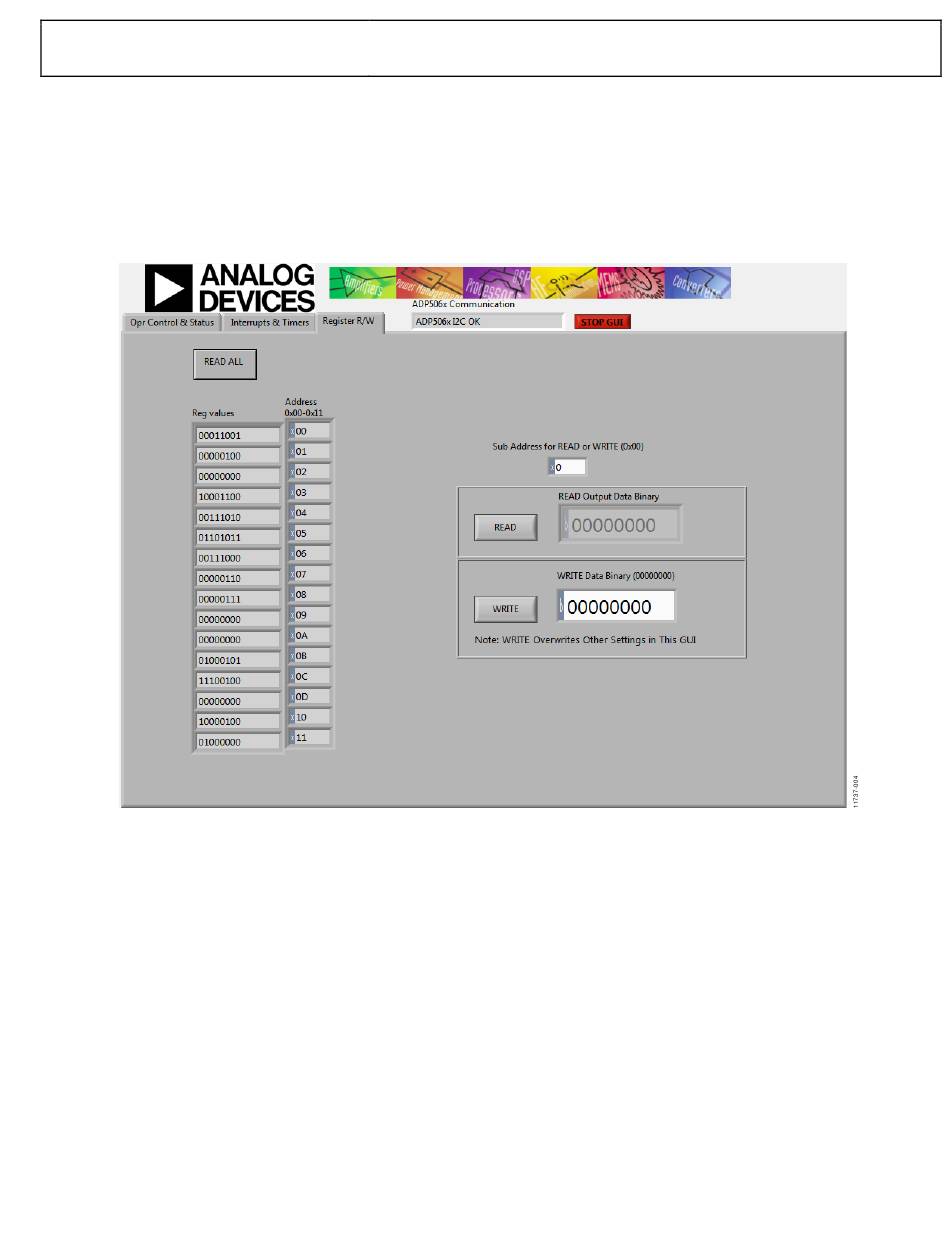

Figure 4. ADP5063 Evaluation Software GUI, Register R/W Tab
Rev. 0 | Page 5 of 12
box, and then press the Enter key. Click READ to read the
binary data, or click WRITE to write the binary data. Type the
binary data for an I 2 C write, and then press the Enter key. Note
that some registers, such as Register 0x00 and Register 0x01, are
read only registers and cannot be overwritten.
