DIRECT REGISTER READ AND WRITE

It is possible to read and write the content of each register using
the Register R/W tab as indicated in the GUI. Click READ
ALL to update the contents of each register in the GUI. A single
register read or write can be done using the controls on the
right side of the Register R/W tab of the GUI. Type the I

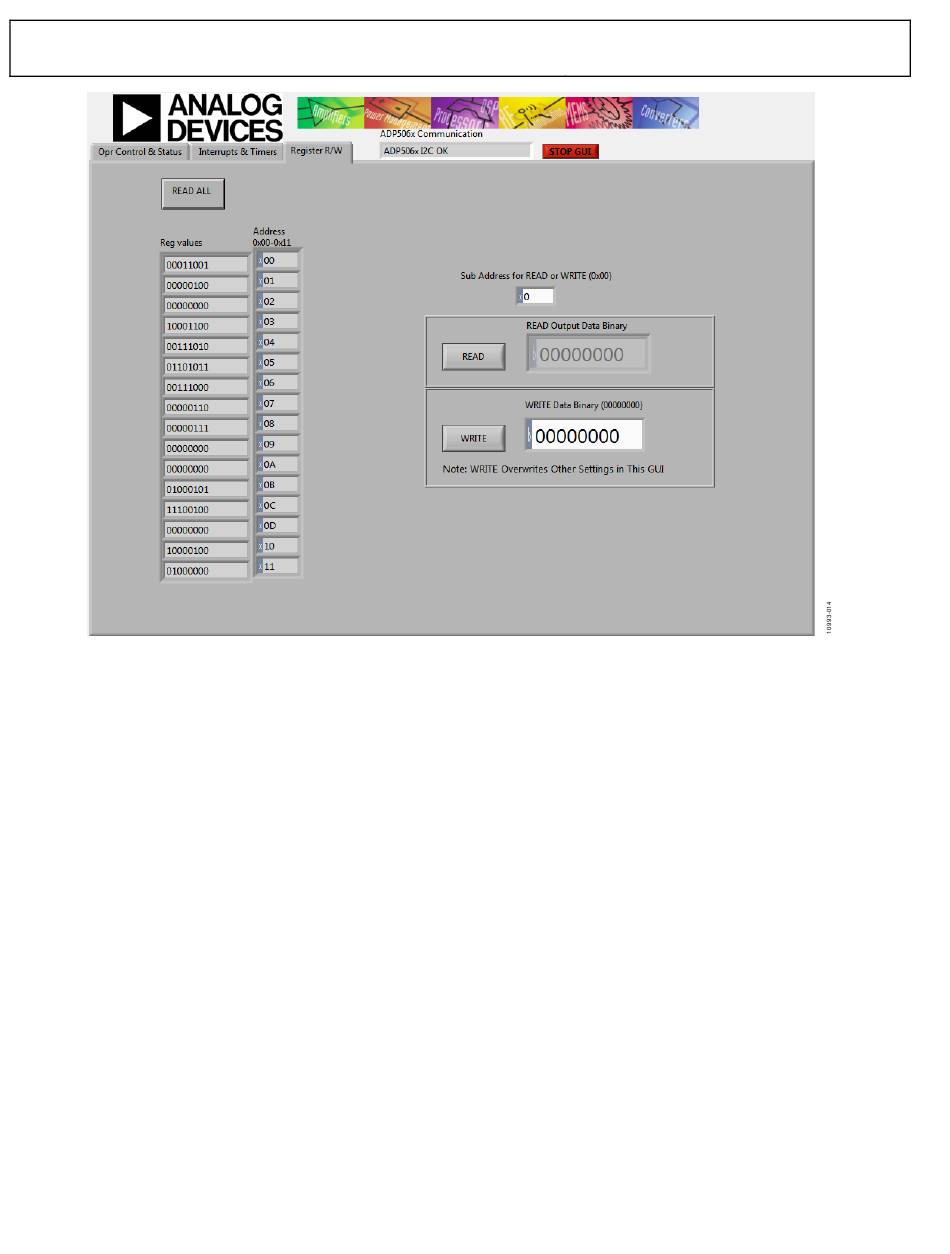

Figure 4. ADP5062 Evaluation Software GUI, Register R/W Tab
2
C sub
Rev. 0 | Page 6 of 15
Evaluation Board User Guide
address in the Sub Address for READ and WRITE (0x00) box,
and then press ENTER. Click READ to read the binary data, or
click WRITE to write the binary data. Type the binary data for
2
an I C write, and then press ENTER. Note that some registers,
such as Register 0x00 and Register 0x01, are read only registers
and cannot be overwritten.
