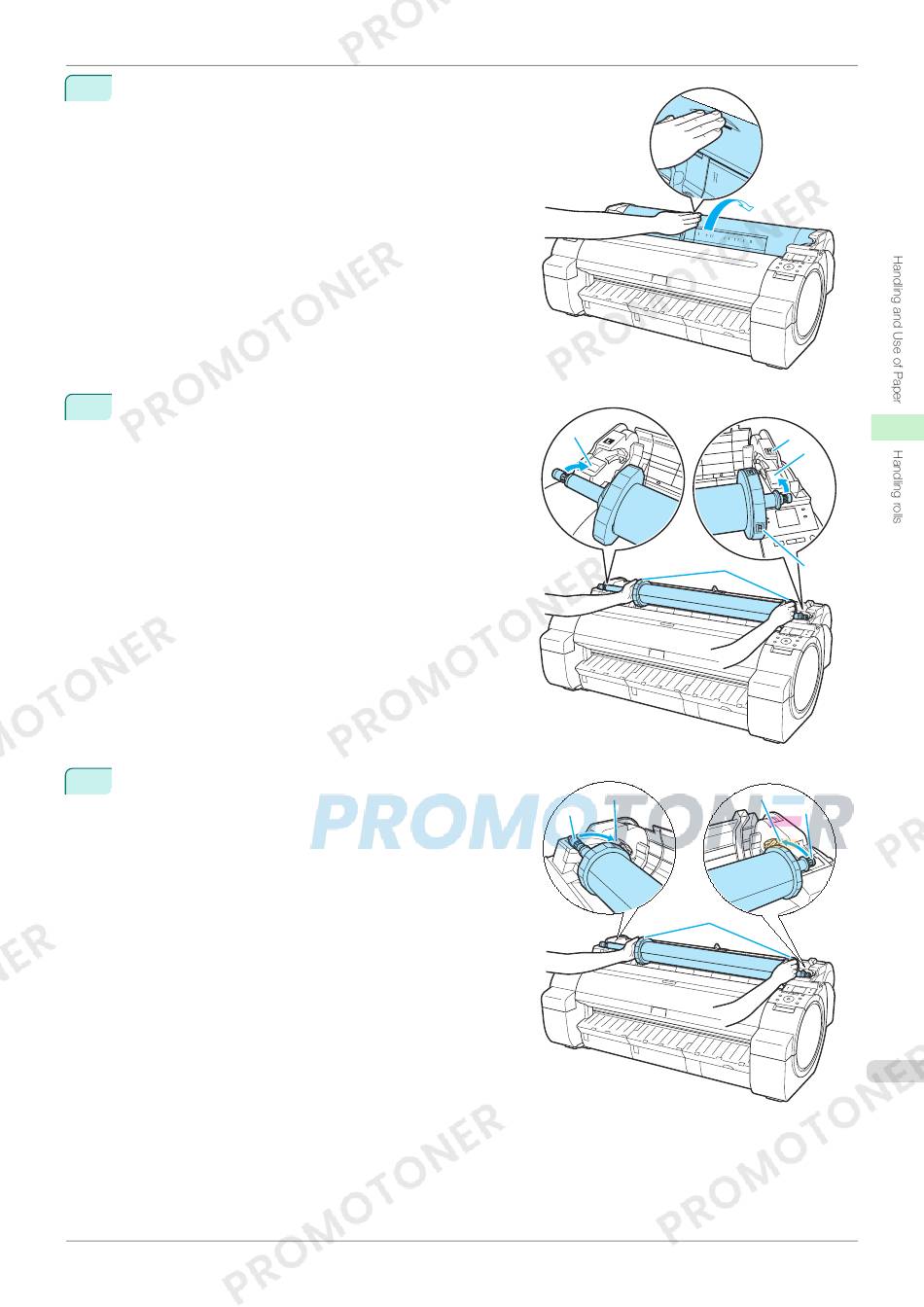

Positioning your hands as shown, open the Roll Cover.
4
Holding the Roll Holder flange (a), rest the Roll Holder
shaft on the Roll Ledge (b).
At this time, position the holder so that the R label (c) on
the [W label (c) on the Roll Holder flange is aligned with
the R label (d) on the printer .
5
Holding the Roll Holder flange (a), guide the holder along
the Roll Loading Slots (b) on both ends, keeping the holder
level as you load it in the Roll Holder Slot.
