For details on supported sizes and types of rolls, see Paper Sizes or the Paper Reference Guide. (See "Paper
Sizes.")
P.310
➔
Note
•
To view instructions as you attach the Roll Holder, press the Navigate button. (See "How to View Instructions with
Navigate.")
P.404
➔

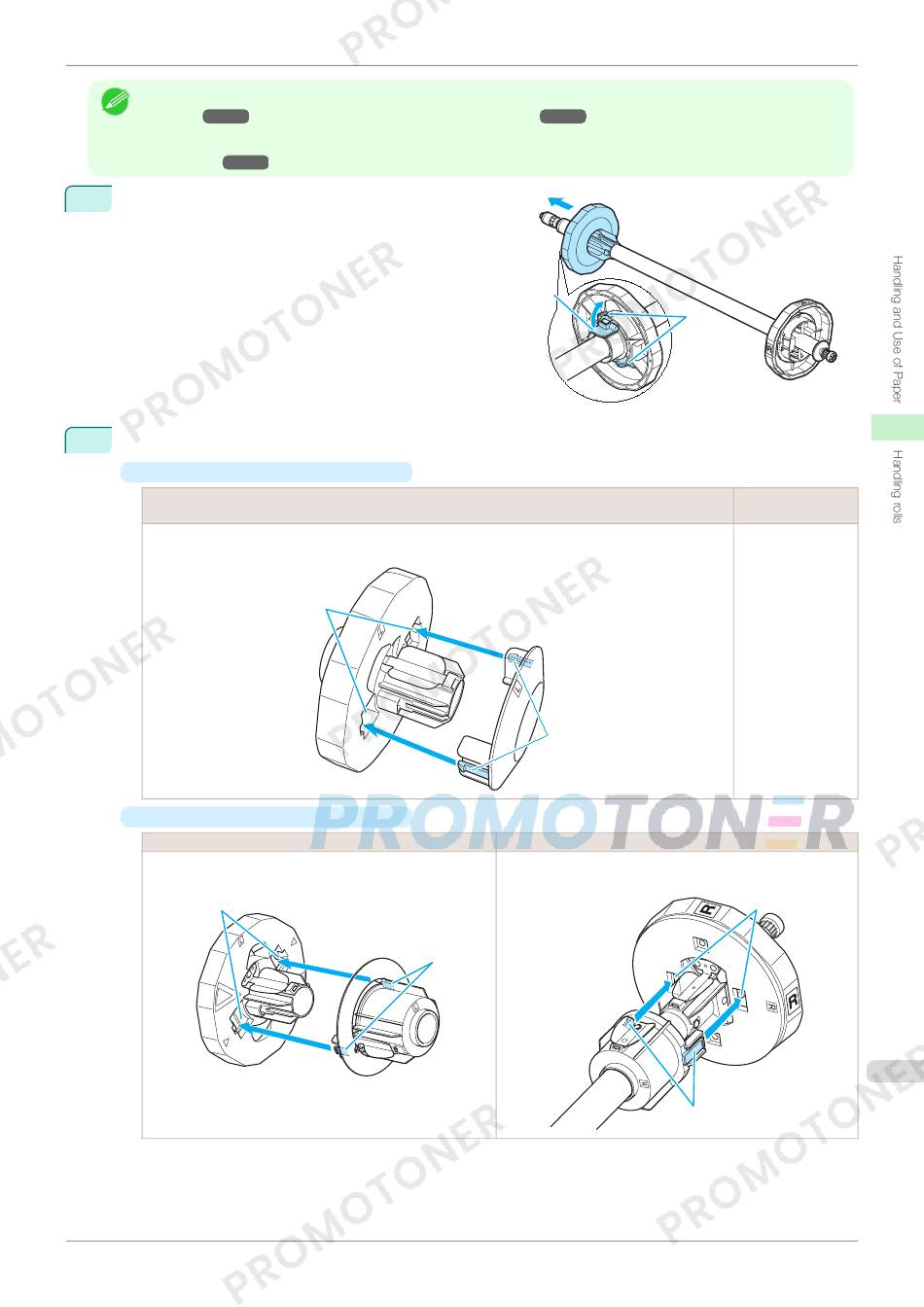

1
Lift the Holder Stopper lever (a) from the shaft side to un-
lock it. Holding the Holder Stopper at the position indicated
(b), remove it from the Roll Holder.
2
Insert the respective attachments for the roll paper core on the Roll Holder and Holder Stopper.
• Using rolls with a 2-inch paper core
Align the tips (a) of the 2-Inch Paper Core Attachment with the holes (b) of the Holder Stopper and
insert it firmly.
• Using rolls with a 3-inch paper core
Align the tips (a) of the 3-Inch Paper Core Attachment L
with the holes (b) of the Holder Stopper and insert it firmly.
b
User's Guide
(See "Displaying the Paper Reference Guide.")
Holder Stopper (Left Side)
b
Holder Stopper (Left Side)
P.313
➔
a
a
Align the tips (a) of 3-Inch Paper Core Attachment R with
the holes (b) of the Roll Holder and insert it firmly.
a
Attaching the Roll Holder to Rolls
b
Roll Holder (Right
Side)
No attachment is
needed.
Roll Holder (Right Side)
b
