Front

Printer parts

Printer parts
Front .............................................................................................................................................................. 432
Side ................................................................................................................................................................ 434
Top Cover (Inside) ........................................................................................................................................... 435
Roll Cover (Inside) ........................................................................................................................................... 436
Carriage ......................................................................................................................................................... 436
Ink Tank Cover (Inside) .................................................................................................................................... 437
Stand ............................................................................................................................................................. 438
Control Panel .................................................................................................................................................. 398

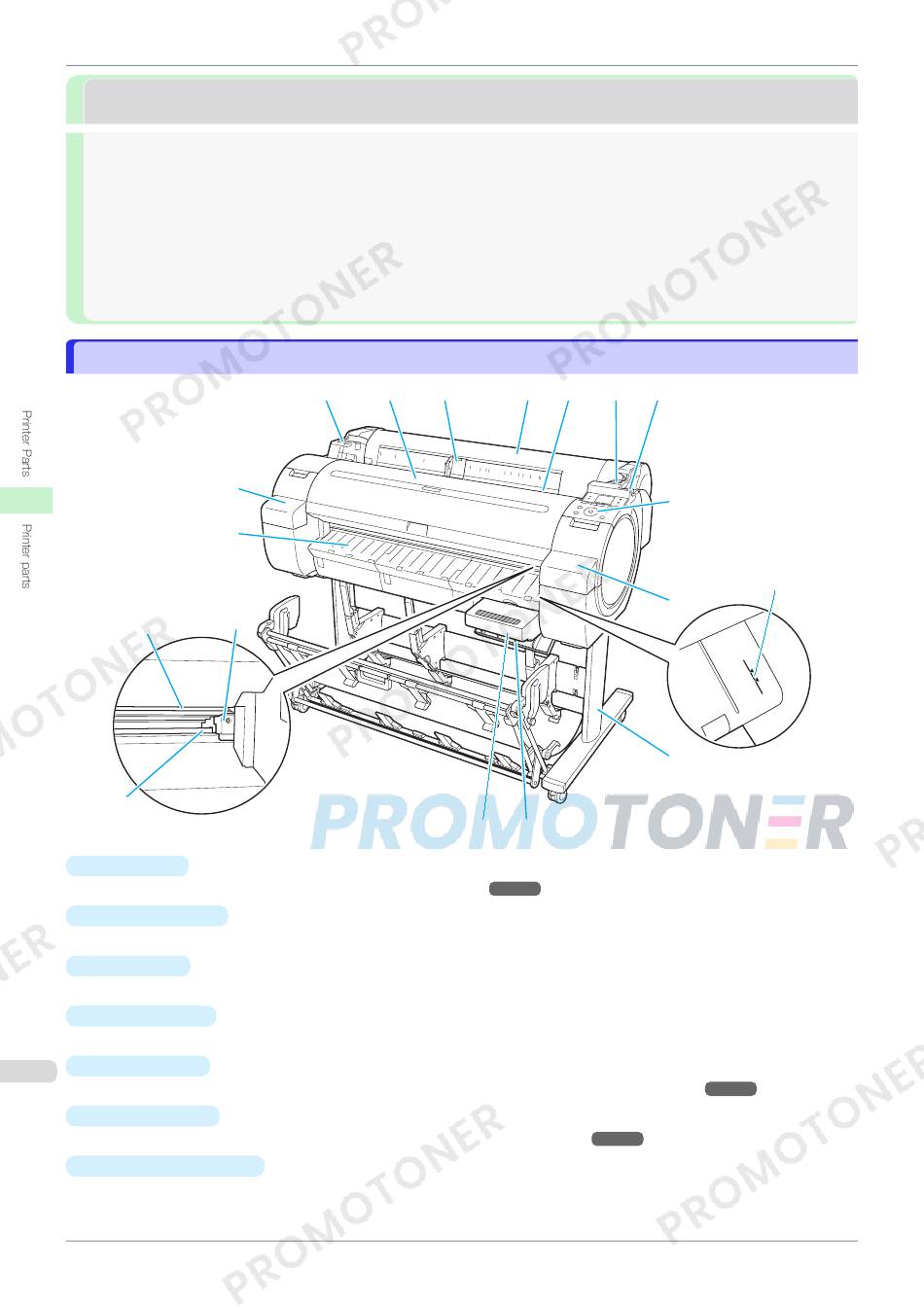

Front

Front
l
k
a Roll Cover
Open this cover to load rolls. (See "Roll Cover (Inside).")
b Paper Feed Slot
When loading paper, insert it here.
c Roll Ledge
When loading rolls, rest the Roll Holder here before loading it in the Roll Holder Slot.
d Release Lever
When releasing the Paper Retainer, push this lever back.
e Control Panel
432
Use this panel to operate the printer and check the printer status. (See "Control Panel.")
f Ink Tank Cover
Open this cover to replace an Ink Tank. (See "Ink Tank Cover (Inside).")
g Paper Alignment Line
An orange line for alignment of paper.
c n
f
m
j
o a b c
i h
P.436
➔
P.437
➔
iPF770
d
e
g
f
p
P.398
➔
