ARTIX-7 FPGA Development Board AX7201 User Manual

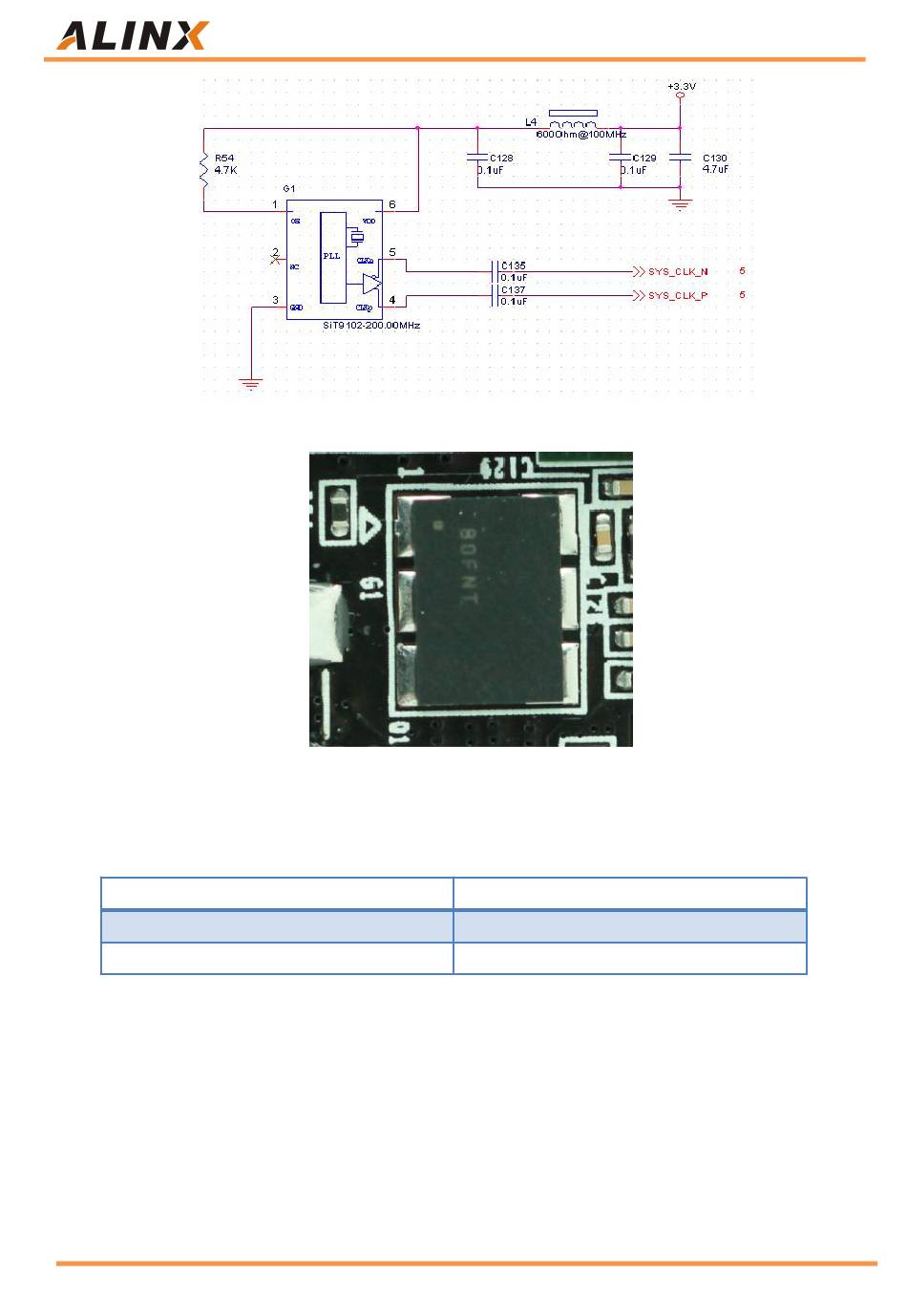

200Mhz Active Differential Crystal Schematic
200Mhz Active Differential Crystal on the Core Board
200Mhz Differential Clock Pin Assignment
Signal Name FPGA PIN
SYS_CLK_P R4
SYS_CLK_N
T4

Part 2.4: 148.5Mhz Active Differential Crystal

G2 is the 148.5Mhz active differential crystal, which is the reference input
clock provided to the GTP module inside the FPGA. The crystal output is
connected to the GTP BANK216 clock pins MGTREFCLK0P (F6) and
MGTREFCLK0N (E6) of the FPGA.
