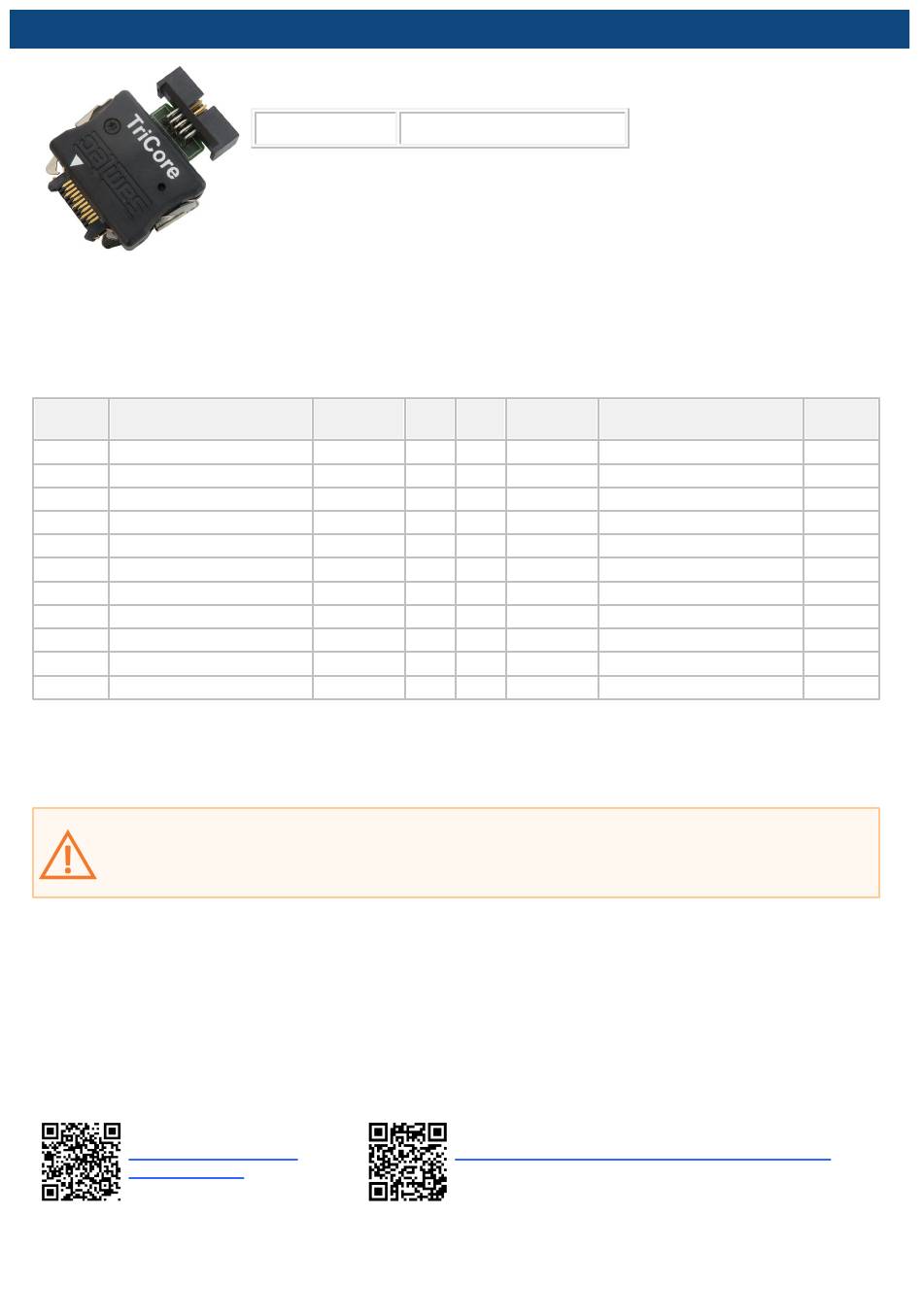

10-pin DAP2 to 22-pin ERF8 DAP2 Converter

A converter connecting at the end of the 10-pin 1.27 mm DAP debug cable is available for
Infineon 22-pin ERF8 Aurix pinout. This converter must be ordered separately.
The following pinout is valid on the target side:
Signal Signal Description
Direction
Not Connected
Not Connected
Ground
Not Connected
Not Connected
Ground
Not Connected
Not Connected
Ground
Not Connected
Not Connected
Signal Direction is described from the BlueBox perspective.
When connecting the BlueBox to a target for the first time, double check that the debug
adapter pinout matches the Target connector. A mismatch can result in a hardware
failure.
This debug adapter features resettable fuses on pins 2, 4, 5, 6, 10, 11, 12, 17 and 22. These
fuses protect debug signals against overcurrent and cycle back to a conductive state after the
excessive current fades away.
The debug adapter connects to the target via a 22-pin ERF8 connector, Samtec ASP-137971-
02. The target must have populated a matching part, for example Samtec ASP-137969-01,
Samtec Series ERF8, Rugged High Speed Socket.
How to connect iSYSTEM
Hardware (video)
isystem.com/connect-hardware
Ordering code IA10PINDAP22PINSAM
Signal Pin
NC 1
NC 3
GND 5
NC 7
NC 9
GND 11
NC 13
NC 15
GND 17
NC 19
NC 21
22-pin ERF8 AURIX target pinout
Pin Signal
2 Vref
4 DAP0
6 DAP1
8 NC
10 DAP2
12 nTRST
14 NC
16 NC
18 NC
20 NC
22 RESET
Cross Table Converters/Debug Adapters/Active Probes
isystem.com/cross-table
Signal Description
Reference Voltage
DAP Clock
DAP Data pin
Not Connected
Optional 2nd Data pin
JTAG
Not Connected
Not Connected
Not Connected
Not Connected
Reset
Signal
Direction
I
O
I/O
I/O
O
I/O
