TASKING iSYSTEM Infineon DAP/DAPE II User Manual page 9

Permanently green – Powered on and ready to use.
Blinking green – Establishing connection with the BlueBox.
Blinking blue – Reprogramming SPLASH.
Permanently magenta – Golden image loaded and ready to use.

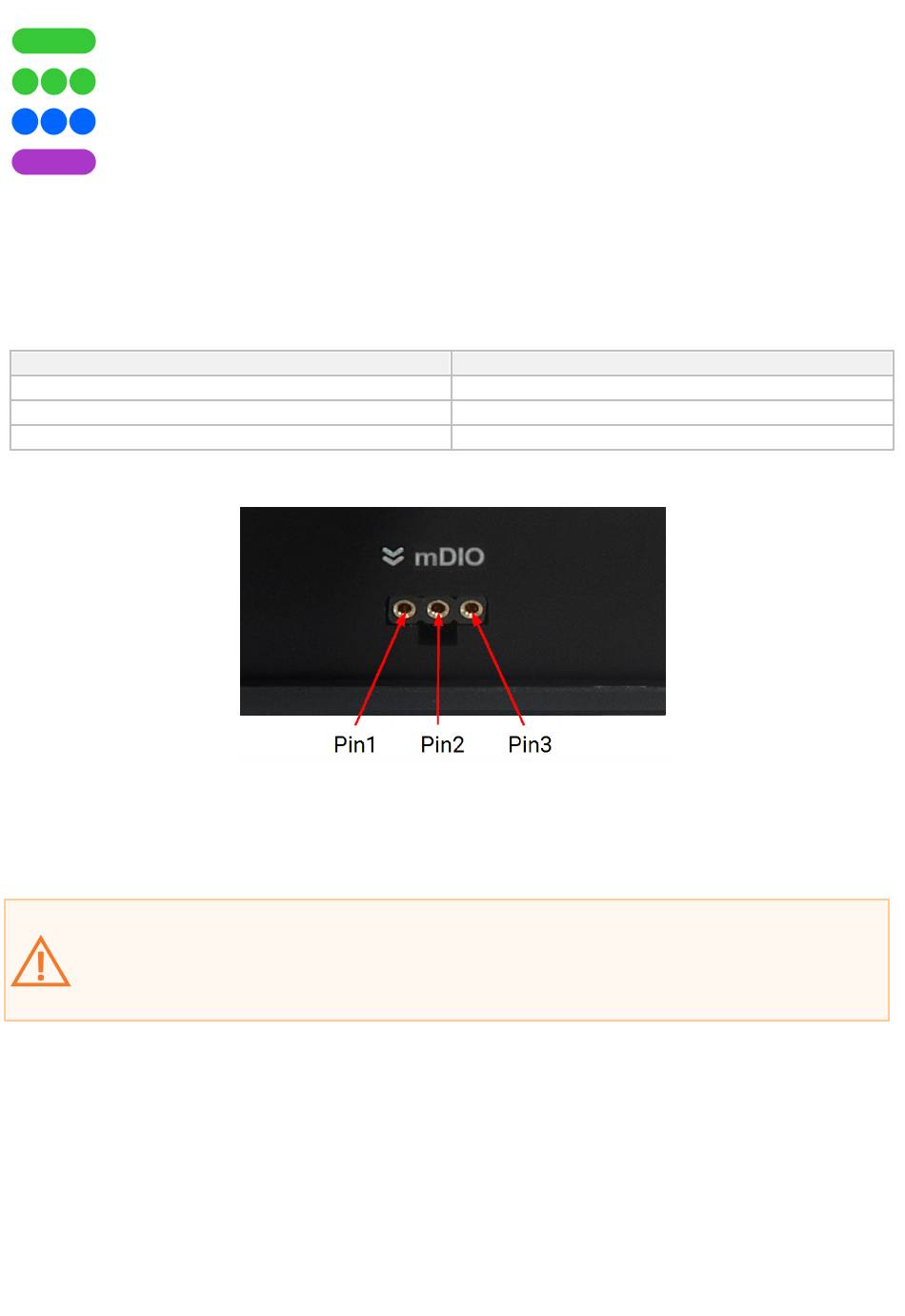

D – mDIO port with the marked Pin1 on the housing
mDIO port provides two digital signals, which can interact with the embedded target. Each can
be configured either for input or output operation.
E – FNet connector, that connects the Active Probe to the iC5700 BlueBox. The FNet cable is
delivered with the Active Probe.
When powering on the system, switch the iC5700 on before powering on the target.
When powering down the system, power off the target before powering off the iC5700!
Use only original iSYSTEM accessories for powering and connecting with the iC5700.
Consult with iSYSTEM before attempting to use any other accessory.
Number
Pin1
Pin2
Pin3
mDIO port pinout
Name
IOØ
IO1
GND
