Further Active Probe Settings

The iC5700 is capable of connecting to AURIX™ target devices through one of the following:

Its installed DTM module and an appropriate DAP cable adapter, e.g., 10-pin 1.27mm

Infineon DAP2 Wide D. Adapter, ordering code IC50163-2 or

This debug system has limited maximum DAP frequency and the DAPE debug port is not

supported. Alternatively, JTAG debug interface support is also available through a dedicated

JTAG cable adapter, e.g. IC50160.

Infineon DAP/DAPE II Active Probe

Infineon DAP/DAPE Active Probe or

Infineon AGBT Active Probe or

Infineon SGBT (HSTCU) Active Probe

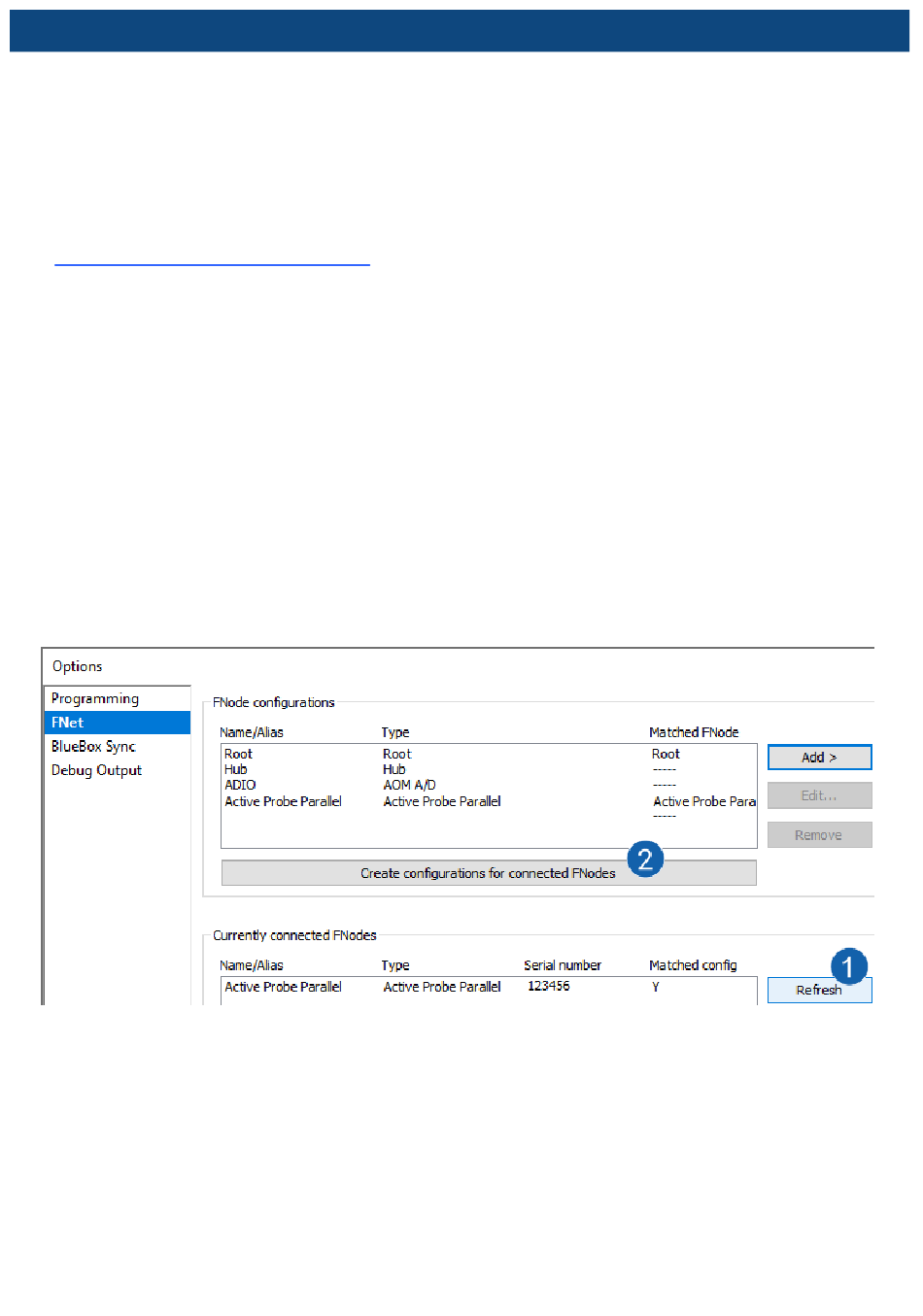

To switch from the default DTM interface and use to the Active Probe:

1. Click Refresh in Hardware menu / Options / FNet / Currently connected FNodes.

2. Click Create configurations for connected FNodes. Selected device is displayed in FNode

configurations

Configuration is created. Look for:

Listed devices with Matched FNode

Y (for yes) under Matched config

List of available networks
