Mounting a 2FXS, 4FXS, 4FXO, 8FXS, or 8FXO on a Wall

See Figure 4. First attach the two short brackets. To attach either bracket to the 2FXS,
4FXS, 4FXO, 8FXS, or 8FXO, follow these steps:
Unscrew the screw nearest the device's base on either side, nearest the front panel.
1
On one side, insert the small bracket's peg in the third air vent down, front column.
2
Swivel the bracket around until its wall side aligns with the base. Use the kit's screws to
3
fasten it in. Repeat with the other small bracket on the other side of the device.
Attach the brackets to the wall and cable it as in
4
page 19

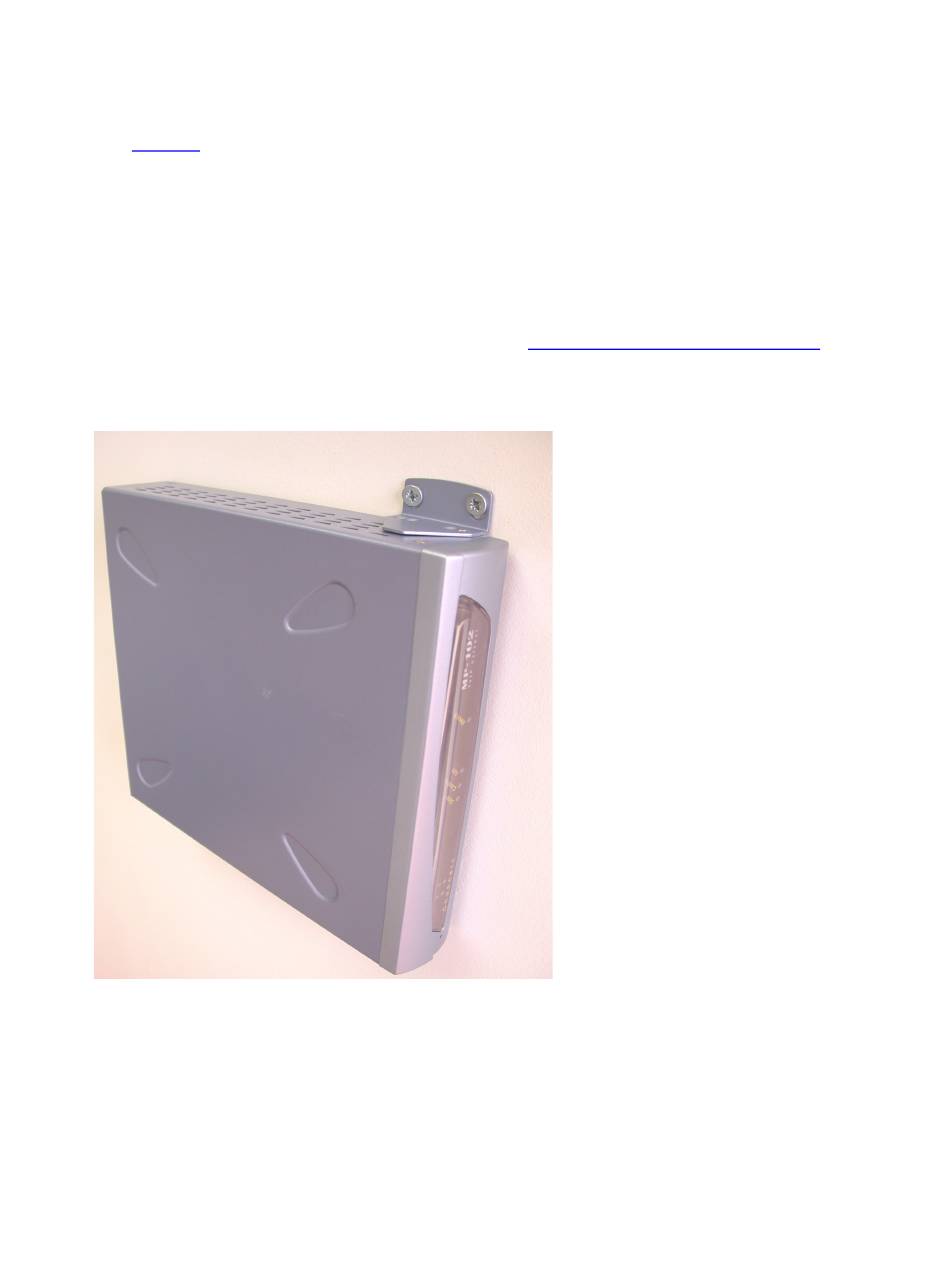

2FXS, 4FXS, 4FXO, 8FXS, or 8FXO Wall Mount
Figure 4
16
"Chapter 3: Cabling the VCX
VCX V7111 Fast Track Installation Guide
V7111" on
