Installing An 2Fxs, 4Fxs, 4Fxo, 8Fxs, Or 8Fxo In A 19-Inch Rack - 3Com VCX V7111 Installation Manual

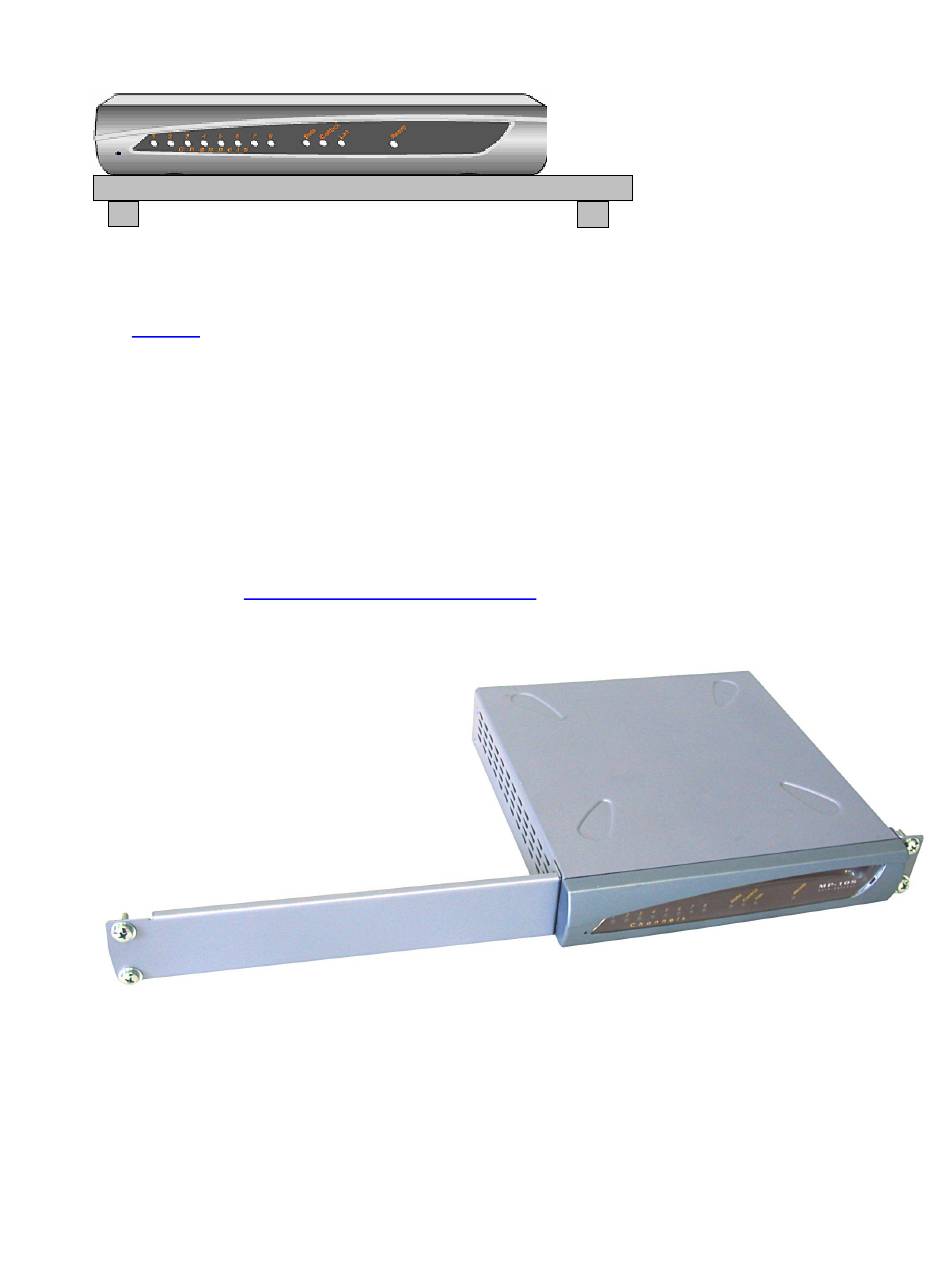

Desktop or Shelf Mounting
Figure 1

Installing an 2FXS, 4FXS, 4FXO, 8FXS, or 8FXO in a 19-inch Rack

See Figure 2. First attach a short bracket on one side and a long bracket on the other side.
To attach either bracket to the 2FXS, 4FXS, 4FXO, 8FXS, or 8FXO, follow these steps:
Unscrew two screws on a side, nearest the front panel. Insert the bracket's peg into the
1
third air vent down, first column.
Swivel the bracket around until its holes align with the two screw holes. Use the kit's
2
screws to fasten it in.
Insert the 2FXS, 4FXS, 4FXO, 8FXS, or 8FXO into the rack, line up the bracket holes
3
with the rack frame holes, and use four standard rack screws (not supplied) to secure the
brackets to the rack frame.
Cable it as in "Chapter 3: Cabling the VCX
4
2FXS, 4FXS, 4FXO, 8FXS, or 8FXO with Brackets for Rack Installation
Figure 2
14
V7111" on page 19.
VCX V7111 Fast Track Installation Guide
