Fim-7941F Interface Module - Fortinet FortiGate-7000F Series System Manual

FortiGate-7081F chassis

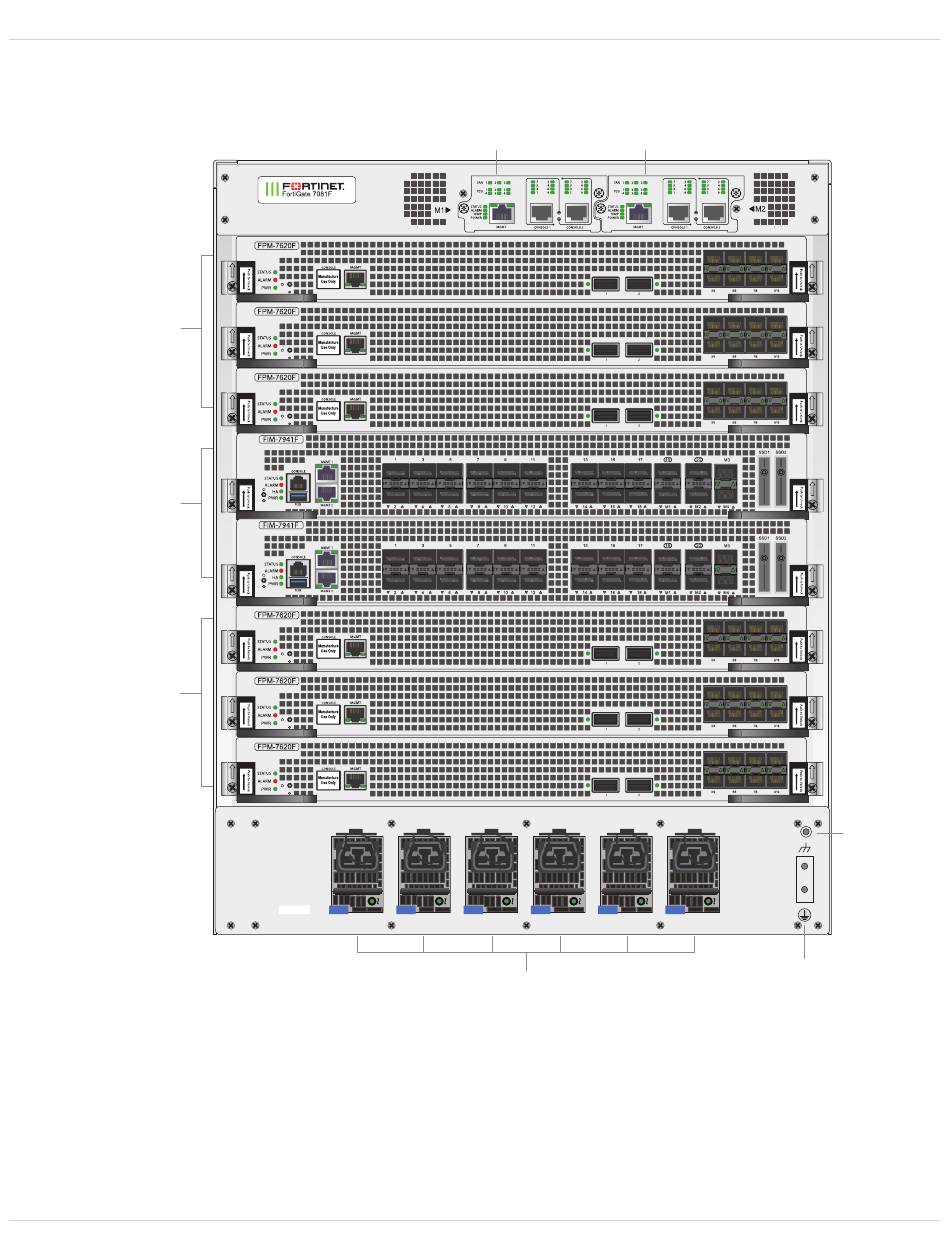

FortiGate-7081F front panel showing AC PSUs, two FIM-7941Fs, and six FPM-7620Fs. The FortiGate-7081F
also supports FIM-7921Fs (not shown).
FPM-7620F
(FPM slots 3,
5, 7)
FIM-7941F
(FIM slots
1 and 2)
FPM-7620F
(FPM slots 4,
6, 8)

FIM-7941F interface module

The FIM-7941F interface module is a hot swappable module that provides data, management, and session
sync/heartbeat interfaces, base backplane switching, hardware acceleration, and fabric backplane session-aware load
balancing for a FortiGate-7000F series chassis. The FIM-7941F includes an integrated switch fabric, five NP7
FortiGate-7081F 7.0.5 System Guide
7
5
3
1
2
4
6
8
CAUTION
SHOCK HAZARD
DISCONNECT ALL
POWER SOURCES.
ATTENTION
RISQUE
D'ÉLECTROCUTION.
DÉBRANCHEZ TOUTE
LES SOURCES
D'ALIEMENTATION.
200-240VAC
16A 50-60Hz EACH
1
SMM 1
2 3 4
PSUs 1 to 6
Fortinet Technologies Inc.
SMM 2
5 6
Ground
Connectoor
7
5
3
1
2
4
6
8
ESD
socket
8
