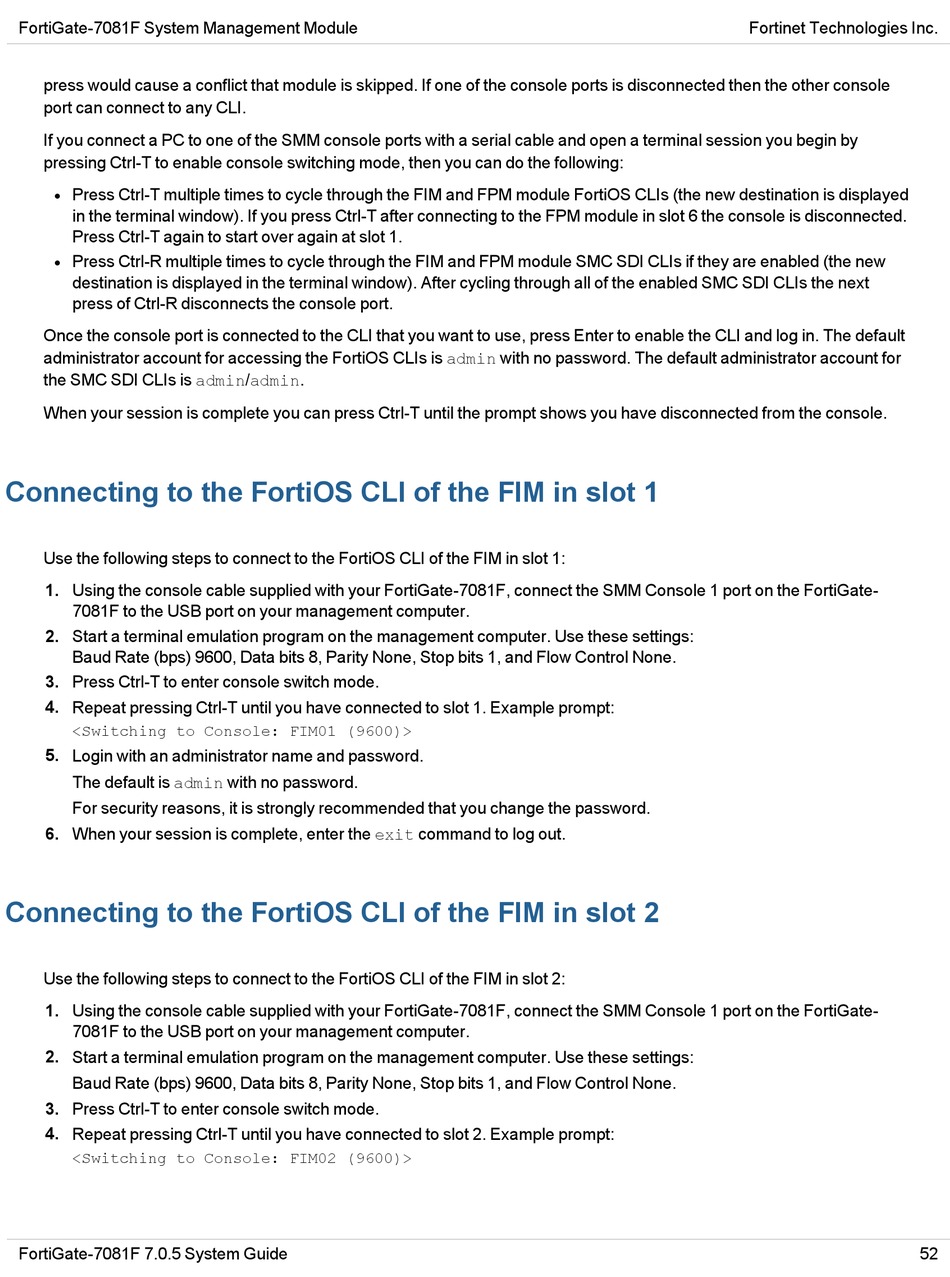

FortiGate-7081F System Management Module
press would cause a conflict that module is skipped. If one of the console ports is disconnected then the other console
port can connect to any CLI.
If you connect a PC to one of the SMM console ports with a serial cable and open a terminal session you begin by
pressing Ctrl-T to enable console switching mode, then you can do the following:
Press Ctrl-T multiple times to cycle through the FIM and FPM module FortiOS CLIs (the new destination is displayed
l
in the terminal window). If you press Ctrl-T after connecting to the FPM module in slot 6 the console is disconnected.
Press Ctrl-T again to start over again at slot 1.
Press Ctrl-R multiple times to cycle through the FIM and FPM module SMC SDI CLIs if they are enabled (the new
l
destination is displayed in the terminal window). After cycling through all of the enabled SMC SDI CLIs the next
press of Ctrl-R disconnects the console port.
Once the console port is connected to the CLI that you want to use, press Enter to enable the CLI and log in. The default
administrator account for accessing the FortiOS CLIs is admin with no password. The default administrator account for
the SMC SDI CLIs is admin/admin.
When your session is complete you can press Ctrl-T until the prompt shows you have disconnected from the console.

Connecting to the FortiOS CLI of the FIM in slot 1

Use the following steps to connect to the FortiOS CLI of the FIM in slot 1:
1. Using the console cable supplied with your FortiGate-7081F, connect the SMM Console 1 port on the FortiGate-
7081F to the USB port on your management computer.
2. Start a terminal emulation program on the management computer. Use these settings:
Baud Rate (bps) 9600, Data bits 8, Parity None, Stop bits 1, and Flow Control None.
3. Press Ctrl-T to enter console switch mode.
4. Repeat pressing Ctrl-T until you have connected to slot 1. Example prompt:
<Switching to Console: FIM01 (9600)>
5. Login with an administrator name and password.
The default is admin with no password.
For security reasons, it is strongly recommended that you change the password.
6. When your session is complete, enter the exit command to log out.
Connecting to the FortiOS CLI of the FIM in slot 2
Use the following steps to connect to the FortiOS CLI of the FIM in slot 2:
1. Using the console cable supplied with your FortiGate-7081F, connect the SMM Console 1 port on the FortiGate-
7081F to the USB port on your management computer.
2. Start a terminal emulation program on the management computer. Use these settings:
Baud Rate (bps) 9600, Data bits 8, Parity None, Stop bits 1, and Flow Control None.
3. Press Ctrl-T to enter console switch mode.
4. Repeat pressing Ctrl-T until you have connected to slot 2. Example prompt:
<Switching to Console: FIM02 (9600)>
