FortiGate-7081F hardware assembly and rack mounting

Mounting the FortiGate-7081F chassis in a four-post rack

The FortiGate-7081F package includes a set of extendable rack mount trays that you can use to mount the chassis in a
4-post rack. Install the brackets to create a 4-post rack mount tray that the chassis will slide on to. Attach each side of the
tray to the 4-post rack as shown below. Make sure you install the tray with enough space above it for the chassis. The
length of the tray sides adjusts to match your rack. Once the 4-post rack mount tray has been installed, slide the chassis
onto the tray and secure it to the rack mount tray and the rack posts as shown in the diagram.

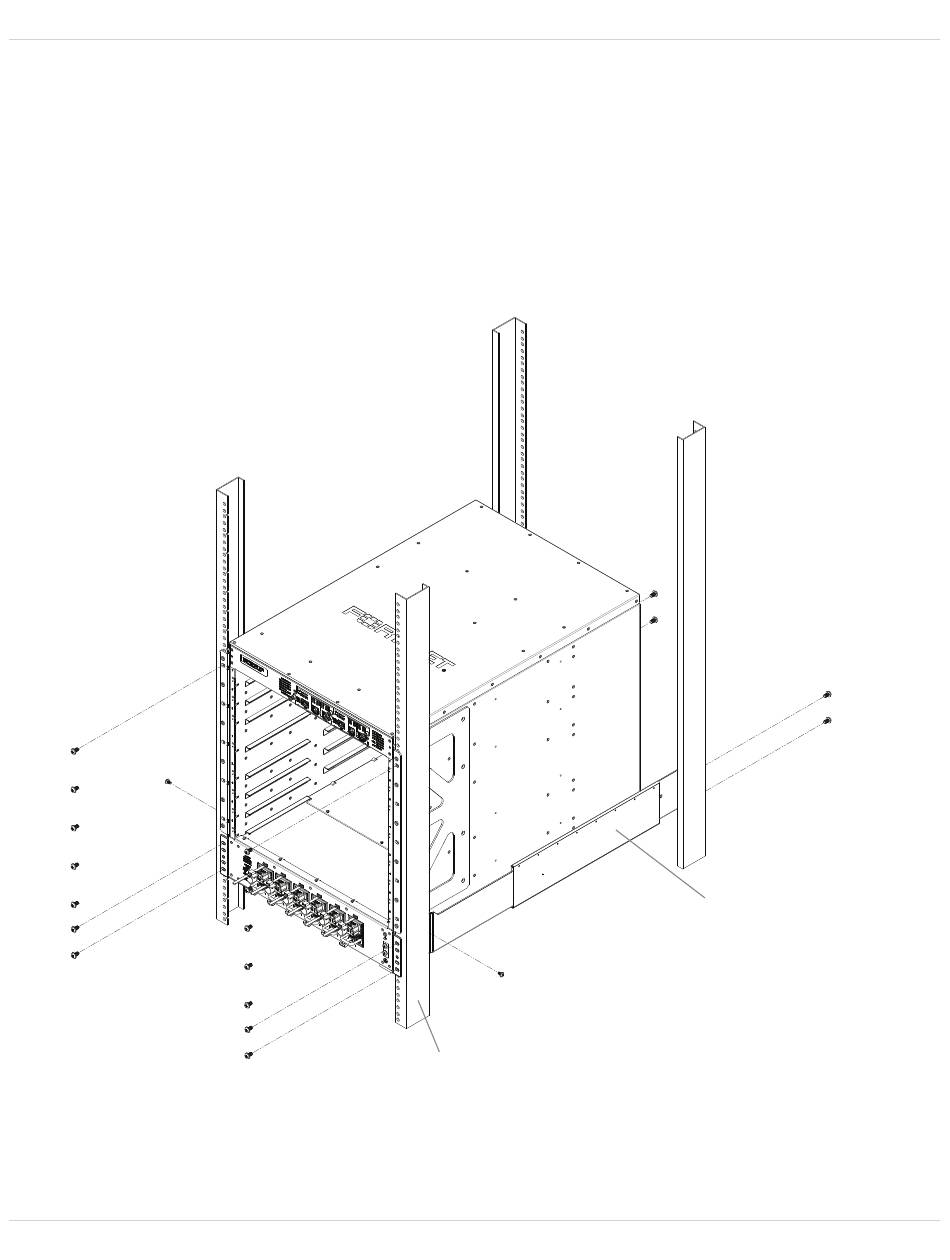

Mounting the chassis in a four-post rack
4. Secure the chassis
to the rack posts.
Both sides, use rack mount
screws (not provided)
FortiGate-7081F 7.0.5 System Guide
3. Secure the chassis
to the rack mount tray.
Both sides
Use M4x8 large head pan-head
Rack post
screws
Fortinet Technologies Inc.
1. Attach the rack
mount tray to the
rack posts.
Both sides, use rack mount
screws (not provided)
2. Place the chassis on
the rack mount tray.
