FortiGate-7081F chassis
Module
FPM-7620F
Chassis (fans, SMMs
etc)
To completely power a FortiGate-7081F with two FPM-7620Fs and six FPM-7620Fs you would need three PSUs. You
can add up to three more PSUs to provide 3+1, 3+2, or 3+3 redundancy.

AC PSUs and supplying AC power to the chassis

The FortiGate-7081F chassis front panel can include up to six hot swappable 200-240V, 16A AC PSUs. The capacity of
each PSU is 2500W. See
The number of PSUs required by a chassis depends on the number of FIMs and FPMs in the chassis. For example, a
FortiGate-7081F chassis containing two FIM-7941Fs and six FPM-7620Fs requires 3 PSUs to provide a total of 7500W.
You can add extra PSUs to provide redundancy. See
configurations on page 19
If the chassis does not have enough power because PSUs have failed or become disconnected, the active SMM will
begin shutting down FPMs starting at the highest slot number.
All PSUs should be connected to AC power. To improve redundancy you can connect each PSU to a separate power
source.
Use a SDG400 to C20 power cable, supplied with the chassis, to connect power to each the Anderson Saf-D-Grid ®
Receptacle: 2006G1-NC-BK power connector of each PSU.

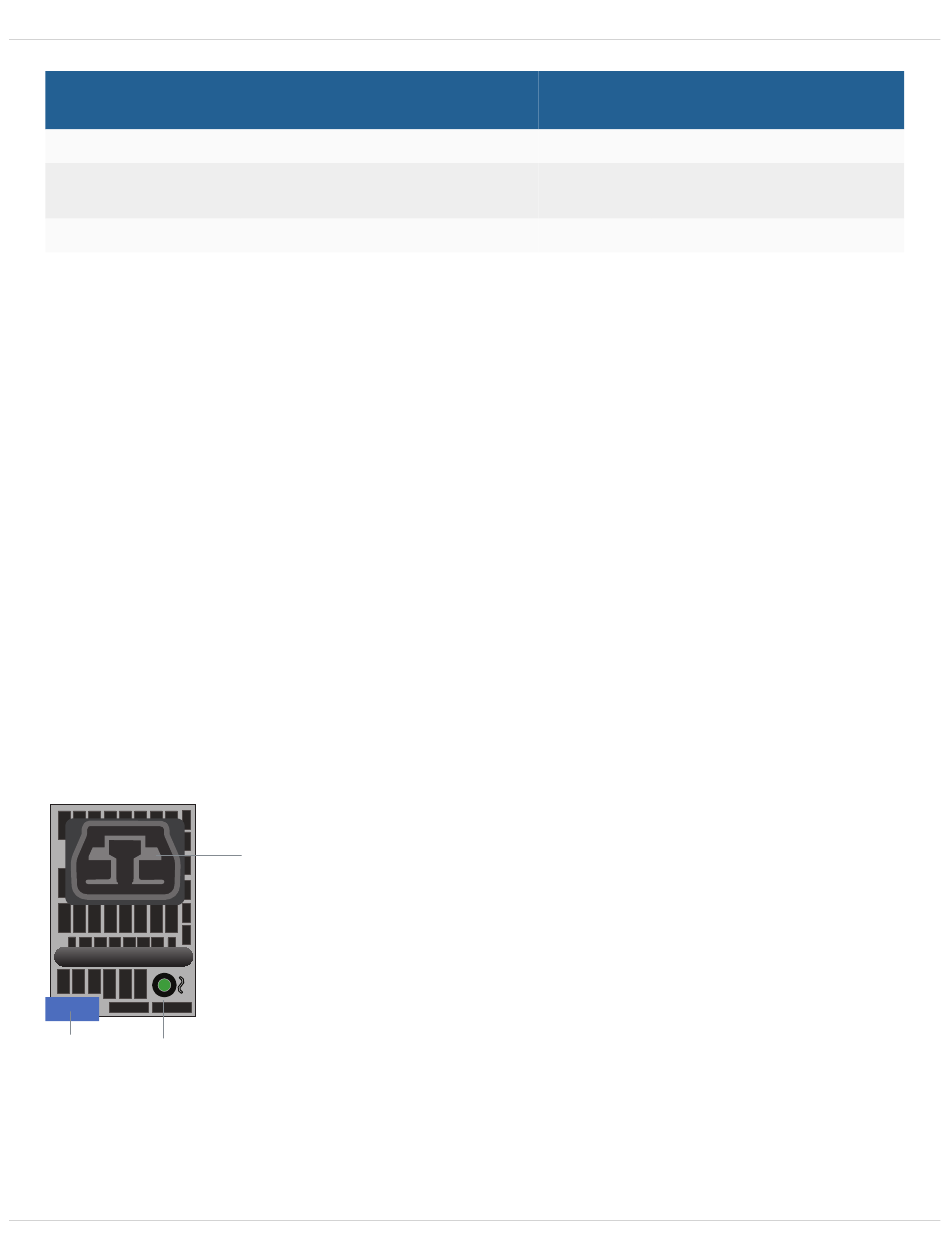

AC PSU showing Anderson Saf-D-Grid ® Receptacle: 2006G1-NC-BK power connector
Latch
PSU LED
The PSU LED indicates whether the PSU is operating correctly and connected to power. If this LED is not lit, check to
make sure the PSU is connected to power. If the power connection is good then the PSU has failed and should be
replaced.
FortiGate-7081F 7.0.5 System Guide
Max power
consumption (W)
716
1340
FortiGate-7081F front panel on page 7
or Power consumption for different FIM-7921F FortiGate-7081F configurations on page
Anderson Saf-D-Grid ®
Receptacle:
2006G1-NC-BK
Power
Connector
Number of
modules
6
N/A
Totals
for locations of the PSUs.
Power consumption for different FIM-7941F FortiGate-7081F
Fortinet Technologies Inc.
Total max power (W)
4296
1340
6830
20.
