Summary of Contents for Fortinet FortiGate FG-1000F Series

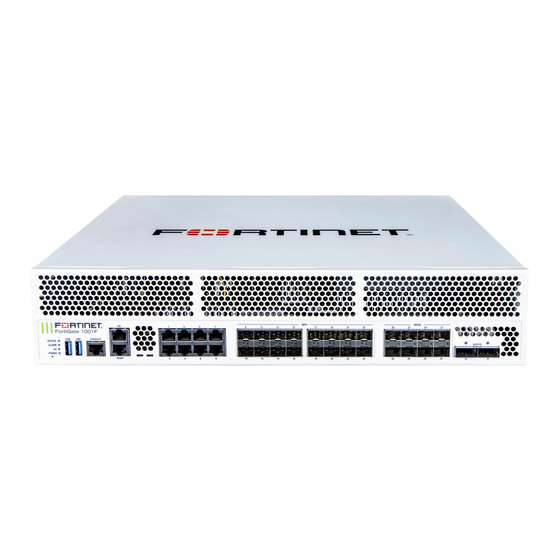

- Page 1 快速入門指南 FortiGate 1000F系列 FG-1000F, FG-1000F-DC, FG-1001F, and FG-1001F-DC FG-1000F and FG-1001F...
- Page 2 Fortinet. For absolute clarity, any such warranty will be limited to performance in the same ideal conditions as in Fortinet’s internal lab tests.
- Page 3 系列 FG-1000F and FG-1001F FG-1000F, FG-1000F-DC, FG-1001F, 和 FG-1001F-DC https://192.168.1.99 MGMT IP 為 192.168.1.99 用戶名：admin 密碼：留空 管理員指南 FortiGate Device QuickStart Guide 如需詳細的入門指南、設置和配置信息，請參閱網頁上的管理員指南 https://docs.fortinet.com/ 客戶服務 對於合同、許可、產品註冊和賬戶管理，請在以下網址聯繫FortiCare支援 https://www.fortinet.com/support/contact 2x Power Cables 1x Ethernet Cable 1x Console Cable 自助服務資源 訪問我們的知識庫、論壇、視頻和技術專家 https://www.fortinet.com/support/support-services/forticare-support 感謝您選擇Fortinet 2x SFP Transceivers...
- Page 4 Speed (default): 9600 Data bits: USB Console Cable Stop bits: Parity: None Flow Control: None Console Port Management Computer Scan QR Code to Follow the on-screen Install instructions 備註: 如需詳細的 CLI 指南，請瀏覽 docs.fortinet.com 備註: 在行動裝置上啟動藍芽以使用BLE或是用USB纜線連接行動裝置到設備上 MGMT Management Computer Ethernet Cable 備註...
- Page 5 SFP 模組 SFP 模組 安裝 移除 Cage Socket Cage Socket...
- Page 6 桌面安裝 機架安裝 1.5in 1.5in 1.5in 1.5in 備註：將設備放在平坦、乾淨和穩定的表面上。 注意：為避免人身傷害或設備損壞，建議至少需要兩個以上將設備安裝在機架上。 建議設備的間隙為上下各 1.5 英寸。...
- Page 7 FG-1000F Series Front Panel SFP+ SFP28 FortiGate 1000F CONSOLE STATUS QSFP28 ALARM POWER MGMT STATUS MGMT (RJ45) Green: Normal operation Green: Operating in an HA cluster LINK/ACT (Left LED) SPEED (Right LED) Green: On, Link up Green: 1 Gbps Flashing Green: Booting up Red: HA failure Flashing...
- Page 8 FG-1000F Series Rear Panel -AC Model Output LED Indicators Power Supply 100-240VAC, 50/60Hz, 6A Max (2x PSU) Green: Output voltage normal 1+1 Redundant, hot-swappable power supplies Green: Standby mode Flashing Flashing Amber: Warning Amber: Critical error Input LED Indicators Off: No output Green: Input voltage within normal range Green: Over or under voltage warning Flashing...
-
Page 9: Cautions And Warnings
Before extending the rack to the installation position, read the installation instructions. Cautions and Warnings Antes de estender o rack para a posição de instalação, leia as instruções de instalação. Do not put any load on the slide-rail mounted equipment in the installation position. Environmental specifications Não coloque nenhuma carga no equipamento montado em trilho deslizante na posição de instalação. - Page 10 EU or countries that have implemented the EU Directives and/or spectrum regulation. 警告： 為避免電磁干擾，本產品不應安裝或使用於住宅環境。請 Any Fortinet products not obtained directly from Fortinet or Fortinet’s authorized partners may not comply with EU Directives and Fortinet makes no assurances for such products.
- Page 11 Fortinet.com...
