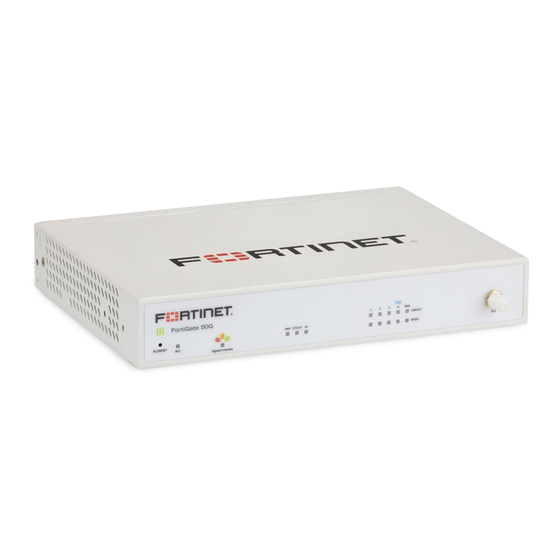

- Page 1 QuickStart Guide FortiGate 50G SFP POE Series FG-50G-SFP-POE, FG-51G-SFP-POE FG-50G-51G-SFP-POE-QSG-20240523.indd 1 FG-50G-51G-SFP-POE-QSG-20240523.indd 1 5/23/2024 10:31:48 AM 5/23/2024 10:31:48 AM...
- Page 2 FortiGate Cloud Experience simplified cloud provisioning, security analytics, remote access, hosted log retention and reporting at https://fortigate.forticloud.com FortiExplorer Go Rapidly provision, deploy and manage your Fortinet Security Fabric Platform, free on iOS and Android: https://docs.fortinet.com/product/fortiexplorer-go/ FG-50G-51G-SFP-POE-QSG-20240523.indd 2 FG-50G-51G-SFP-POE-QSG-20240523.indd 2 5/23/2024 10:31:48 AM...
-
Page 3: Package Contents
Package Contents FortiGate 50G SFP POE Series FG-50G-SFP-POE, FG-51G-SFP-POE 1x FortiGate Device 1x QuickStart Guide 1x AC Power Cable 1x DC Power Adapter 1x Ethernet Cable FG-50G-51G-SFP-POE-QSG-20240523.indd 3 FG-50G-51G-SFP-POE-QSG-20240523.indd 3 5/23/2024 10:31:49 AM 5/23/2024 10:31:49 AM... -
Page 4: Follow The On-Screen Instructions
Setup FortiExplorer Go Install Enable Follow the on-screen FortiExplorer Go Bluetooth instructions Port 1 If Static IP: 192.168.1.1/24 Ethernet Cable FG-50G-51G-SFP-POE-QSG-20240523.indd 4 FG-50G-51G-SFP-POE-QSG-20240523.indd 4 5/23/2024 10:31:49 AM 5/23/2024 10:31:49 AM... - Page 5 None (available for purchase) Flow Control: None Console Port FortiGate Cloud Login to https://fortigate.forticloud.com using your Fortinet Credentials, then click Add FortiGate and enter the Cloudkey Internet Ethernet Cable WAN port FG-50G-51G-SFP-POE-QSG-20240523.indd 5 FG-50G-51G-SFP-POE-QSG-20240523.indd 5 5/23/2024 10:31:50 AM 5/23/2024 10:31:50 AM...
- Page 6 Flashing Blue: BLE in discovery Off: BLE not connected Signed Firmware BIOS Security Level Controlled by Signed Firmware Switch, see Admin Guide at https://docs.fortinet.com Green: Security Level 2 (default) Amber: Security Level 1 Red: Security Level 0 Green: Power detected...
-
Page 7: Ethernet Ports
MAX PoE WAN2 WAN1 LINK/ACT PoE+ PoE+ MAX PoE (up to 60W) Max PoE power reached Red: Off: PoE+ available Ethernet Ports LINK/ACT PoE+ Green: Connected Green: Supplying PoE Green: Data activity Flashing Off: Not supplying PoE Off: Not connected SFP Port LINK/ACT Green: Connected at 1 Gbps Green: Data activity... - Page 8 Rear FG-50G-SFP-POE Series Signed Firmware CONSOLE WAN1 Signed Firmware Switch USB 3.0 Port (USB-A) CONSOLE Port (RJ-45) CLI management SFP Port (SFP) FG-50G-51G-SFP-POE-QSG-20240523.indd 8 FG-50G-51G-SFP-POE-QSG-20240523.indd 8 5/23/2024 10:31:50 AM 5/23/2024 10:31:50 AM...
- Page 9 WAN2 A – DC+54V PoE+ Ports (5x RJ-45) WAN1, WAN2(PoE+), A – FortiLink(PoE+), 2(PoE+), 1(PoE+) Power Input 54V DC, 100-240V AC, 50/60Hz adapter FG-50G-51G-SFP-POE-QSG-20240523.indd 9 FG-50G-51G-SFP-POE-QSG-20240523.indd 9 5/23/2024 10:31:50 AM 5/23/2024 10:31:50 AM...
-
Page 10: Cautions And Warnings
Cautions and Warnings Environmental specifications Ambient operating temperature: 0°C to 40°C Refer to specific Product Model Data Sheet for Environmental Specifications (Operating Temperature, Storage Temperature, Humidity, and Altitude) Référez à la Fiche Technique de ce produit pour les caractéristiques environnementales (Température de fonctionnement, température de stockage, humidité et l’altitude). Safety Battery –... -
Page 11: Regulatory Notices
Regulatory Notices Federal Communication Commission (FCC) – USA This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received; including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. - Page 12 EU or countries that have implemented the EU Directives and/or spectrum regulation. Any Fortinet products not obtained directly from Fortinet or Fortinet’s authorized partners may not comply with EU Directives and Fortinet makes no assurances for such products.
- Page 13 Bureau of Standards Metrology and Inspection (BSMI) – Taiwan The presence conditions of the restricted substance (BSMI RoHS table) are available at the link below: 限用物質含有情況表 (RoHS Table) 請到以下 網址下載： https://www.fortinet.com/bsmi 請仔細閱讀以下說明 本設備勿置於潮濕處。 連接至電源前，請先檢查電壓。 當設備不用時，請將所有電源線拔除，避免電壓不穩而造成傷害。 勿將任何液體濺入設備中，避免線路短路。 基於安全理由，只有受到專業訓練的從業人員，才可以打開本設備。 請勿自行調整或修理已通電的設備，以確保您的安全。 如不小心受傷，請立刻找急救人員給予您適當的救護，千萬別因傷勢輕微而忽略自己的傷勢。 請依照台灣法規處置電池。 若不正確替換電池可能導致爆炸危險，替換電池時，請使用設備生產商推薦使用的電池。 請勿拆卸、刺穿或以其他方式損壞電池。 雷射設備非用戶維修設備，請與生產商聯繫維修事宜。 英屬蓋曼群島商防特網股份有限公司台灣分公司 地址：台北市內湖區行愛路176號2樓 電話：(02) 27961666 National Telecommunications Commission (NCC) – Taiwan NCC警語 取得審驗證明之低功率射頻器材，非經核准，公司、商號或使 用者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。低功率射頻器材之 使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。前述合法通信，指依電信管理法規 定作業之無線電通信。低功率射頻器材須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。 UK Conformity Assessed (UKCA) – United Kingdom...
- Page 14 FG-50G-51G-SFP-POE-QSG-20240523.indd 14 FG-50G-51G-SFP-POE-QSG-20240523.indd 14 5/23/2024 10:31:51 AM 5/23/2024 10:31:51 AM...
- Page 15 FG-50G-51G-SFP-POE-QSG-20240523.indd 15 FG-50G-51G-SFP-POE-QSG-20240523.indd 15 5/23/2024 10:31:51 AM 5/23/2024 10:31:51 AM...
- Page 16 Nothing herein represents any binding commitment by Fortinet, and Fortinet disclaims all warranties, whether express or implied, except to the extent Fortinet enters a binding written contract, signed by Fortinet’s SVP Legal and above, with a purchaser that expressly warrants that the identified product will perform according to certain expressly-identified performance metrics and, in such event, only the specific performance metrics expressly identified in such binding written contract shall be binding on Fortinet.
