Product; Description - LOGICDATA DCDinline D Manual

3 PRODUCT

3.1

DESCRIPTION

The DCDinline D is an actuator for electrically height-adjustable tables. It is installed by the customer in
a column for electrically height-adjustable tables. It is controlled by a control unit from LOGICDATA, to
which different hand switches can be connected. Several drives can be operated synchronously on one con-
trol unit.
3
4

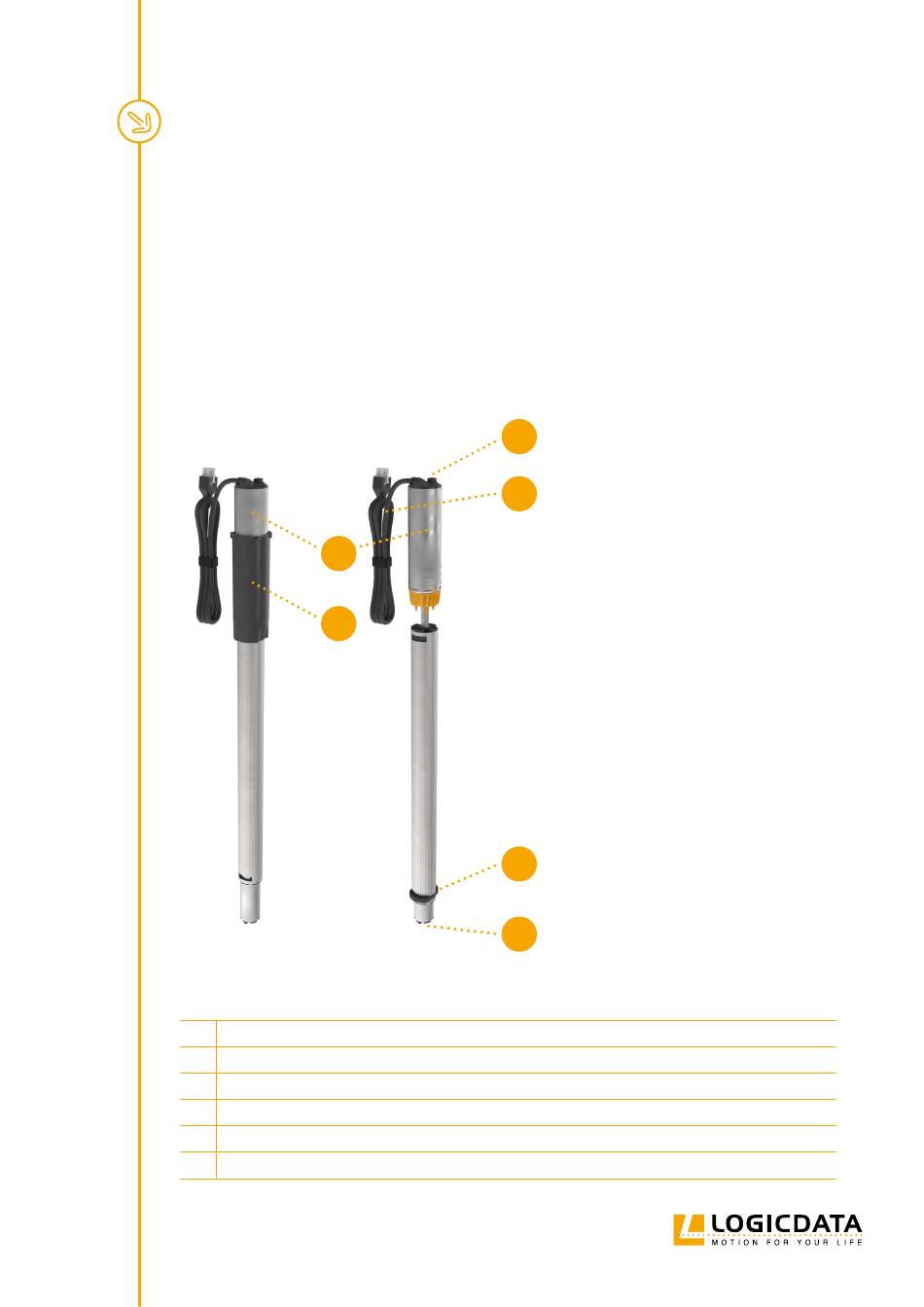

Fig. 1: DCDinline D
1 Attachment point on motor end (screws and rubber discs provided)
2 Connection cable
3 Motor
4 Attachment point middle tube with installation variant – thick end up
5 Attachment point middle tube with installation variant – thick end down
6 Flange attachment point
