DCDINLINE D MANUAL // PAGE 11
6.1.1
ACTUATOR DIMENSIONS

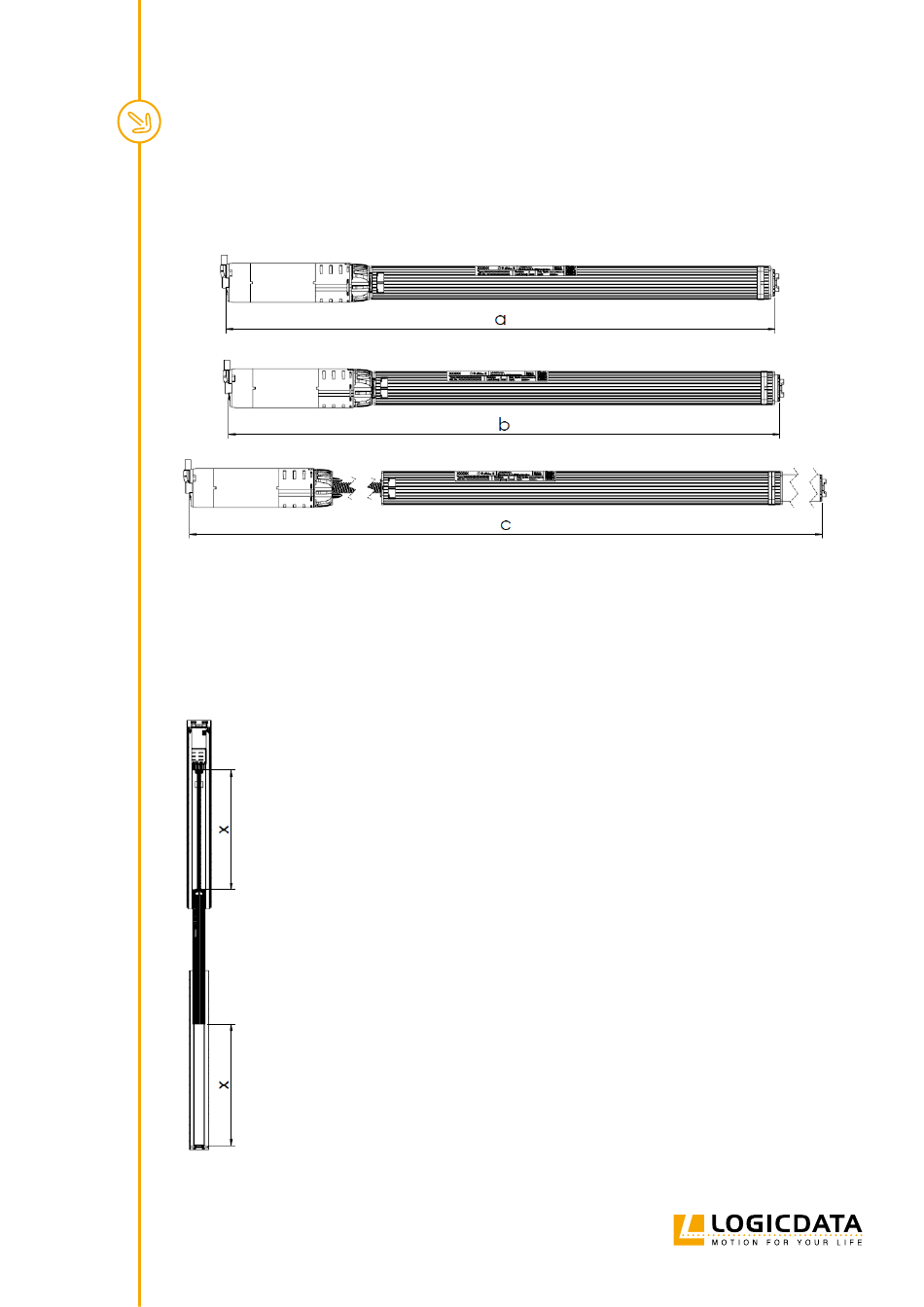

Figure 3 shows the dimensions of the DCDinline D actuator in the retracted and extended state.
Fig. 3: a: retracted length, b installation length, c extemded length
6.1.2 INSTALLATION OPTIONS
The DCDinline D is designed for synchronous movement of the middle tube.
Fig. 4: Synchronous movement of the middle tube results in the distances x being the same at all
times independently from the current height (middle tube removed for easier demonstration).
