Recommended assembly procedure:
NOTICE
The assembly procedure shown is based on a height-adjustable column design in
which the top plate can be removed (i.e., it is not permanently connected to the
thick end). For instructions on mounting with other height-adjustable column
constructions, please contact LOGICDATA.
NOTICE
We recommend measuring the friction of the tube pairs before
installing the drive! The combination of control unit and drive is
not a suitable means for measuring the friction!
Proceed with the following steps for the assembly with the installation variant "thick end up":
1. Assemble the counterpiece for the tube adapter (see Figure 6: Symbolic image of the counter-
piece for the tube adapter) in the middle tube.
2. Insert the three tubes into each other.
NOTICE
LOGICDATA recommends measuring the gliding properties of the height-adjustable
column without the installed drive after this step.
NOTICE
The maximum force on the tube adapter counterpart must not exceed 150N! This is
due to a difference in frictional forces be tween the tube pairs.
3. Mount the drive in the preassembled height-adjustable column (see Figure 7: Example of
actuator installation in a round height-adjustable column by rotationg it 1/8 turn clockwise
when seen from top).
4. Then make the attachment on the motor end and flange end according to Chapter 6.4 and
Chapter 6.5.

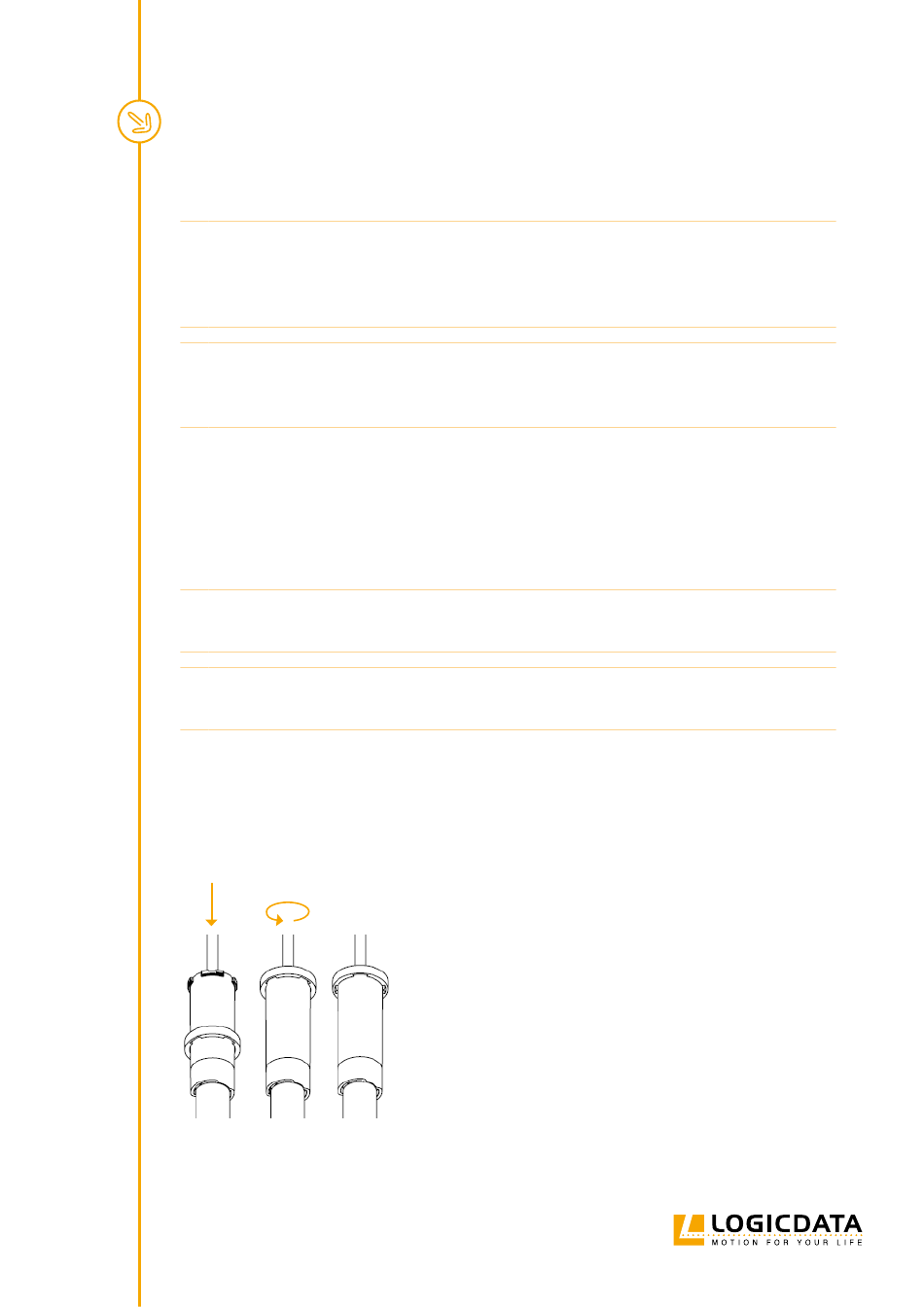

Fig. 7: Example of actuator installation in a round height-adjustable column
