Installation Tolerances - LOGICDATA DCDinline D Manual

For this it is necessary to connect the drive with the middle tube of the height-adjustable column. Depending
on the type of height-adjustable column design, different installation requirements must be taken into con-
sideration. In this document, the installation variants are characterized as follows, depending on the types
of height-adjustable columns:
• "Thick end up": In this variant, the tube with the largest diameter is at the top (table top).
• "Thick end down": In this variant, the tube with the largest diameter is at the bottom (floor).
The DCDinline D actuator can be used for both variants.

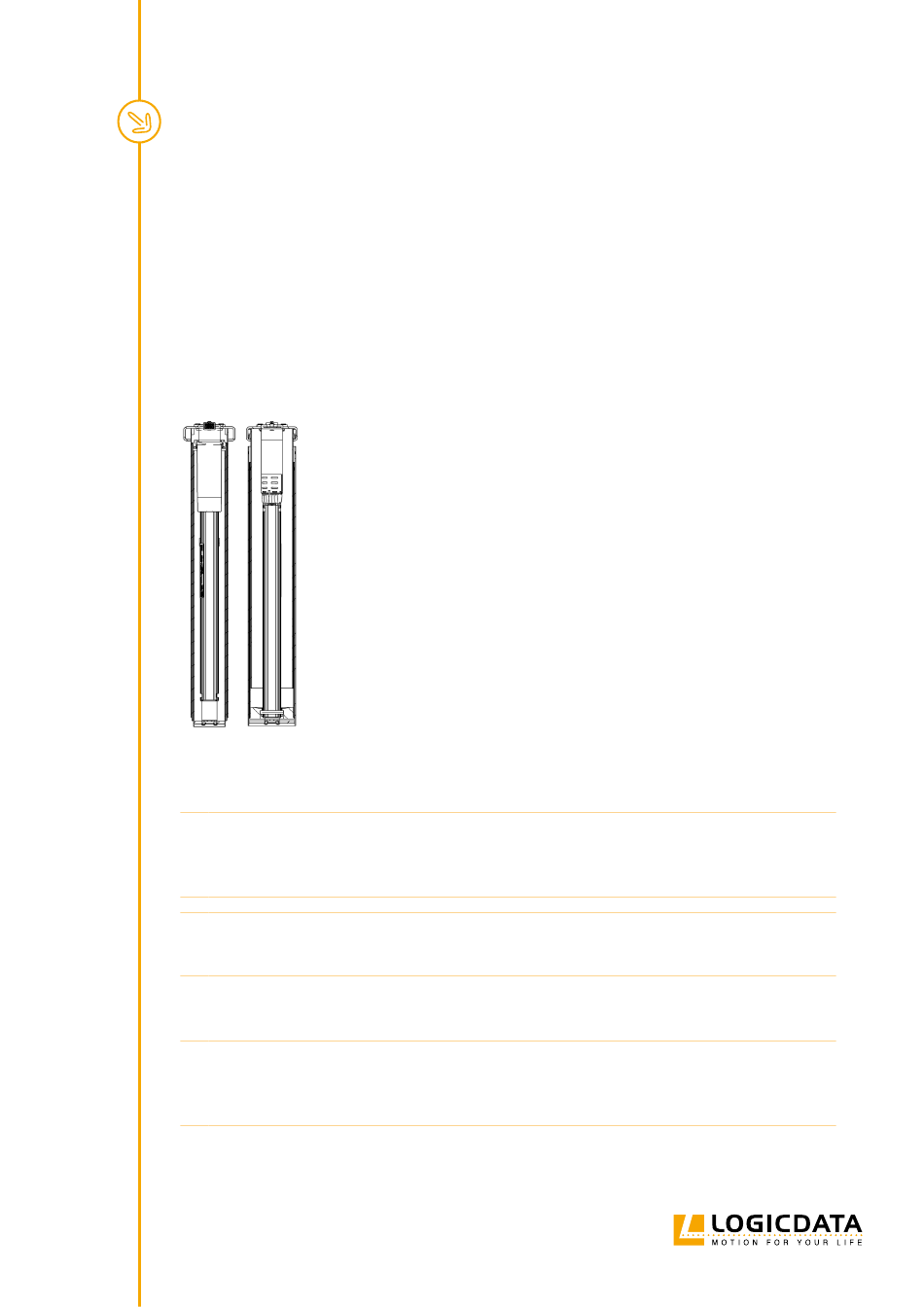

Fig. 5: "Thick end up" (left) and "Thick end down" (right) in retracted position
NOTICE
Regardless of the installation variant, the inner diameter of the inner tube must be
selected so that a surrounding air gap of min 3 mm between the inner wall of the tube
and the DCDinline D is guaranteed.
NOTICE
As shown in Figure 5, height-adjustable columns must be designed so that the motor
end of the DCDinline D is always up

6.1.3 INSTALLATION TOLERANCES

NOTICE
In order to ensure proper functioning, height-adjustable columns must comply with
the tolerances specified by LOGICDATA. Otherwise, the warranty claims are void.
These tolerances are published by LOGICDATA on request.
