6.3 ASSEMBLY "THICK END DOWN" VARIANT

The middle tube adapter is produced by the customer and is fixed in the middle tube. It is connected to the
drive in the installation variant "thick end down".
NOTICE
The design specifications for the middle tube adapter are available from LOGICDATA
only on request. These includes dimensions and tolerances as well as notes on
material selection and assembly.
CAUTION Danger due to insecure connection
To ensure a secure connection, the middle tube adapter must be designed exactly to
the specifications of LOGICDATA. Otherwise, the warranty claims are void.

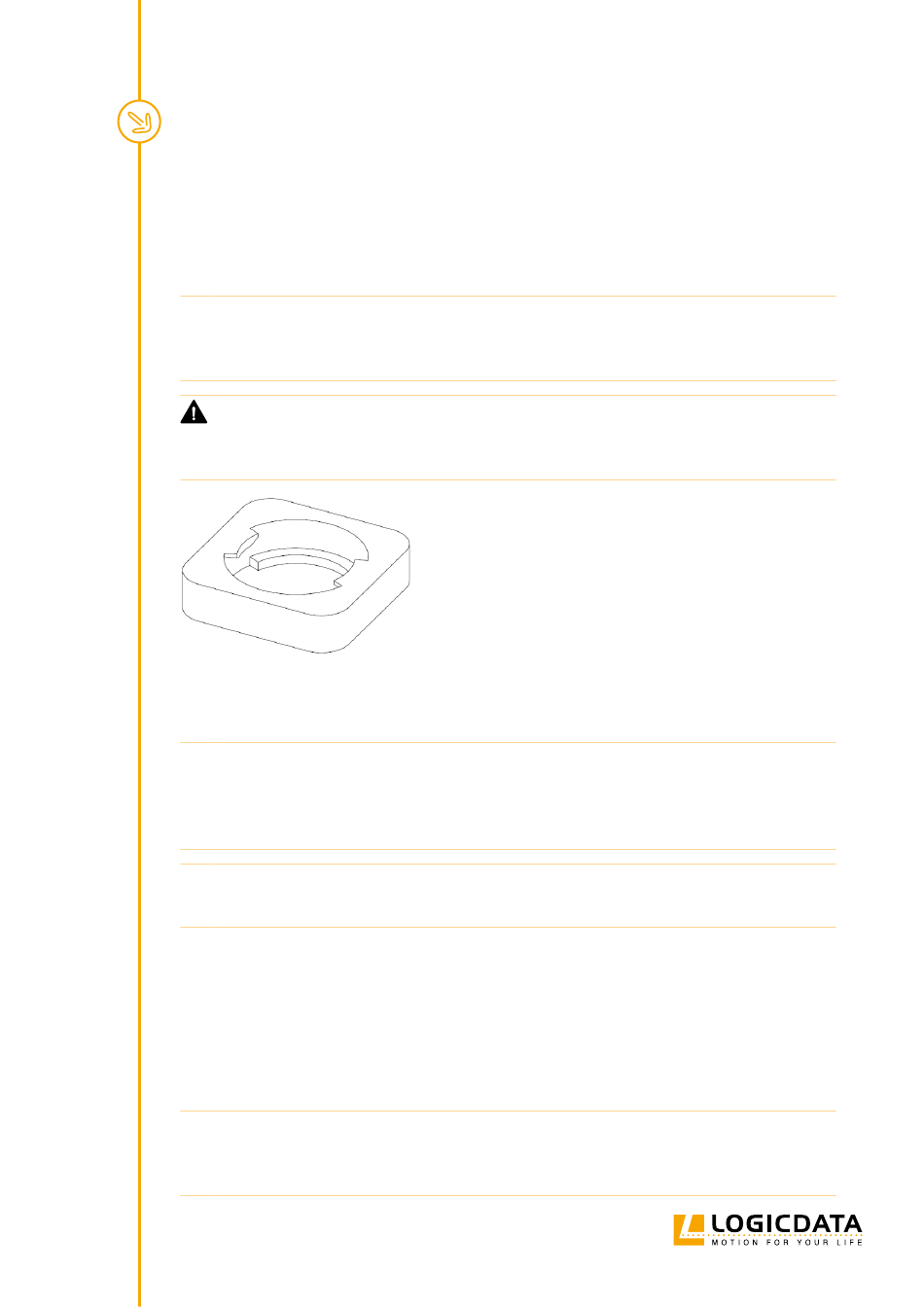

Fig. 8: Symbolic image of the middle tube adapter
Recommended assembly procedure:
NOTICE
The assembly procedure shown is based on a height-adjustable column design in
which the top plate can be removed (i.e., it is not permanently connected to the
inner tube). For instructions on mounting with other height-adjustable column
constructions, please contact LOGICDATA.
NOTICE
We recommend measuring the friction of the tube pairs before installing the drive! The
combination of control unit and drive is not a suitable means for measuring the friction!
Proceed with the following steps for the assembly with the installation variant "thick end down":
1. Assemble the middle tube adapter (see Figure 8: Symbolic image of the middle tube adapter)
in the middle tube.
2. Insert the three tubes into each other.
NOTICE
For suitable production aids, joining forces and joining speeds or detailed information
on the assembly process, please contact LOGICDATA. Failure to perform the joining
process properly may result in damage to the DCDinline D.
