6.1.4 DEFAULT SETTINGS

NOTICE
Failure to follow the instructions below may result in damage!
NOTICE
LOGICDATA recommends measuring the dimensions of the DCDinline D before
assembly with a gauge or other suitable measuring equipment.
NOTICE
In order to utilize the complete stroke of the drive, a corresponding design of the
height-adjustable column is necessary. It is important that the drive reaches the final
position before the tube.
NOTICE
Deviating flange settings may only be implemented in consultation with LOGICDATA.

6.2 ASSEMBLY "THICK END UP" VARIANT

This chapter explains the installation with installation option "thick end up" in more detail. If you are using
the installation of the "thick end down" column, skip this chapter and continue with 6.3.

6.2.1 ATTACHING THE MIDDLE TUBE

The tube adapter is intended to connect the drive with the middle tube of the height-adjustable column via
a special counterpiece (see Figure 6: Symbolic image of the counterpiece for the tube adapter).
NOTICE
The design specifications for the customer-provided counterpiece are available from
LOGICDATA only on request. These includes dimensions and tolerances as well as
notes on material selection and assembly.
CAUTION Danger due to insecure connection
To ensure a secure connection, the counterpiece must be designed exactly to the
specifications of LOGICDATA. Otherwise, the warranty claims are void.

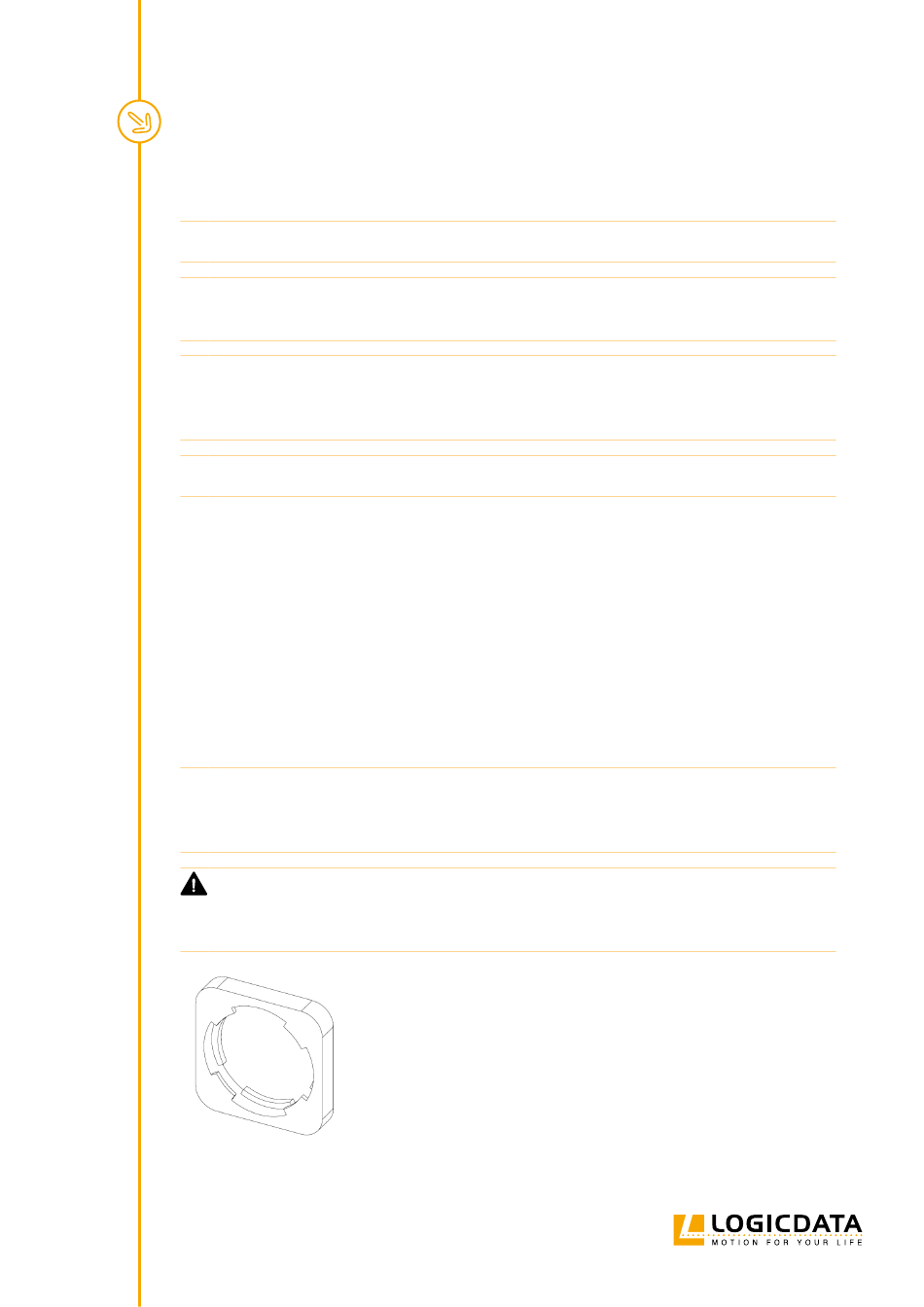

Fig. 6: Symbolic image of the counterpiece for the tube adapter
