Defining EXT3-U-R

This section defines EXT3-U-R.
# Feature
LINK LED
9
AUDIO OUT 3.5mm Mini Jack
10
USB 2 Type A Ports (1 to 4)
11
ON LED
12
LINK IN RJ-45 Connector
13
PROG (Tx, Rx)
14
RS-232 (Rx, Tx)
15
12V DC Power Connector
16
EXT3-U-KIT – Defining EXT3-U-KIT USB 2.0, RS-232 & Audio Extender

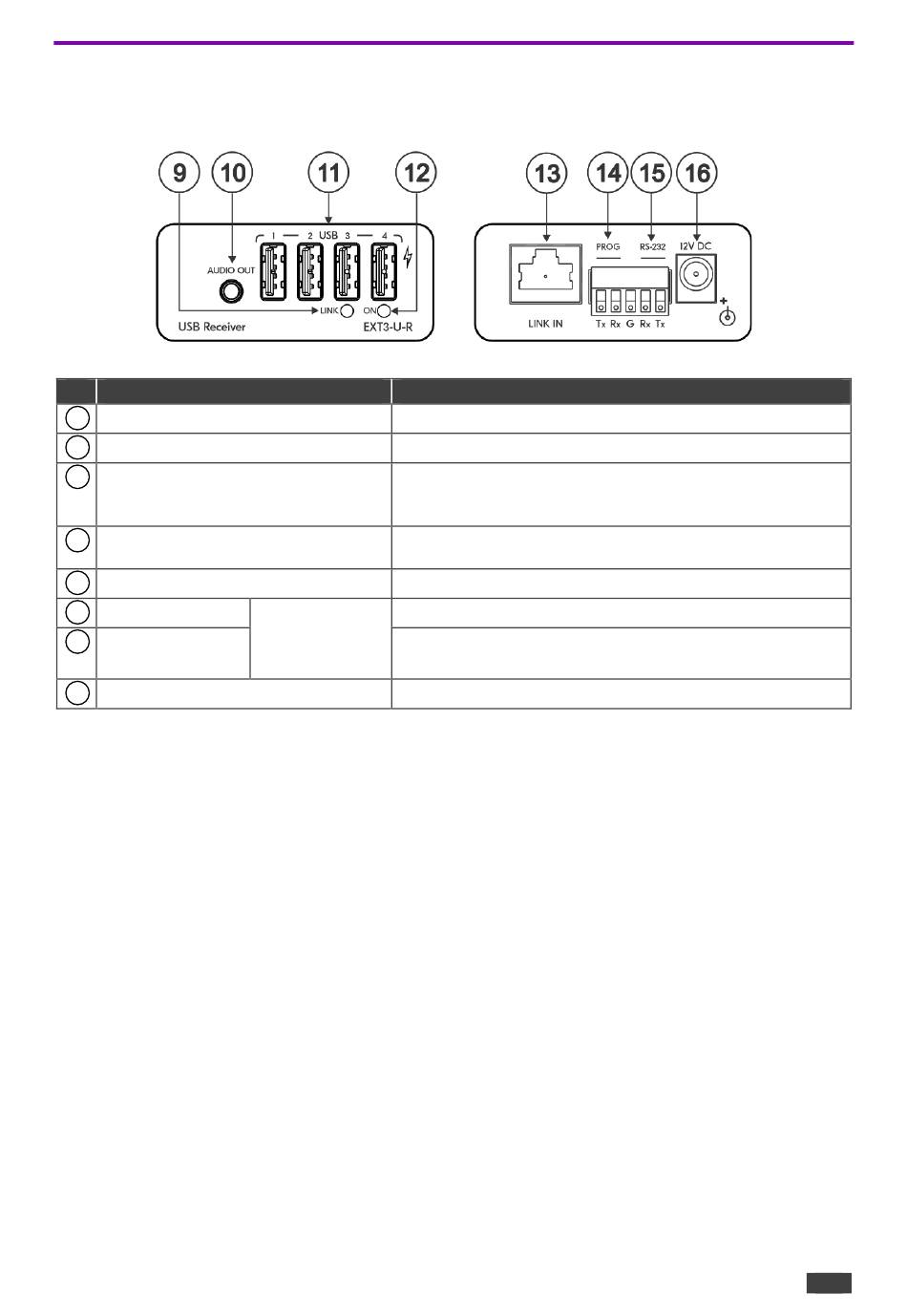

Figure 2: EXT3-U-R USB Receiver
Function
Flashes blue when a link is established.
Connect to an unbalanced stereo audio acceptor.
Connect to USB devices.
Connect
charge USB devices.
Lights green when locally powered by the power adapter.
Lights orange when powered by PoC.
Connect to the LINK OUT port on the EXT3-U-T.
5-pin Terminal Connect for firmware upgrade (for factory use only).
Block Connector
Connect for serial extension (9600 baud rate).
(with common G
pin)
Connect to the supplied power adapter.
EXT3-U-T directly to the power adapter in order to
