SB i16 and SB 8.8 User Guide

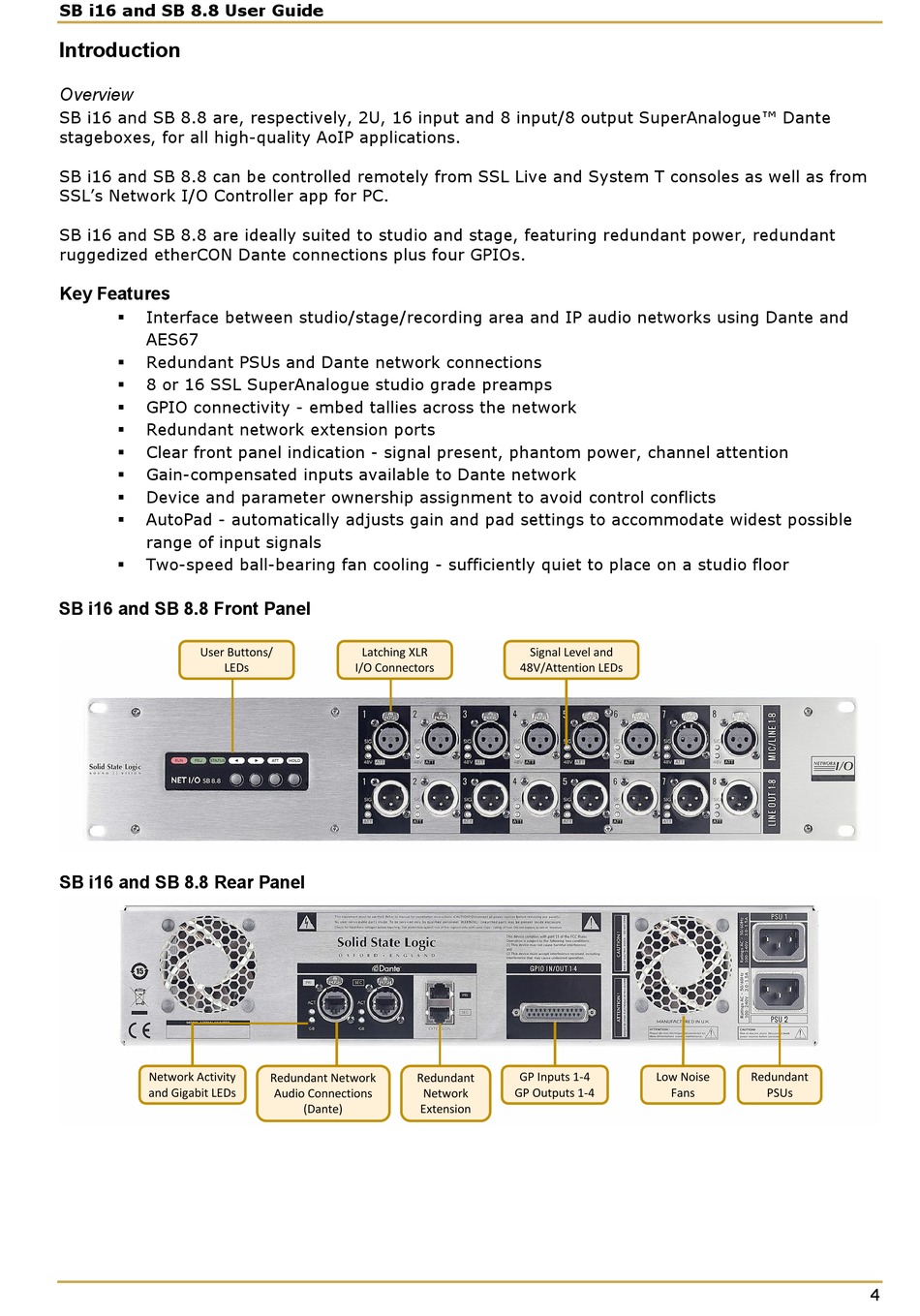

Introduction

Overview

SB i16 and SB 8.8 are, respectively, 2U, 16 input and 8 input/8 output SuperAnalogue™ Dante
stageboxes, for all high-quality AoIP applications.
SB i16 and SB 8.8 can be controlled remotely from SSL Live and System T consoles as well as from
SSL's Network I/O Controller app for PC.
SB i16 and SB 8.8 are ideally suited to studio and stage, featuring redundant power, redundant
ruggedized etherCON Dante connections plus four GPIOs.

Key Features

Interface between studio/stage/recording area and IP audio networks using Dante and

AES67
Redundant PSUs and Dante network connections

8 or 16 SSL SuperAnalogue studio grade preamps

GPIO connectivity - embed tallies across the network

Redundant network extension ports

Clear front panel indication - signal present, phantom power, channel attention

Gain-compensated inputs available to Dante network

Device and parameter ownership assignment to avoid control conflicts

AutoPad - automatically adjusts gain and pad settings to accommodate widest possible

range of input signals
Two-speed ball-bearing fan cooling - sufficiently quiet to place on a studio floor


SB i16 and SB 8.8 Front Panel

User Buttons/
LEDs

SB i16 and SB 8.8 Rear Panel

Network Activity
and Gigabit LEDs
Latching XLR
I/O Connectors
Redundant Network Redundant
Audio Connections Network
(Dante) Extension
Signal Level and
48V/Attention LEDs
GP Inputs 1-4 Low Noise
GP Outputs 1-4 Fans
Redundant
PSUs
