Calibration Point

The Calibration point is the value at which the analogue gain equals a digital trim value of 0 dB, i.e.
there is no digital trim applied. Digital trim will be applied when the analogue gain level is above or
below the Calibration point.

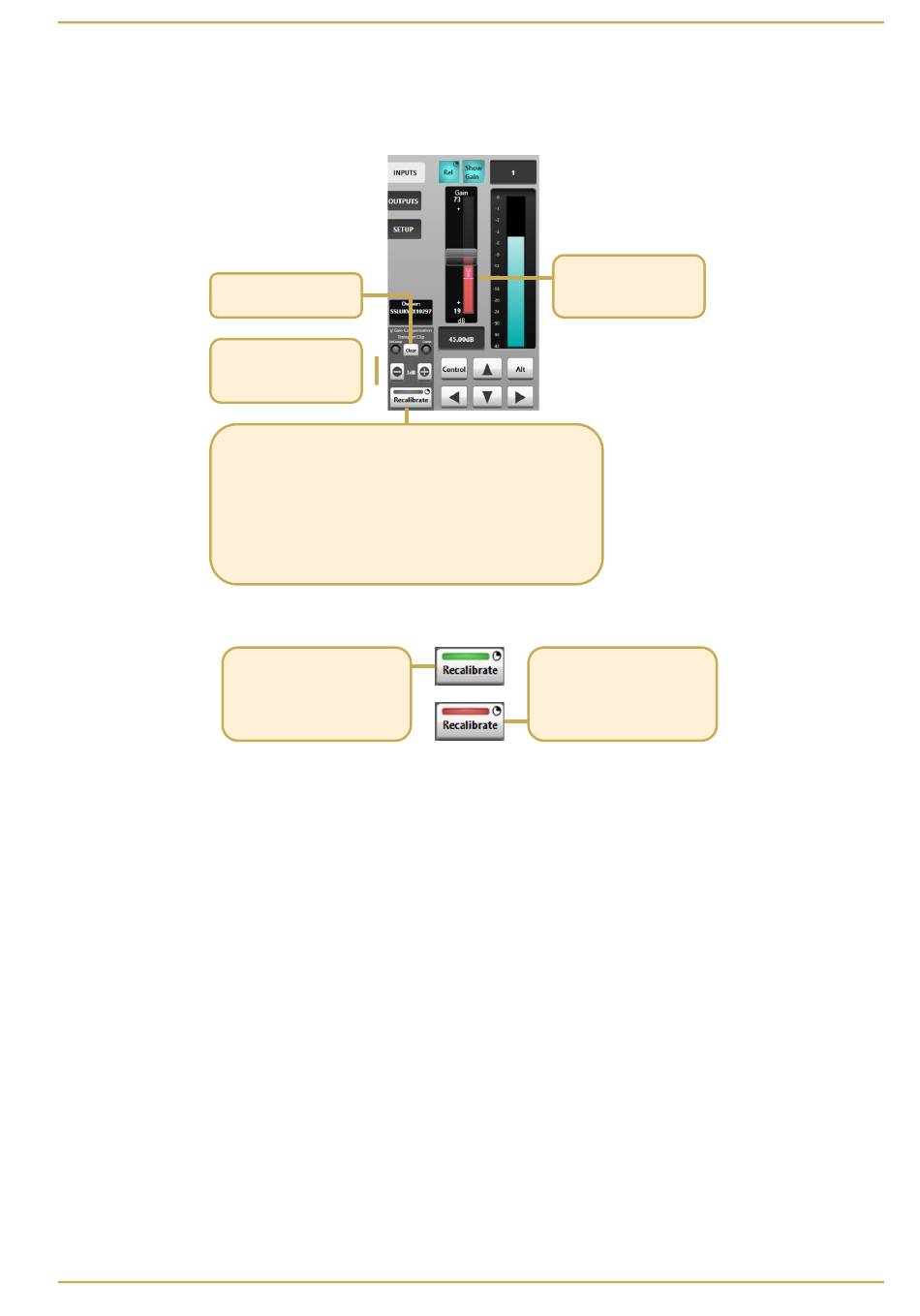

Clear removes the clip
indicator.
Pressing the ±3 dB buttons
adjusts the Calibration
point by ±3 dB.
Press and hold Recalibrate to:
Recalibrate the compensated gain value to match the current analogue
gain value when in Line mode (removing any digital trim).
Recalibrate the compensated gain value to 10 dB under the current
analogue gain value when in Mic mode. This feature has been designed
to protect the compensated signal against digital clipping in the event
that the analogue gain control is drastically reduced.

Recalibrate Indication

The Recalibrate colour bar will
light green if recalibration would
decrease the level of the
compensated signal.
The Calibration point is
indicated on the fader
level bar as γ.
The Recalibrate colour bar will
light red as a warning that
recalibration would increase the
level of the compensated signal.
