SB i16 and SB 8.8 User Guide

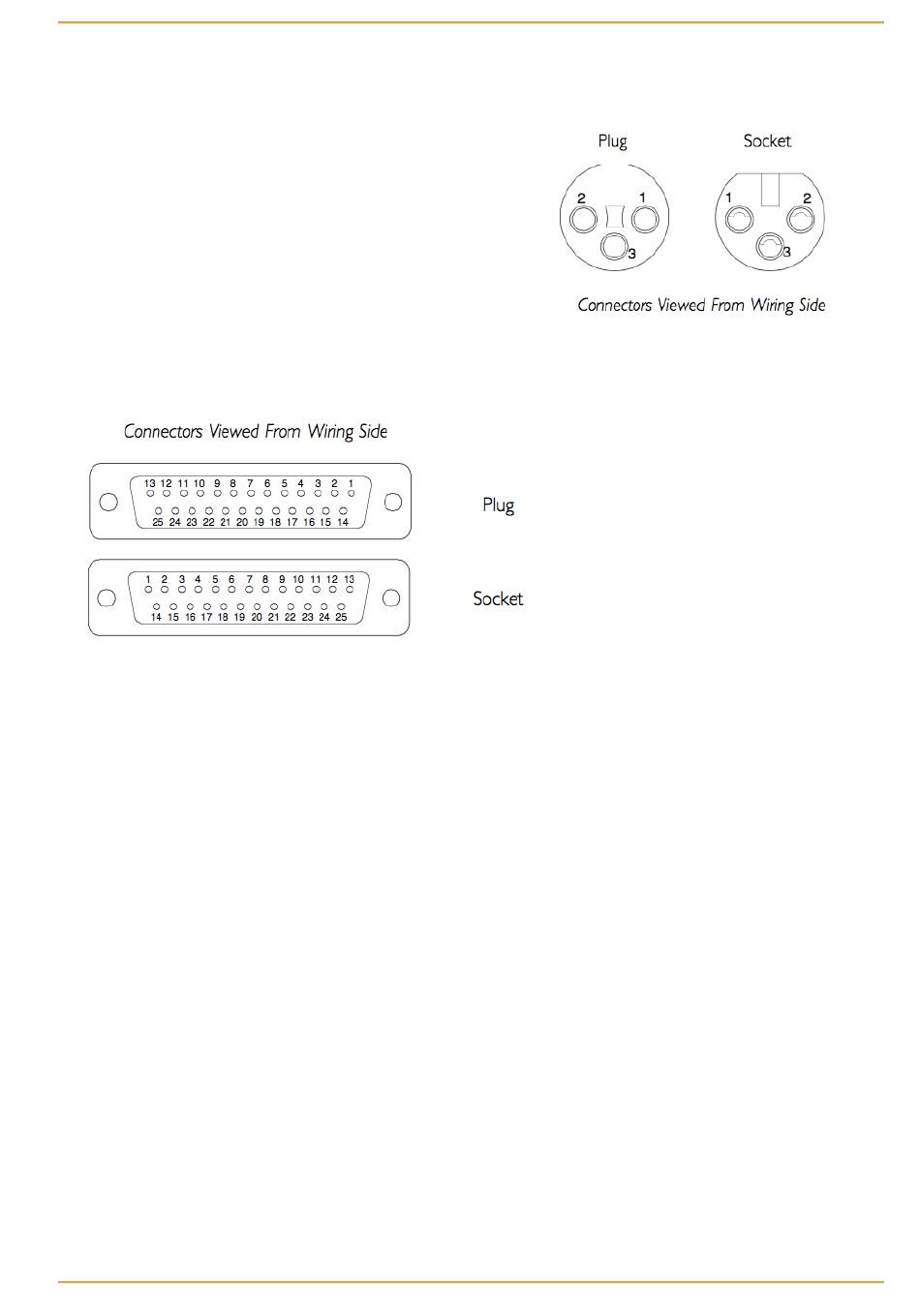

Appendix B - Connector Pin Outs

XLR Wiring

Dimensions:
19 x 60 mm (approx.)
Cable Diameter:
8-12 mm (typical)
Pinout for balanced audio:
Pin 1
Screen/Ground
Pin 2
Hot (+ve)
Pin 3
Cold (-ve)

D-Type Multipin Wiring

25-way
Dimensions:
55 x 15 mm (approx.)
Cable Diameter:
8 mm (typical)
Screwlock thread:
440-UNC
23
