  • Page 1 SB i16 and SB 8.8 Network I/O User Guide Revision: 1.2...
  • Page 2 As research and development is a continual process, Solid State Logic reserves the right to change the features and specifications described herein without notice or obligation. Solid State Logic cannot be held responsible for any loss or damage arising directly or indirectly from any error or omission in this manual.

  • Page 3: Table Of Contents

    SB i16 and SB 8.8 User Guide Table of Contents Introduction Gain Compensation Overview Compensated Ports Key Features Calibration Point SB i16 and SB 8.8 Front Panel Recalibrate Indication SB i16 and SB 8.8 Rear Panel Status LEDs and User Buttons...

  • Page 4: Introduction

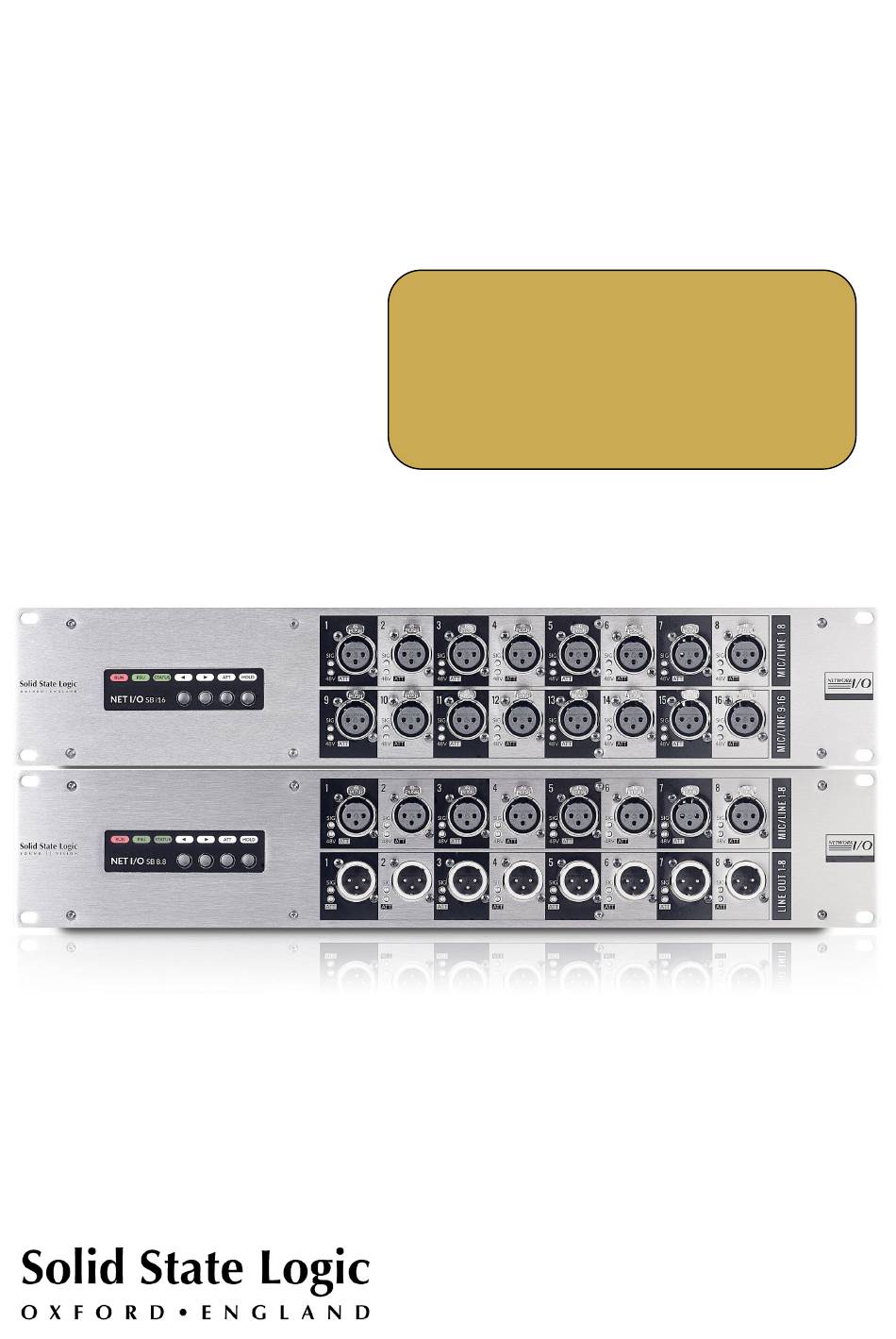

    SB i16 and SB 8.8 are, respectively, 2U, 16 input and 8 input/8 output SuperAnalogue™ Dante stageboxes, for all high-quality AoIP applications. SB i16 and SB 8.8 can be controlled remotely from SSL Live and System T consoles as well as from SSL’s Network I/O Controller app for PC.

  • Page 5: Status Leds And User Buttons

    SB i16 and SB 8.8 User Guide Status LEDs and User Buttons Green (solid) - normal operation: processor running ATT (Attention) allows a user to ‘push’ attention (for and Dante networks connected the already selected channel) to the software control application for swift identification of inputs or outputs.

  • Page 6: Hardware Connections

    Hardware Connections Mains Power Connections SB i16 and SB 8.8 include redundant PSUs with IEC C14 inlets. Either supply can individually power the unit. Ideally these should be connected to separate power circuits to provide redundancy of incoming AC power.

  • Page 7: Ssl Network I/O Controller

    SB i16 and SB 8.8 User Guide SSL Network I/O Controller Installing Network I/O Controller When SSL Network I/O is used without an SSL console, configuration and control is achieved using the SSL Network I/O Controller PC application. This can be downloaded from the SSL website as part of the Network I/O Stagebox upgrade package or as a standalone installer.

  • Page 8: Application Navigation

    SB i16 and SB 8.8 User Guide Application Navigation Network I/O Controller is divided between three tabs: Control, Settings and Devices. These are accessed from the right hand side of the application. The Control view is the main application window, providing real- time control and monitoring of the connected SSL Network I/O devices.

  • Page 9: Network View

    SB i16 and SB 8.8 User Guide Network View A Red Highlight indicates a device that requires operator action: Device Name Selected device is highlighted • A flashing red background indicates a device with a clipping audio channel is set within with a cyan outline.

  • Page 10: Inputs/Outputs

    SB i16 and SB 8.8 User Guide Inputs/Outputs Select the Inputs or Outputs tab in the Page Select area to view I/O available on the network. Inputs Control Status shows whether the viewer has control of the input’s parameters. Each individual channel has independent ownership.

  • Page 11: Outputs

    GPIO The SB i16 and SB 8.8 are equipped with 4 GP input and 4 GP output circuits. Inputs are opto- isolated voltage triggered and output closures are via DIL relay. See Appendix B for connector pinout and contact ratings.

  • Page 12: Setup

    SB i16 and SB 8.8 User Guide Setup Press Setup in the Page Select area to display the system configuration information. Stagebox Ownership and Inputs Ownership settings are detailed under Ownership. Info shows the status of the Operating Level allows selection Name shows the device device’s redundant power...

  • Page 13: Devices View

    SB i16 and SB 8.8 User Guide Devices View The Devices tab provides management of the I/O devices displayed in the Control View. Device Filtering allows Network I/O device types to be hidden, both from the Control View and the Control View Filtering and Sorting section. An example use case may be to hide all compensated devices so that the Control View only shows the gain tracked signals, not the compensated split feeds.

  • Page 14: Ownership

    Note that multiple consoles can share the same input signal but only one device can control the input parameters. Altering the input settings will affect all consoles using the input. N.B. Ownership settings are stored on the SB i16 and SB 8.8. The mute state is stored in volatile...

  • Page 15: Individual Input Ownership

    SB i16 and SB 8.8 User Guide Individual Input Ownership One of three options will be displayed when an input is selected on a device, depending on the current ownership state. These options are Own, Take and Release: Inputs owned by another controller have a press and hold Take button.

  • Page 16: Gpo Ownership

    SB i16 and SB 8.8 User Guide GPO Ownership The four GPO connections also have ownership status. The available ownership states are identical to those for stagebox inputs. Unowned GPOs have a press and hold Own button and show there is...

  • Page 17: Gain Compensation

    SB i16 and SB 8.8 User Guide Gain Compensation Each stagebox mic/line input has two transmit channels that can be subscribed to from the Dante network. Main channels follow the mic gain as set by the controller. Compensated channels nullify mic gain changes by applying a digital trim offset which is the opposite of any analogue gain changes.

  • Page 18: Calibration Point

    SB i16 and SB 8.8 User Guide Calibration Point The Calibration point is the value at which the analogue gain equals a digital trim value of 0 dB, i.e. there is no digital trim applied. Digital trim will be applied when the analogue gain level is above or below the Calibration point.

  • Page 19: Pad

    SB i16 and SB 8.8 User Guide The SB i16 and SB 8.8 have two pad modes, Traditional and AutoPad. The pad mode is selected per stagebox (applied to all inputs) from the SETUP tab of the stagebox within Network I/O Controller.

  • Page 20: Autopad

    SB i16 and SB 8.8 User Guide AutoPad AutoPad provides the entire possible gain range to the operator and silently applies the pad when the gain range is set to a low value that requires the pad to achieve. Mic gain range with...

  • Page 21: Dante Controller

    SB i16 and SB 8.8 User Guide Dante Controller Refer to Audinate’s Dante Controller user guide for complete information on Dante Controller software. The information below details the basics required to get started. Clock sync, device naming, AES67 configuration and network management are all done within Dante Controller.

  • Page 22: Appendix A - General Specifications

    SB i16 and SB 8.8 User Guide Appendices Appendix A – General Specifications The following specifications are the same for both the SB i16 and SB 8.8. Parameter Value Notes Depth 300 mm ( 12") Height 88.5 mm ( 3.5")

  • Page 23: Appendix B - Connector Pin Outs

    SB i16 and SB 8.8 User Guide Appendix B - Connector Pin Outs XLR Wiring Dimensions: 19 x 60 mm (approx.) Cable Diameter: 8-12 mm (typical) Pinout for balanced audio: Pin 1 Screen/Ground Pin 2 Hot (+ve) Pin 3 Cold (-ve)

  • Page 24: Gpio

    SB i16 and SB 8.8 User Guide GPIO GP Outputs All output switch closures are via DIL relay. DO NOT use these outputs to directly switch capacitive or reactive loads; always use a separate external relay with suitable contact rating.

  • Page 25: Appendix C - Performance Specifications

    SB i16 and SB 8.8 User Guide Appendix C – Performance Specifications Mic/Line Inputs Parameter Value Notes Gain Range +5 to 79 dB 0 dBFS, MDAC continuous gain Maximum Input Level +28 dBu Pad inserted Frequency Response ± 0.25 dB Mic mode, 20 Hz –...

  • Page 26: Line Outputs

    SB i16 and SB 8.8 User Guide Line Outputs Parameter Value Notes Maximum Output Level +24 dBu 600 Ω / 10 kΩ load Output Impedance < 50 Ω Frequency Response ± 0.2 dB -0.5 dBFS, 20 Hz – 15 kHz - 0.5 dB...

  • Page 27: Appendix D - Safety Notices

    SB i16 and SB 8.8 User Guide Appendix D – Safety Notices General Safety Please read and keep this document. Adhere to all warnings and follow instructions. This electrical equipment should not be used near water. Cleaning should only be with dry cloths or products compatible with electrical devices –...

  • Page 28: Power Safety

    SB i16 and SB 8.8 User Guide Power Safety The unit is not supplied with a mains lead allowing you to use IEC distribution of mains cables of your choice. Any mains cable used must fulfil the following: Refer to the ratings label on the rear of the unit and always use suitable mains cords.

  • Page 29: Environmental Declaration

    RoHS Notice Solid State Logic has conformed and this product has conformed to European Union’s Directive 2011/65/EU on Restrictions of Hazardous Substances (RoHS) as well as the following sections of California law which refer to RoHS, namely sections 25214.10, 25214.10.2, and 58012, Health and...
