SB i16 and SB 8.8 User Guide

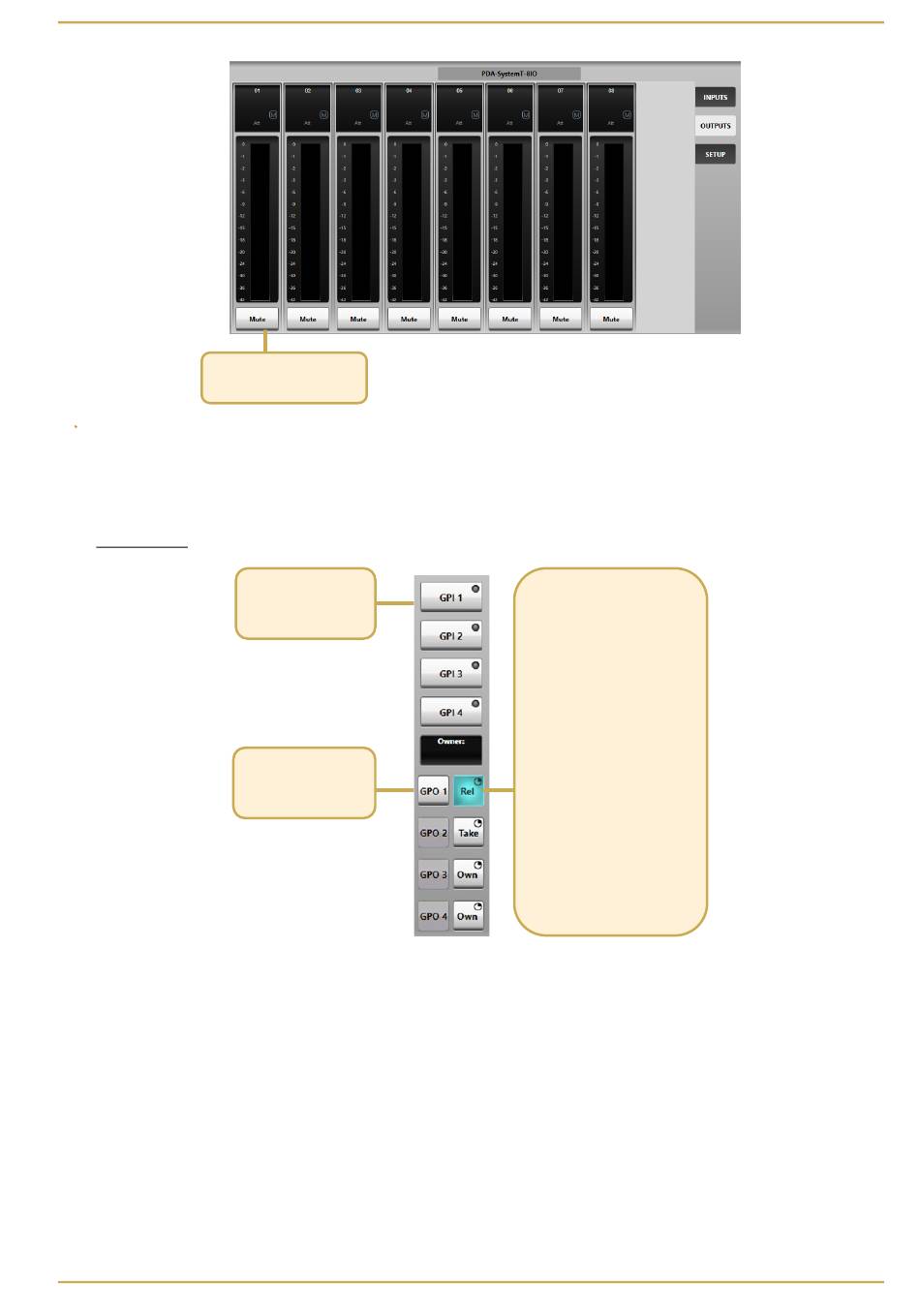

Outputs
Mute allows individual
outputs to be muted.
GPIO
The SB i16 and SB 8.8 are equipped with 4 GP input and 4 GP output circuits. Inputs are opto-
isolated voltage triggered and output closures are via DIL relay.
See Appendix B for connector pinout and contact ratings.
GPI button LEDs show
the state of each GPI.
GPOs can be individually
triggered using the
associated button.
Control Status shows whether
the viewer has control of the
GPO's parameters.
Each
individual GPO has independent
ownership.
Rel in cyan indicates that this
GPO is under the control of the
viewer. Press and hold to
relinquish control.
Take indicates that this GPO is
NOT under the control of the
viewer. Press and hold to take
control from the owner.
Own indicates that this GPO is
not owned by any controller.
Press and hold to take
ownership of this input.
11
