SB 32.24 and SB 16.12 User Guide

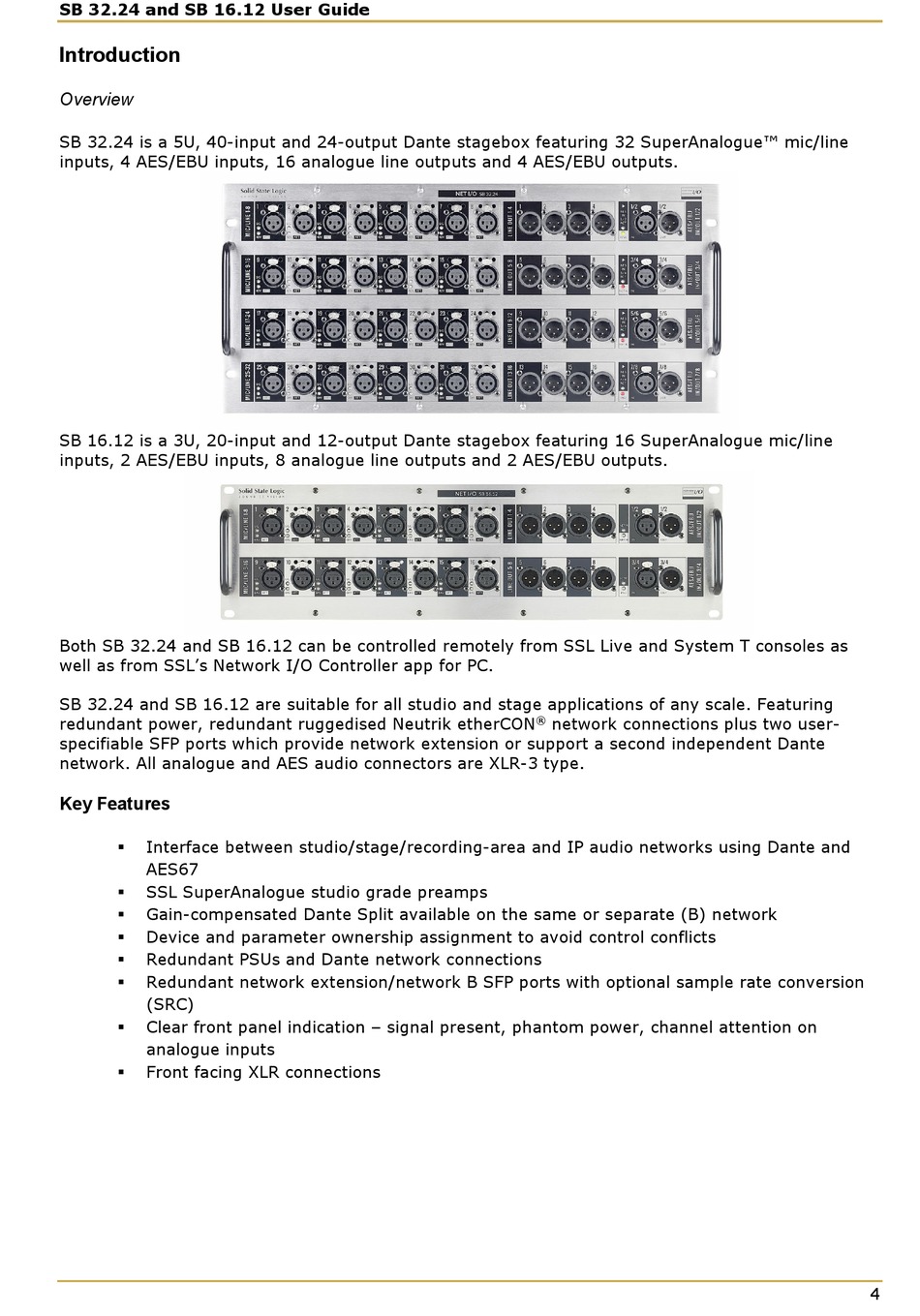

Introduction

Overview

SB 32.24 is a 5U, 40-input and 24-output Dante stagebox featuring 32 SuperAnalogue™ mic/line
inputs, 4 AES/EBU inputs, 16 analogue line outputs and 4 AES/EBU outputs.
SB 16.12 is a 3U, 20-input and 12-output Dante stagebox featuring 16 SuperAnalogue mic/line
inputs, 2 AES/EBU inputs, 8 analogue line outputs and 2 AES/EBU outputs.
Both SB 32.24 and SB 16.12 can be controlled remotely from SSL Live and System T consoles as
well as from SSL's Network I/O Controller app for PC.
SB 32.24 and SB 16.12 are suitable for all studio and stage applications of any scale. Featuring
redundant power, redundant ruggedised Neutrik etherCON
specifiable SFP ports which provide network extension or support a second independent Dante
network. All analogue and AES audio connectors are XLR-3 type.

Key Features

Interface between studio/stage/recording-area and IP audio networks using Dante and

AES67
SSL SuperAnalogue studio grade preamps

Gain-compensated Dante Split available on the same or separate (B) network

Device and parameter ownership assignment to avoid control conflicts

Redundant PSUs and Dante network connections

Redundant network extension/network B SFP ports with optional sample rate conversion

(SRC)
Clear front panel indication – signal present, phantom power, channel attention on

analogue inputs
Front facing XLR connections

® network connections plus two user-
4
