Application Navigation

Network I/O Controller is divided between three tabs: Control, Settings and Devices. These are
accessed from the right hand side of the application.
The Control view is the main
application window, providing real-
time control and monitoring of the
connected SSL Network I/O devices.
The Devices tab provides tools for
filtering, hiding and sorting the I/O
devices shown in the Control tab.
The application can be resized horizontally and vertically to fit the display as desired. Click and drag
from the side or corner of the application to resize. With the Control tab visible, increasing the
window width allows more devices and input metering in the Network View, plus displays more
channels for control in the Detail View. Increasing the window height provides larger metering in
Network View and a longer fader for each input in the Detail View.
When set to full screen on a 1920x1080 display 16 channels are displayed in the Detail View.

Control View

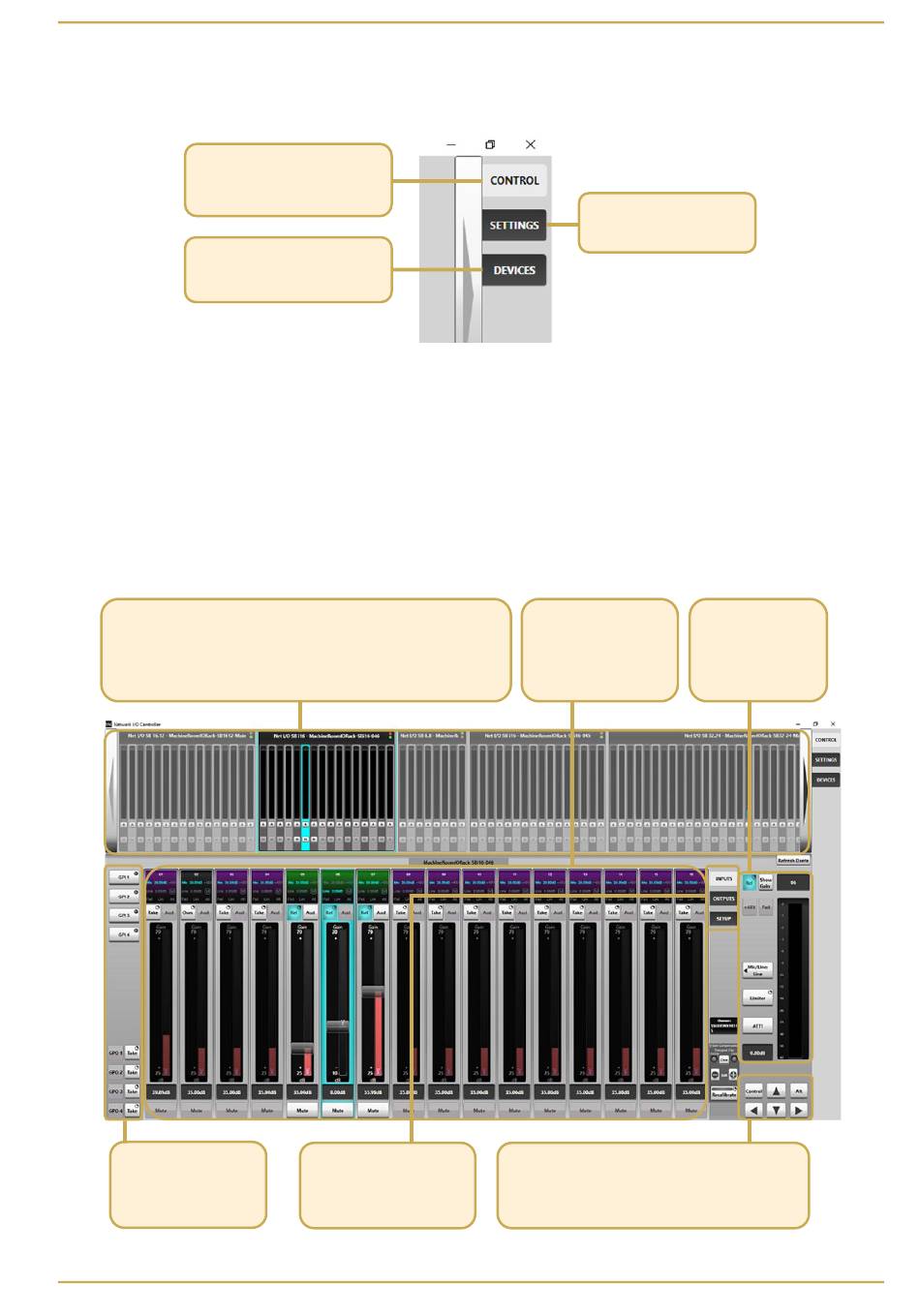

The Control tab is divided into five sections:
Network View shows each SSL device on the Dante network. Input meters
are shown for every analogue input. The D64 is displayed as a narrow
device with no input metering. Selecting a device brings its parameters into
the Detail View. Selecting an input brings the input into the Focus View.
Large arrows on the far left and right scroll for more devices.
GPIO View shows the
active status for each GPI
and GPO.
Page Select selects the Detail
View to show inputs, outputs,
or setup options for each
device.
The Settings tab provides
access to Dante Domain
Manager connection settings.
Detail View shows channel
details for the selected
device. Left/right
navigation controls scroll
for more channels.
Navigation switches the in-focus channel and allows for
gain adjustment. These arrows are also mapped to the
PC keyboard. Control toggles fine (0.1 dB) gain
adjustment and Alt coarse (3 dB) gain adjustment.
Focus View shows an
expanded view of the
selected channel.
