GPIO

GP Outputs
All output switch closures are via DIL relay.
DO NOT use these outputs to directly switch capacitive or reactive loads; always use a separate
external relay with suitable contact rating.
DIL Relay Ratings:
• 100 V DC, 125 V AC
• 100 mA max.
GP Inputs

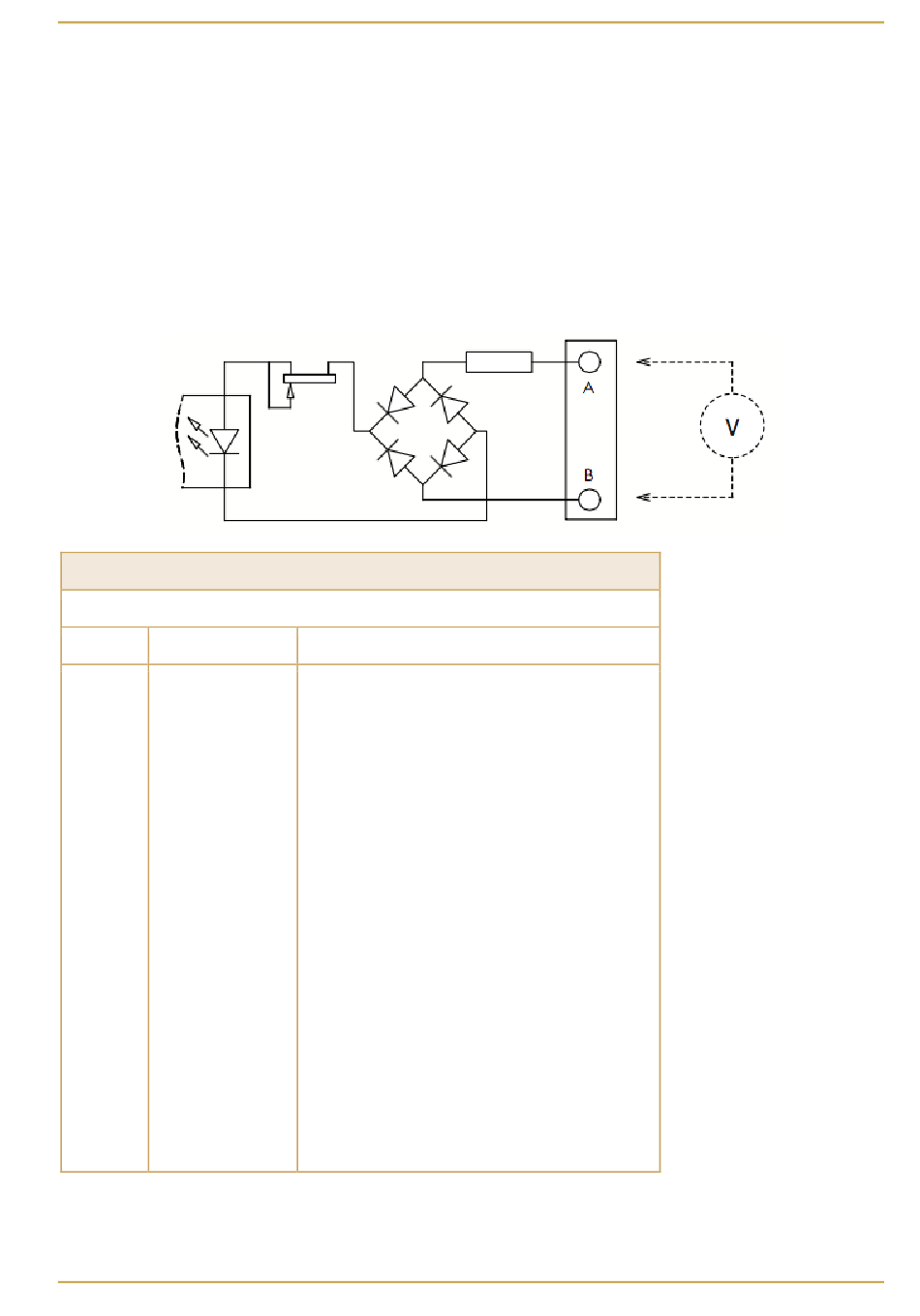

Inputs are triggered by applying an AC or DC voltage of between 4 V and 24 V. The current drawn is
approximately 10mA. Minimum input pulse duration 50ms.
GP Inputs / Outputs
Connector Type:
Pin Description
1 Input 1A
14 Input 1B
2
Input 2A
15 Input 2B
3 Input 3A
16
Input 3B
4 Input 4A
17 Input 4B
5
18
6
19
7
+12 V Output
20 Chassis
8 Output 1A
21 Output 1B
9 Output 2A
22 Output 2B
10 Output 3A
23
Output 3B
11 Output 4A
24 Output 4B
12
25
13 +12 V Output
25-way D-type male
Notes:
See input requirements above
0.5 A max (both pins), Linked to pin 13
Reference for 12 V output
See contact ratings above
As pin 7
