Status LEDs and User Buttons

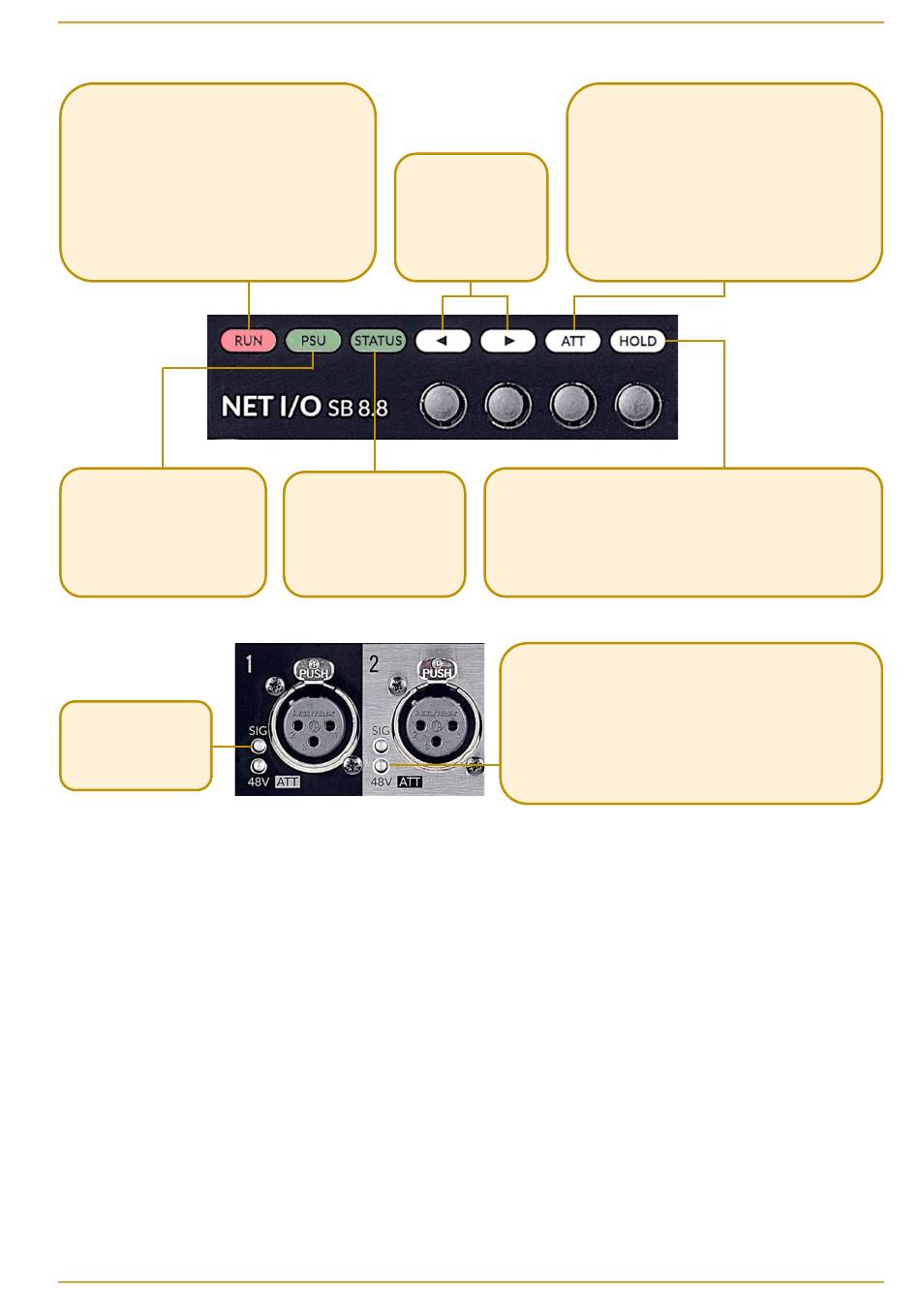

Green (solid) - normal operation: processor running
and Dante networks connected
Green (blinking) - booting/reconfiguring
Red (solid) - loss of primary network
Red (flashing) - loss of secondary network
N.B. If both networks are lost the RUN LED will be solid
red
Green - normal operation, both
power supplies active
Red - primary or secondary power
supply inactive

Channel LEDs

SIG analogue signal LEDs
are green above -40 dBFS
and red at -0.1 dBFS
(clipping)

Device Reset

Performing a device reset will clear the SSL device settings. This includes ownership, input and GPIO
states. This does not clear Dante Brooklyn card settings.

Brooklyn Reset

Resetting the Dante Brooklyn card to default settings is performed from Dante Controller. Under the
Device Config tab for a device select Clear Config. This clears the device name, channel labels, IP
address settings, sample rate, latency and existing audio routes. This does not clear SSL Ownership
settings.
◂ ▸ Arrows are for
channel selection - when
using the arrow buttons,
the attention LED will
flash red on the selected
channel
Green - normal operation
Red - indicates a fault has
occurred, refer to the setup
information window
ATT (Attention) allows a user to 'push' attention (for
the already selected channel) to the software control
application for swift identification of inputs or outputs.
Easily and quickly identify channels of interest between
the studio floor and the control room.
Multiple channels can have Attention active.
Pressing the ATT button again on the selected channel
will cancel the Attention signal.
If HOLD and ◂ are held for 3 seconds then the primary Dante network
connection will reset to use DHCP - once released the unit must be
rebooted
If HOLD and ATT are pressed for 3 seconds this will perform a device
reset - once released the unit must be rebooted
48V/ATT indicates phantom power and/or attention depending on
red, green, or flashing combinations as follows:
Red (solid) – phantom power on
Green (flashing) – channel attention active
Green and red (flashing) – phantom power on and channel attention
active
