HC Bridge SRC User Guide
Appendix B - GPIO Connector Pin Outs

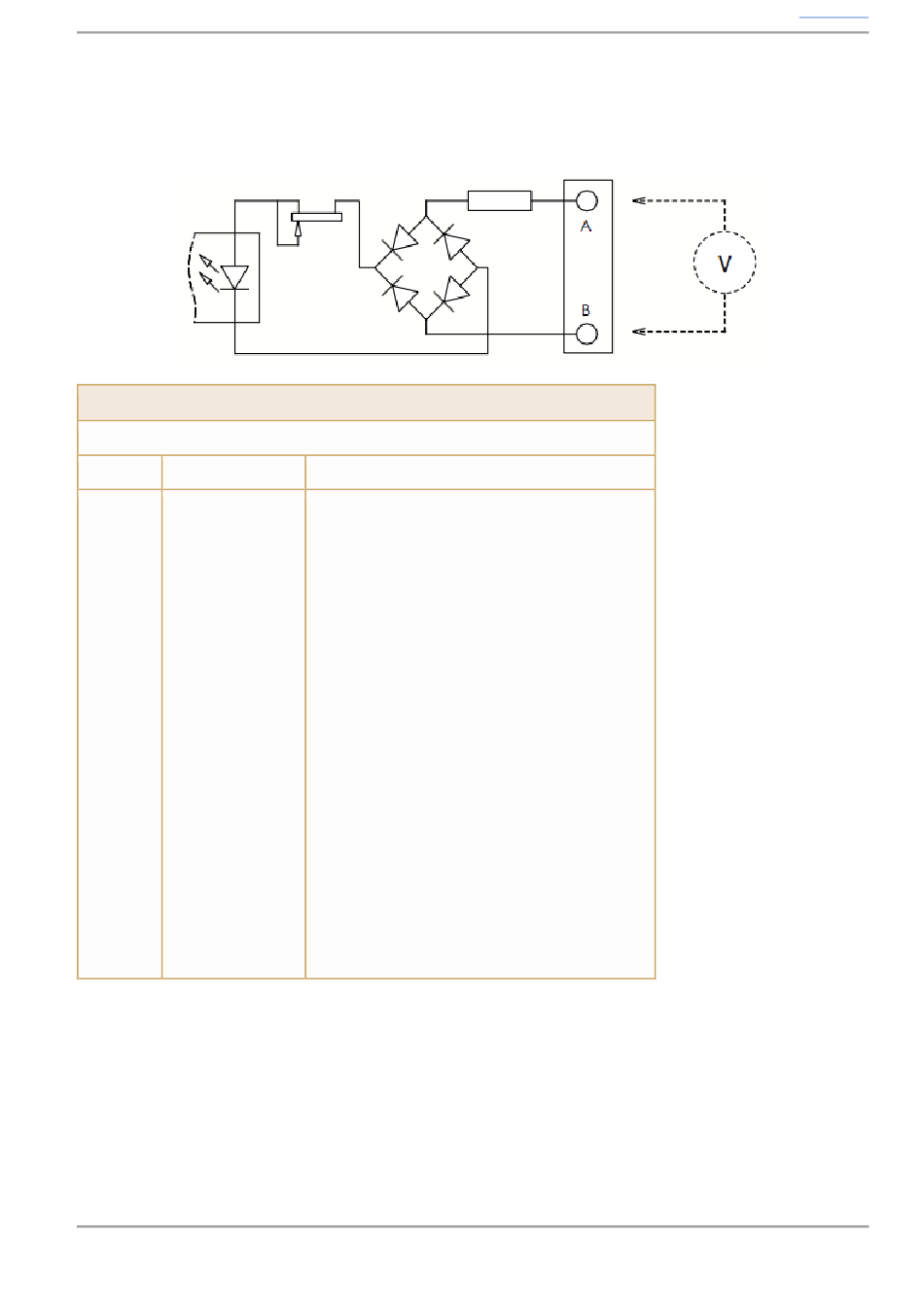

GP Inputs
Inputs are triggered by applying an AC or DC voltage of between 4V and 24V. The current drawn is
approximately 10mA. Minimum input pulse duration 50mS.
GP Inputs
Connector Type:
Pin
Description
1
Input
1A
14
Input
1B
2
Input
2A
15
Input
2B
3
Input
3A
16
Input
3B
4
Input
4A
17
Input
4B
5
Input
5A
18
Input
5B
6
Input
6A
19
Input
6B
7
Input
7A
20
Input
7B
8
Input
8A
21
Input
8B
9
Input
9A
22
Input
9B
10
Input
10A
23
Input
10B
11
Input
11A
24
Input
11B
12
Input
12A
25
Input
12B
13
0V Common
25-way D-type male
Notes:
See input requirements above
