PL System Clock Source
The core board provides a differential 200MHz PL system clock source for
the reference clock of the DDR4 controller. The crystal oscillator output is
connected to the global clock (MRCC) of PL BANK64. This global clock can be
used to drive the DDR4 controller and user logic circuits in the FPGA. The
schematic diagram of this clock source is shown in Figure 6-4
Clock pin assignment:
Signal Name
PL_CLK0_P
PL_CLK0_N

Part 7: LED

There is a red power indicator (PWR) and a configuration LED (DONE) on
the ACU4EV core board. When the core board is powered on, the power
indicator will light up; after the FPGA configuration program, the configuration
LED light will light up. The LED Schematic in the Core Board is shown in Figure
7-1:
19 / 30
ZYNQ Ultrascale + FPGA Core Board ACU4EV User Manual

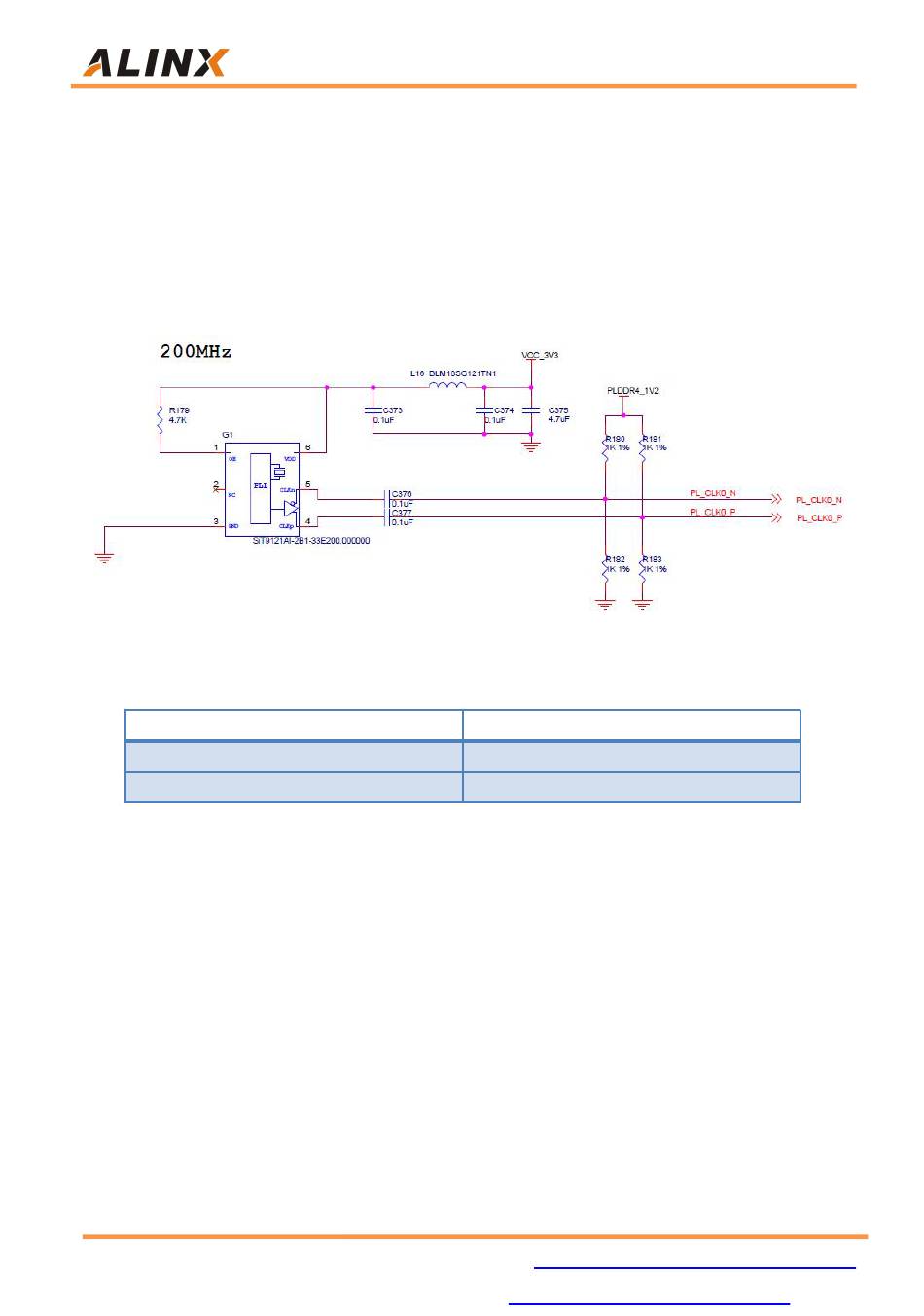

Figure 6-4: PL system clock source
Amazon Store:
Sales Email:
Pin
AE5
AF5
