SECTION 3

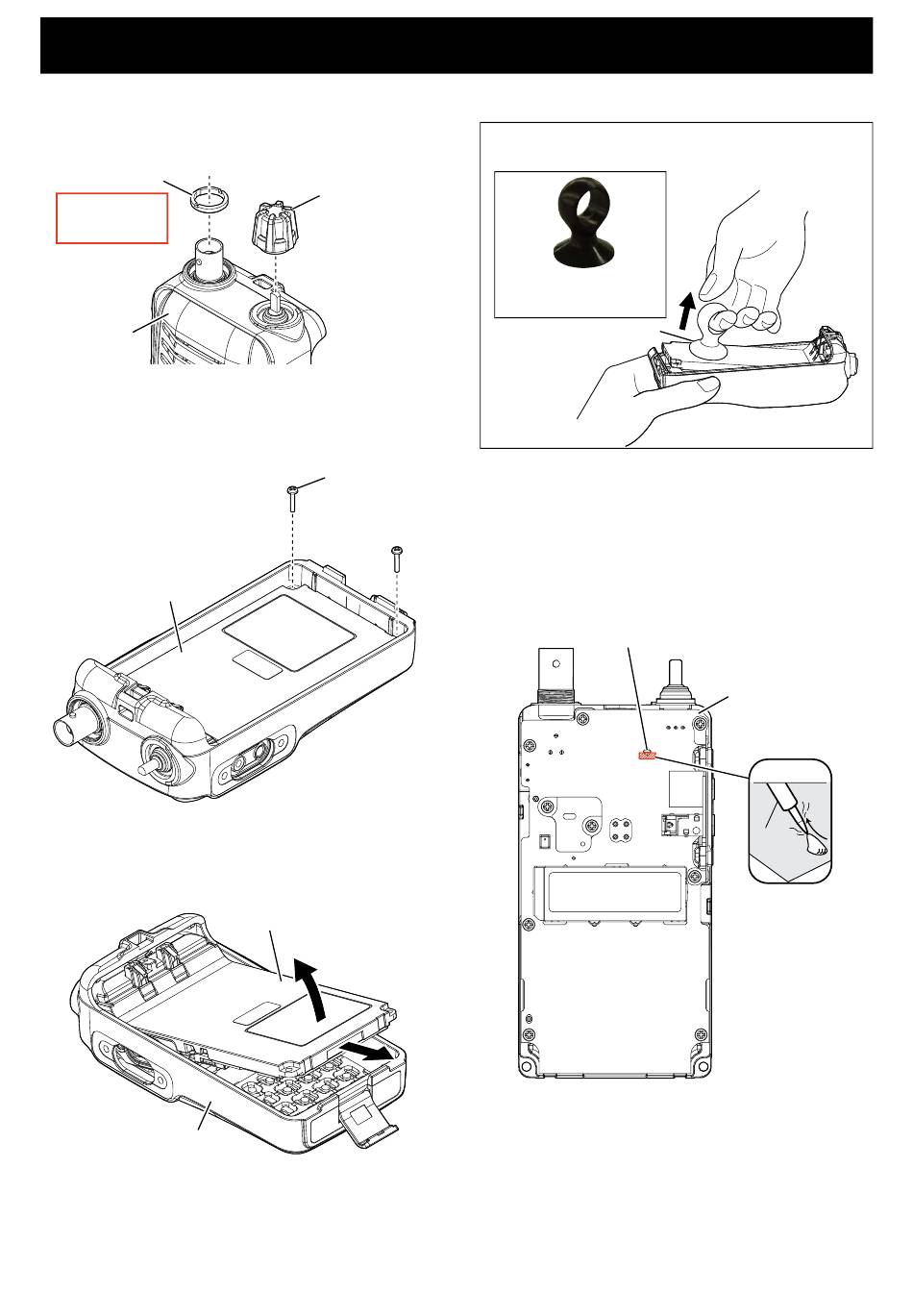

1. REMOVING THE FRONT PANEL
1) Remove the volume knob and antenna nut from the top
of the front panel.
Antenna nut
Remove with;
"ICOM Driver (K)"
(8960000113)
Front panel
2) Remove the 2 screws from the bottom of the chassis.
Chassis
3) Remove the chassis from the front panel.
Front panel

DISASSEMBLY INSTRUCTIONS

Volume knob
Screws ×2
Chassis
For easy separation of the CHASSIS
Use a suction lifter to lift the bottom of the CHASSIS up.
Suction lifter
• Part name: EA950R-2
• Manufacture: ESCO CO.LTD
Suction lifter
2. REMOVING THE MAIN UNIT
1) Unsolder a point at the plus terminal.
Plus terminal
3-1
MAIN UNIT
UNSOLDER
Solder
remover
