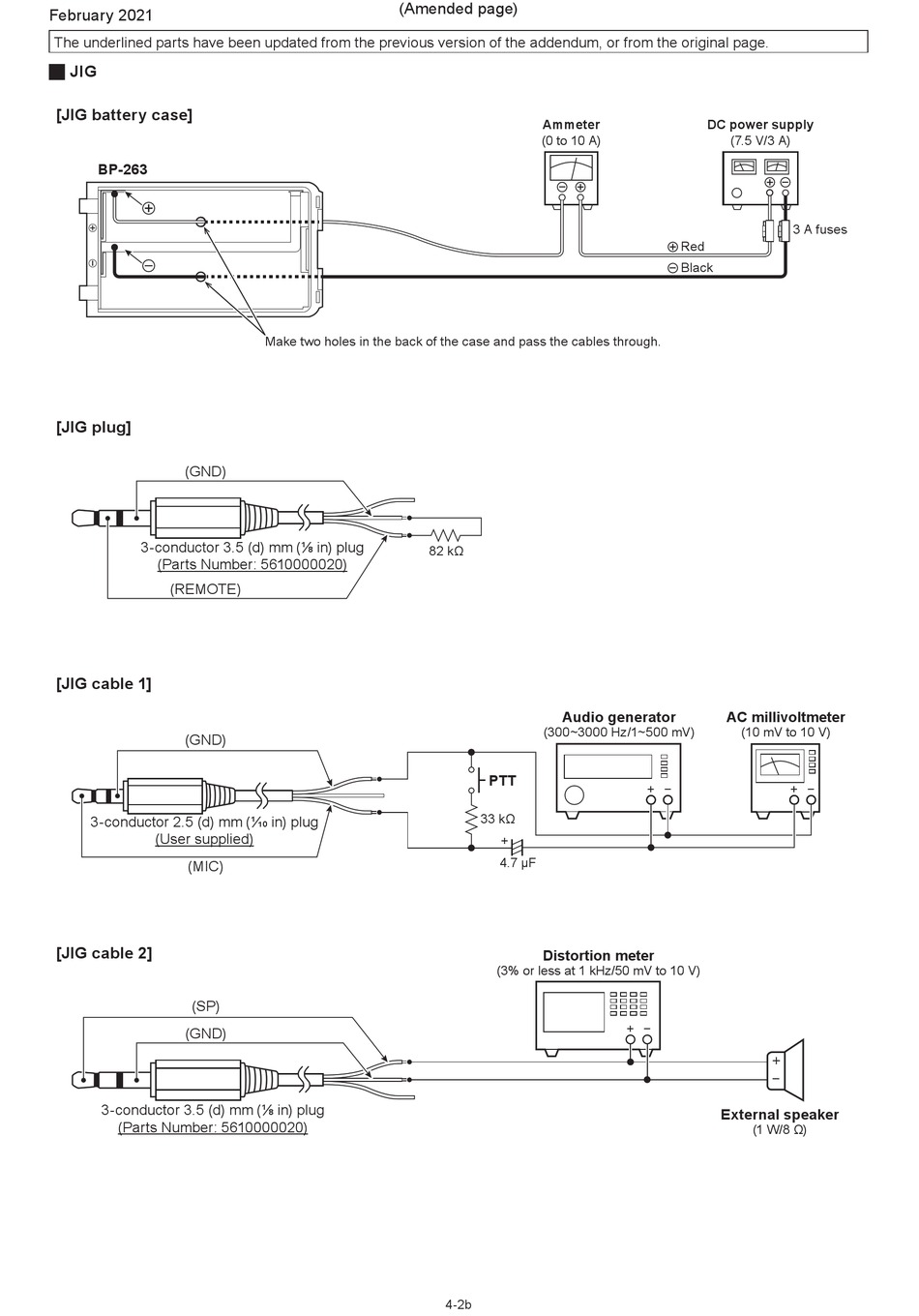

Icom iV86 Service Manual Addendum page 3

February 2021
The underlined parts have been updated from the previous version of the addendum, or from the original page.
 JIG
[JIG battery case]
BP-263
[JIG plug]
(GND)
3-conductor 3.5 (d) mm (¹⁄8 in) plug
(Parts Number: 5610000020)
(REMOTE)
[JIG cable 1]
(GND)
3-conductor 2.5 (d) mm (¹⁄10 in) plug
(User supplied)
(MIC)
[JIG cable 2]
(SP)
(GND)
3-conductor 3.5 (d) mm (¹⁄8 in) plug
(Parts Number: 5610000020)
(Amended page)
Make two holes in the back of the case and pass the cables through.
82 kΩ
Ammeter
(0 to 10 A)
Audio generator
(300~3000 Hz/1~500 mV)
PTT
33 kΩ
+
4.7 µF
Distortion meter
(3% or less at 1 kHz/50 mV to 10 V)
4-2b
DC power supply
(7.5 V/3 A)
3 A fuses
Red
Black
AC millivoltmeter
(10 mV to 10 V)
+ − + −
+ −
+
−
External speaker
(1 W/8 Ω)
