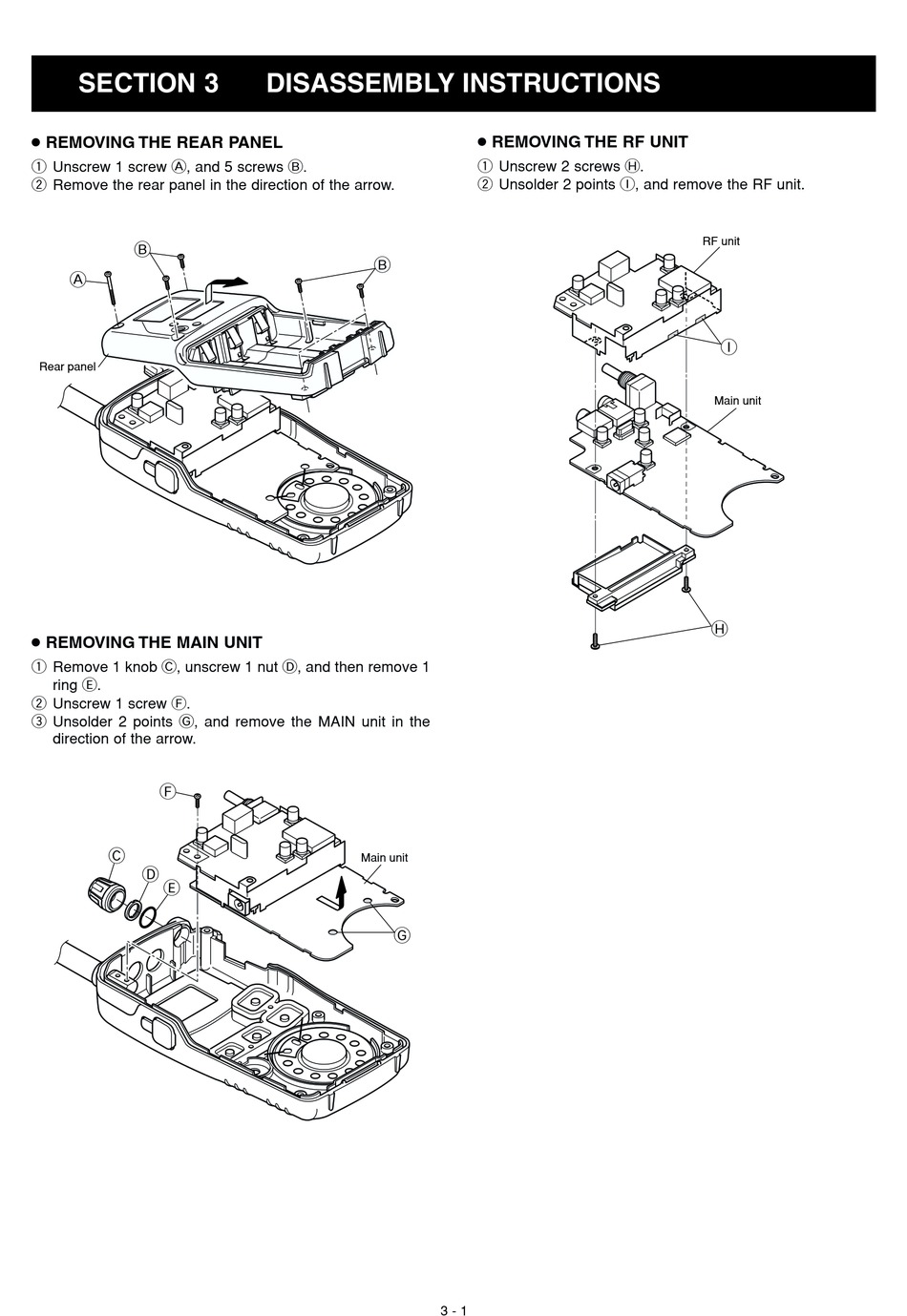

SECTION 3
•
REMOVING THE REAR PANEL
1 Unscrew 1 screw A, and 5 screws B.
2 Remove the rear panel in the direction of the arrow.
B
A
Rear panel
•
REMOVING THE MAIN UNIT
1 Remove 1 knob C, unscrew 1 nut D, and then remove 1
ring E.
2 Unscrew 1 screw F.
3 Unsolder 2 points G, and remove the MAIN unit in the
direction of the arrow.
F
C
D
DISASSEMBLY INSTRUCTIONS
B
Main unit
G
•
REMOVING THE RF UNIT
1 Unscrew 2 screws H.
2 Unsolder 2 points I, and remove the RF unit.
3 - 1
RF unit
I
Main unit
H
