Icom iV86 Service Manual Addendum page 17

(Amended page)
February 2021
SECTION 7 BOARD LAYOUTS

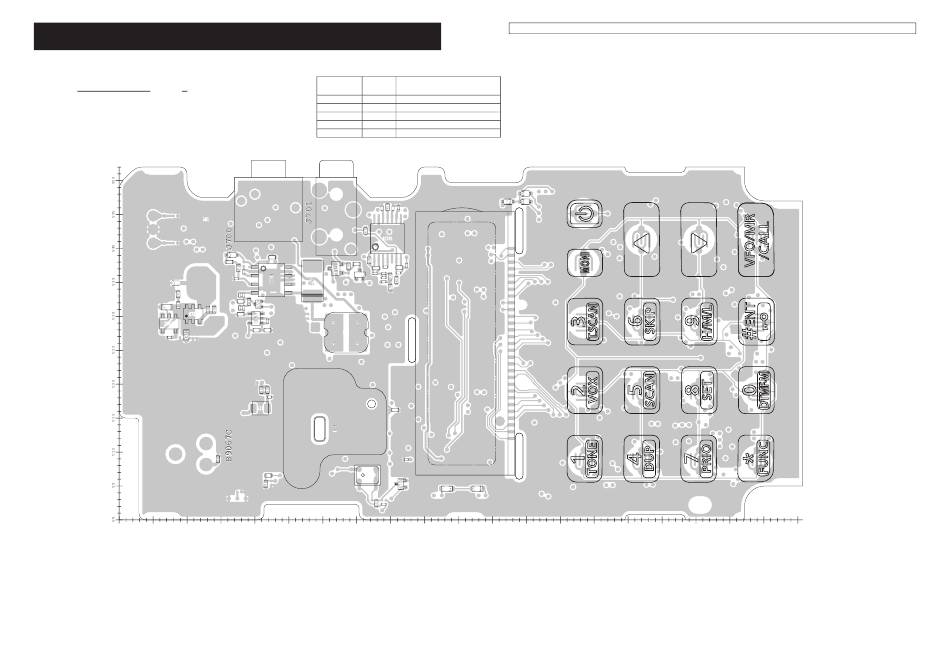

• MAIN/MAIN-A UNIT (B-9067C: TOP VIEW)
LM1 LM1
D700 D700
C792 C792
Q722 Q722
IC818 IC818
C768 C768
H0 H0 H5 H5 H10 H10
NOTE: Some parts may not be mounted on the PCB.
The serial numbers of transceivers that use the PCB (B-9067C).
Version
Model Name
Number
IC-V86 #11
IC-V86 #12
IC-V86 #13
IC-V86-T #31
IC-G86 #41
[MIC] [SP]
IC701 IC701
D708 D708
R729 R729
R752 R752
R781 R781
C745 C745
R789 R789
Q718 Q718 C806 C806 C809 C809
C799 C799
C753 C753
C807 C807
R810 R810
R805 R805
R797 R797 R798 R798
MP4 MP4
C79 C79
L11 L11
C124 C124
MC700 MC700
R1 R1
C724 C724
H15 H15 H20 H20 H25 H25 H30 H30 H35 H35 H40 H40
The underlined parts have been updated from the previous version of the addendum, or from the original page.
Serial Numbers
11027101 and above (Plan)
12006101 and above (Plan)
13004801 and above (Plan)
31004701 and above (Plan)
41008201 and above
D406 D406
D405 D405 D407 D407
MP8
R734 R734
C741 C741
DS400
C25 C25
DS402 DS402 DS401 DS401
H45 H45 H50 H50 H55 H55 H60 H60 H65 H65
7-1b
H70 H70 H75 H75 H80 H80 H85 H85 H90 H90 H95 H95
See the PARTS LIST H/V location on the PARTS LIST for location details.
H100 H100
