SECTION 3

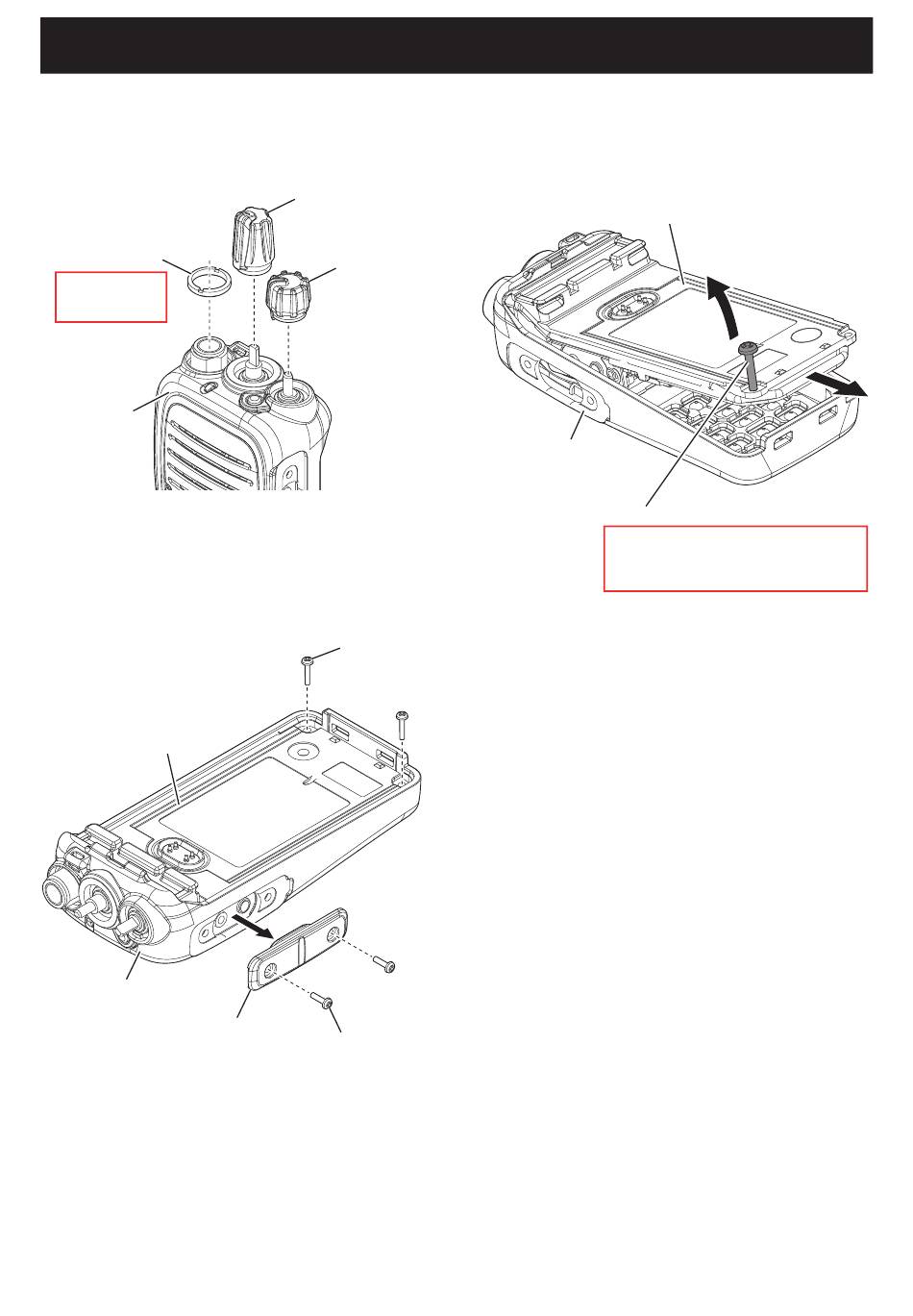

1. REMOVING THE FRONT PANEL
1) Remove the dial knob, volume knob and antenna nut
from the top of the front panel.
Antenna nut
Remove with;
"ICOM Driver (K)"
(8960000113)
Front panel
2) Remove the 2 screws from the bottom of chassis.
Remove the 2 screws from the jack cover, and then
remove the jack cover from the front panel.
Chassis
Front panel
Jack cover

DISASSEMBLY INSTRUCTIONS

Dial knob
Volume knob
Screws ×2
Screws ×2
3) Screw just the end the M3 screw into the screw hole in
the chassis, and then remove the chassis from the front
panel.
Front panel
M3 screw (screw thread pitch: 0.5 mm)
The M3 screws are commercially available.
When ordering parts, the following parts
are recommended.
"PH M3 ×16 SUS" (8810000620)
3-1
Chassis
