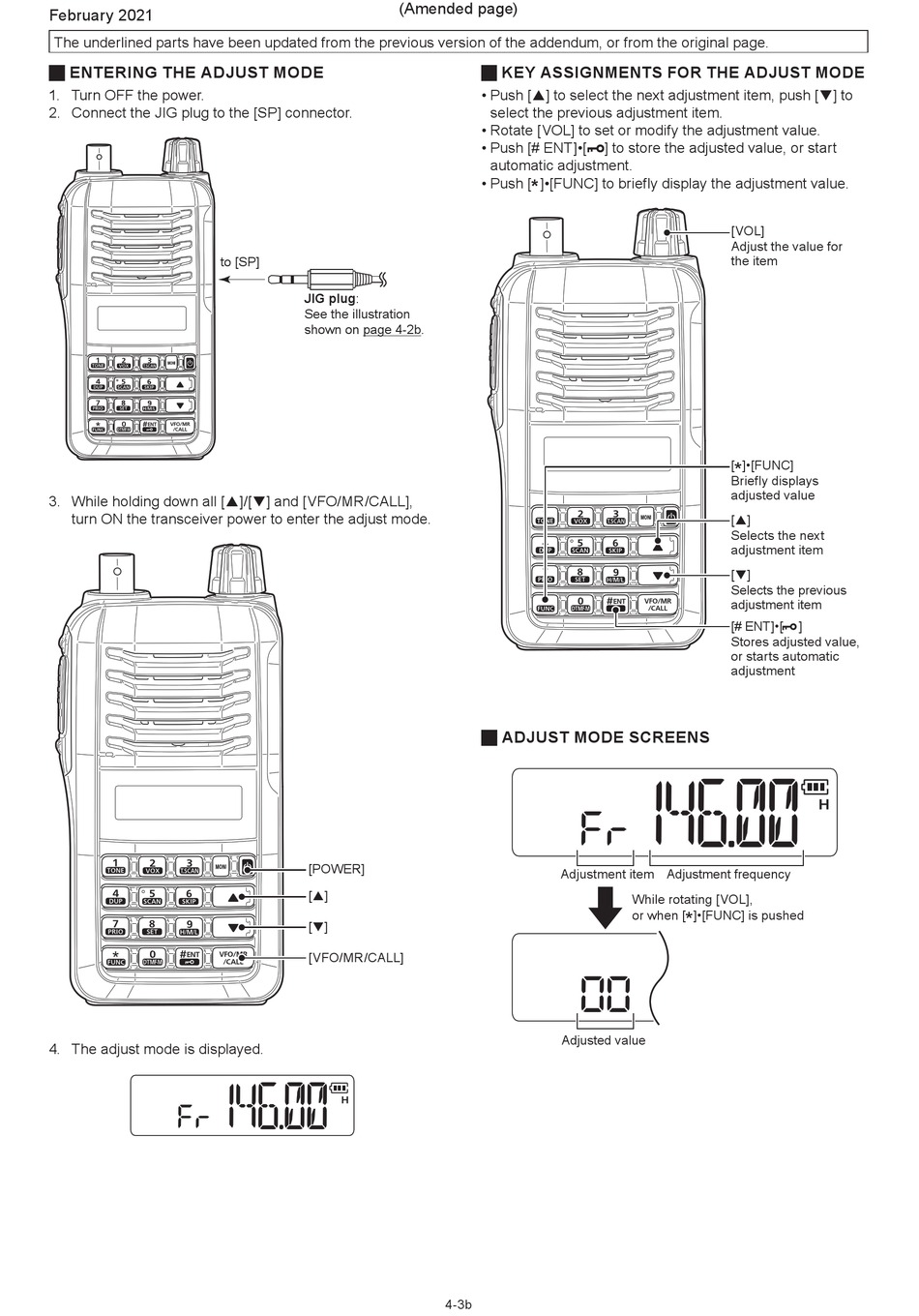

Icom iV86 Service Manual Addendum page 4

February 2021
The underlined parts have been updated from the previous version of the addendum, or from the original page.
 ENTERING THE ADJUST MODE
1. Turn OFF the power.
2. Connect the JIG plug to the [SP] connector.
to [SP]
3. While holding down all [▲]/[▼] and [VFO/MR/CALL],
turn ON the transceiver power to enter the adjust mode.
4. The adjust mode is displayed.
(Amended page)
JIG plug:
See the illustration
shown on page 4-2b.
[POWER]
[▲]
[▼]
[VFO/MR/CALL]
4-3b
 KEY ASSIGNMENTS FOR THE ADJUST MODE
• Push [▲] to select the next adjustment item, push [▼] to
select the previous adjustment item.
• Rotate [VOL] to set or modify the adjustment value.
• Push [# ENT]•[ ] to store the adjusted value, or start
automatic adjustment.
• Push [ ]•[FUNC] to briefly display the adjustment value.
*
 ADJUST MODE SCREENS
Adjustment item
While rotating [VOL],
or when [
Adjusted value
[VOL]
Adjust the value for
the item
[ ]•[FUNC]
*
Briefly displays
adjusted value
[▲]
Selects the next
adjustment item
[▼]
Selects the previous
adjustment item
[# ENT]•[ ]
Stores adjusted value,
or starts automatic
adjustment
Adjustment frequency
]•[FUNC] is pushed
*
