Icom iV86 Service Manual Addendum page 58

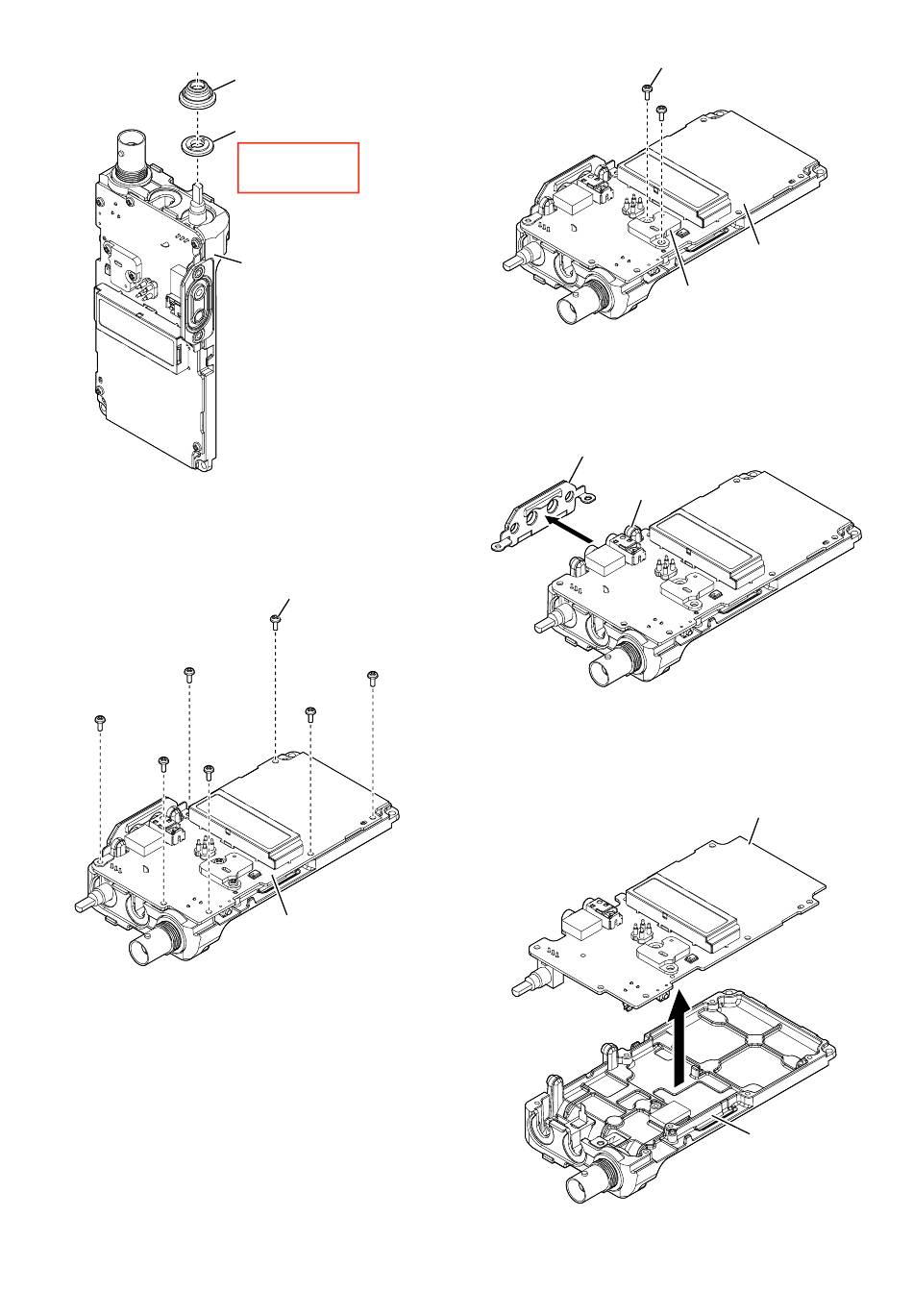

2) Remove the top seal and volume nut from the top of the
chassis.
3) Remove the 7 screws from the MAIN UNIT.
Top seal
Volume nut
Remove with;
"ICOM Driver (AG)"
(8960000561)
Chassis
Screws ×7
MAIN UNIT
4) Remove the 2 screws from the heatsink of MAIN UNIT.
5) Remove the side plate from the chassis.
Side plate
6) Remove the MAIN UNIT from the chassis.
3-2
Screws ×2
MAIN UNIT
Heatsink
Chassis
MAIN UNIT
Chassis
