SECTION 3

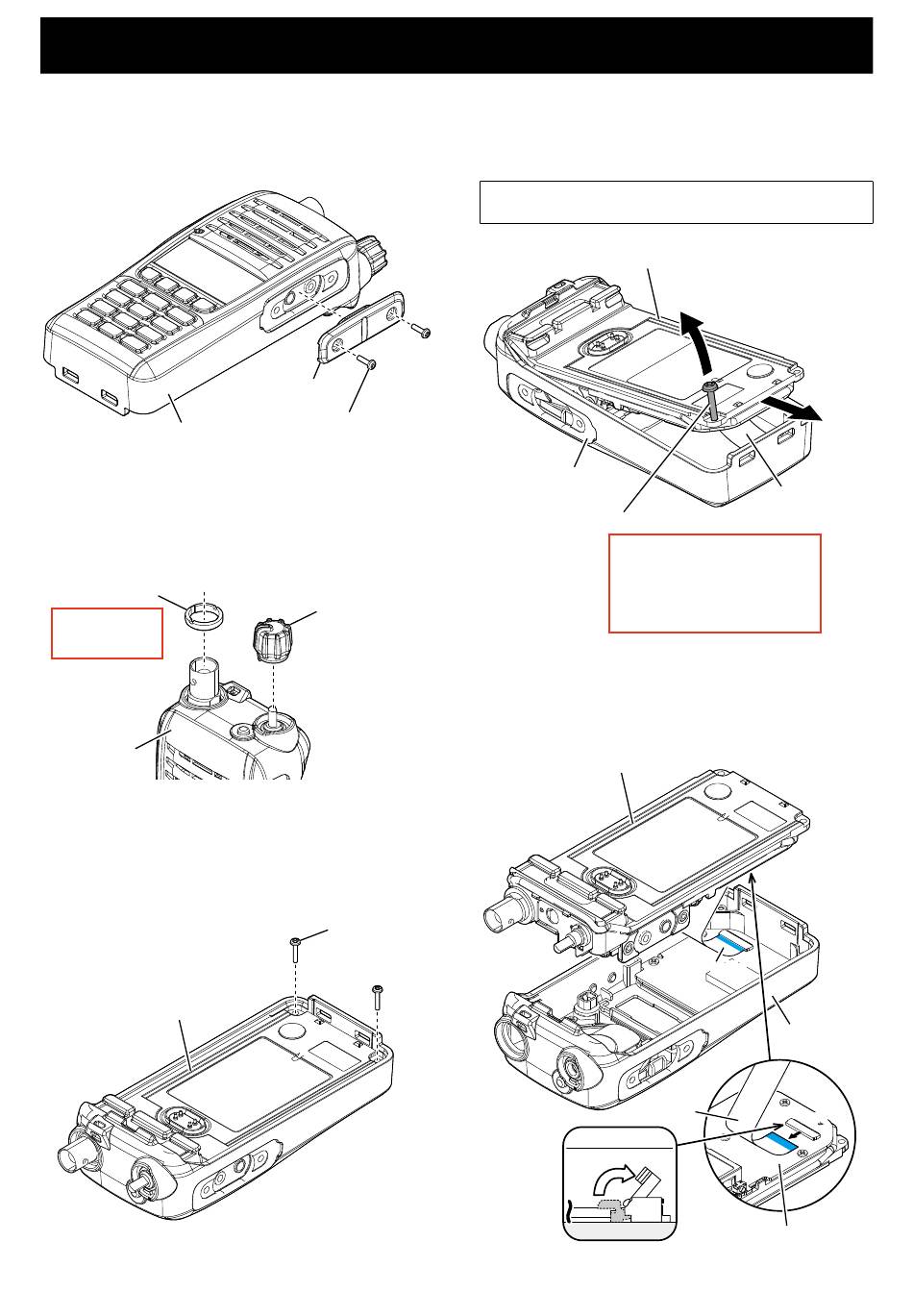

1. REMOVING THE FRONT PANEL
1) Remove the 2 screws from the jack panel ,and then
remove the jack panel from the front panel.
Front panel
2) Remove the volume knob and antenna nut from the top
of the front panel.
Antenna nut
Remove with;
"ICOM Driver (K)"
(8960000113)
Front panel
3) Remove the 2 screws from the bottom of the chassis.
Chassis

DISASSEMBLY INSTRUCTIONS

Jack panel
Screws ×2
Volume knob
Screws ×2
4) Screw just the end the M3 screw into the screw hole in
the chassis, and then remove the chassis from the front
panel.
• BE CAREFUL about the flat cable when removing the
chassis from the front panel.
Chassis
Front panel
M3 screw (screw thread pitch: 0.5 mm)
The M3 screws are commercially
available.
When ordering parts, the following
parts are recommended.
"PH M3×16 SUS"
5) Disconnect the flat cable from the MAIN UNIT.
Chassis
FLAT CABLE
Lift up
flat cable
3-1
Flat cable Flat cable
(8810000620)
Flat cable Flat cable
Front panel
Flat cable
MAIN UNIT
J500
