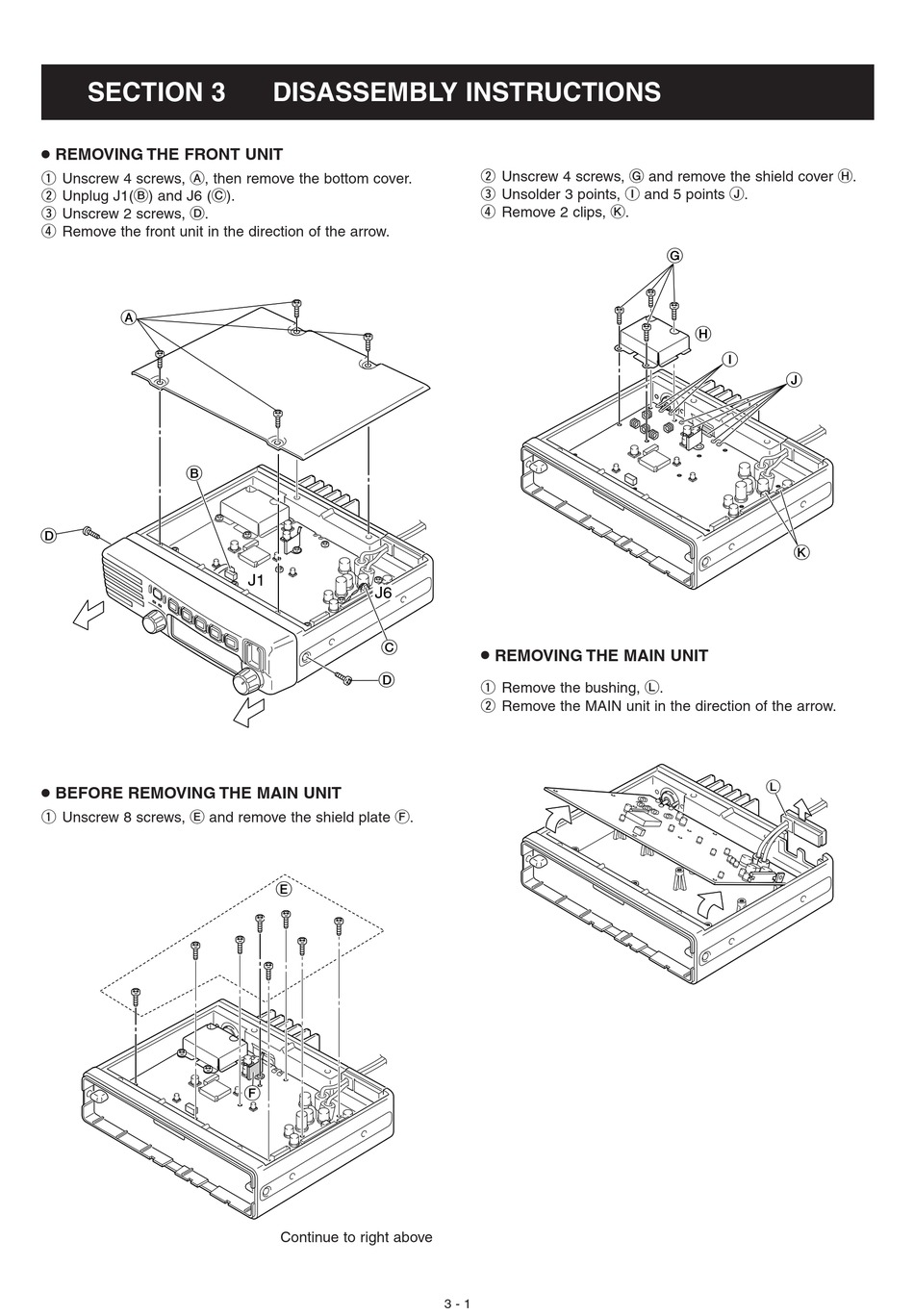

SECTION 3
•
REMOVING THE FRONT UNIT
1 Unscrew 4 screws, A, then remove the bottom cover.
w Unplug J1(B) and J6 (C).
3 Unscrew 2 screws, D.
4 Remove the front unit in the direction of the arrow.
A
B
D
•
BEFORE REMOVING THE MAIN UNIT
1 Unscrew 8 screws, E and remove the shield plate F.
DISASSEMBLY INSTRUCTIONS
J1
J6
C
D
E
F
Continue to right above
2 Unscrew 4 screws, G and remove the shield cover H.
3 Unsolder 3 points, I and 5 points J.
4 Remove 2 clips, K.
•
REMOVING THE MAIN UNIT
1 Remove the bushing, L.
w Remove the MAIN unit in the direction of the arrow.
3 - 1
G
H
I
J
K
L
